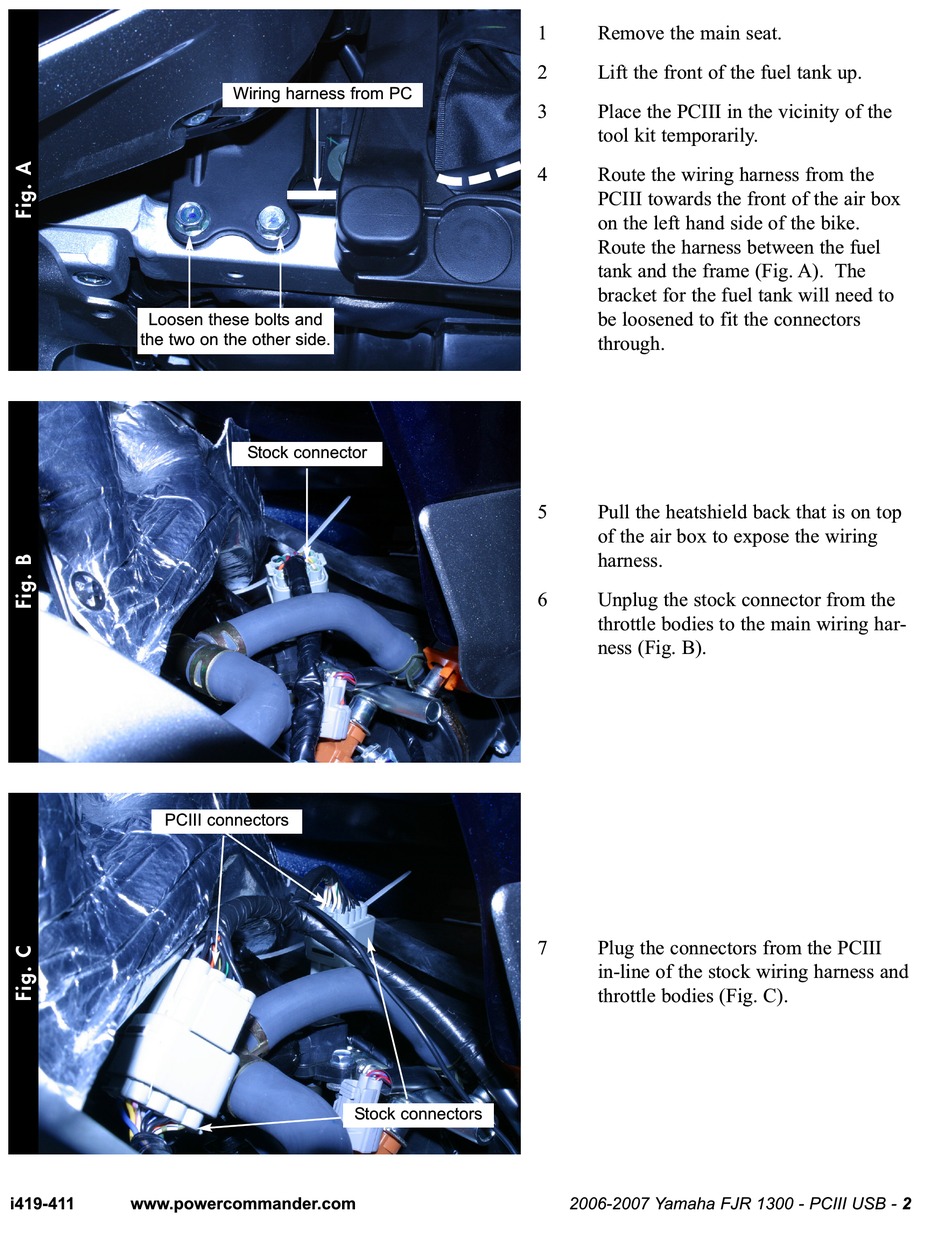

Loosen these bolts and
the two on the other side.
PCIII connectors
i419-411
www.powercommander.com
Wiring harness from PC
Stock connector
Stock connectors
1
Remove the main seat.
2
Lift the front of the fuel tank up.
3
Place the PCIII in the vicinity of the
tool kit temporarily.
4
Route the wiring harness from the
PCIII towards the front of the air box
on the left hand side of the bike.
Route the harness between the fuel
tank and the frame (Fig. A).
bracket for the fuel tank will need to
be loosened to fit the connectors
through.
5
Pull the heatshield back that is on top
of the air box to expose the wiring
harness.
6
Unplug the stock connector from the
throttle bodies to the main wiring har-
ness (Fig. B).
7
Plug the connectors from the PCIII
in-line of the stock wiring harness and
throttle bodies (Fig. C).
2006-2007 Yamaha FJR 1300 - PCIII USB - 2
The
