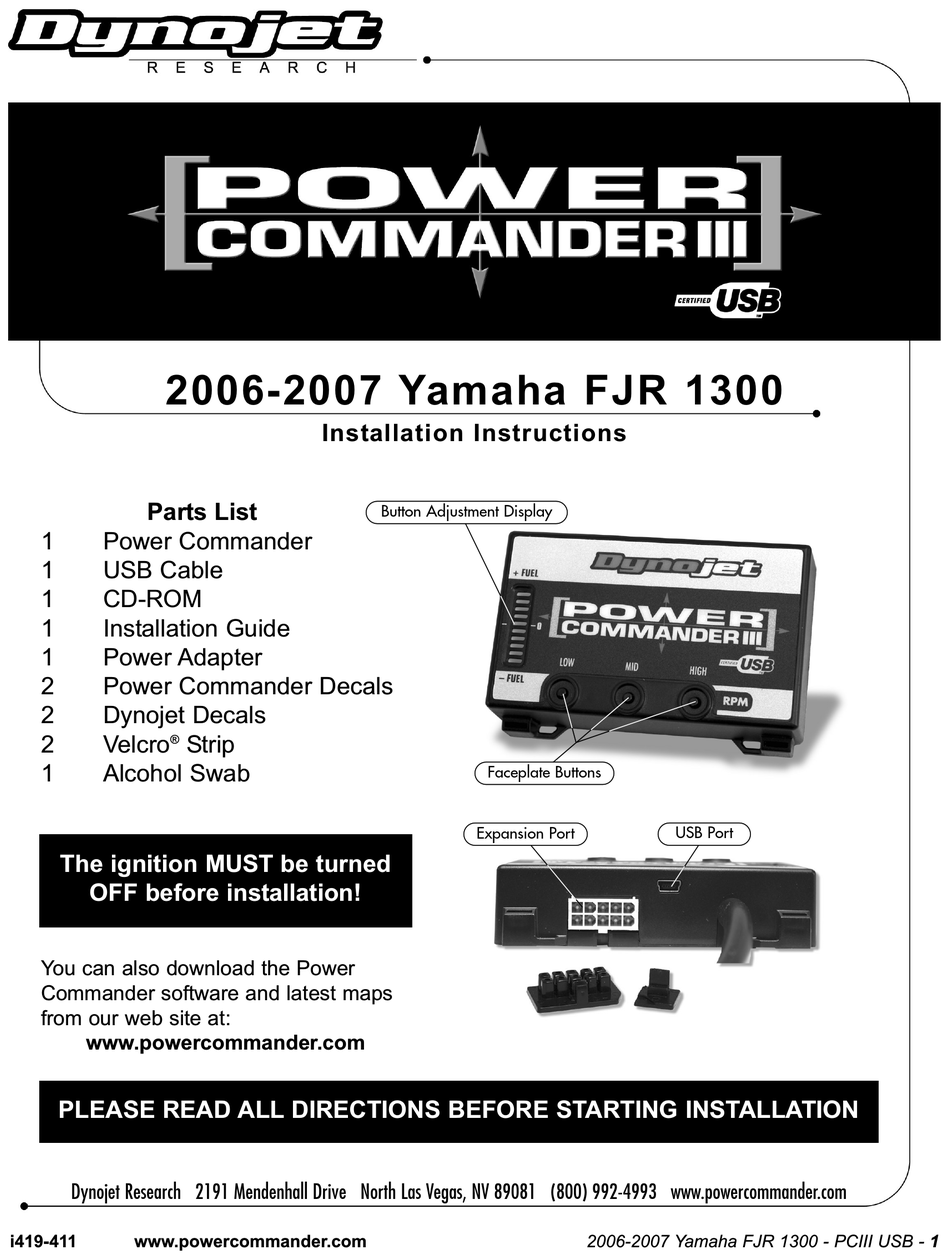

2 0 0 6 - 2 0 0 7 Ya m a h a F J R 1 3 0 0
Parts List
1
Power Commander
1
USB Cable
1
CD-ROM
1
Installation Guide
1
Power Adapter
2
Power Commander Decals
2
Dynojet Decals
2
Velcro
Strip
®
1
Alcohol Swab
The ignition MUST be turned
OFF before installation!
You can also download the Power
Commander software and latest maps
from our web site at:
www.powercommander.com
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com
i419-411
www.powercommander.com
I n s ta l l a t i o n I n s t r u c t i o n s

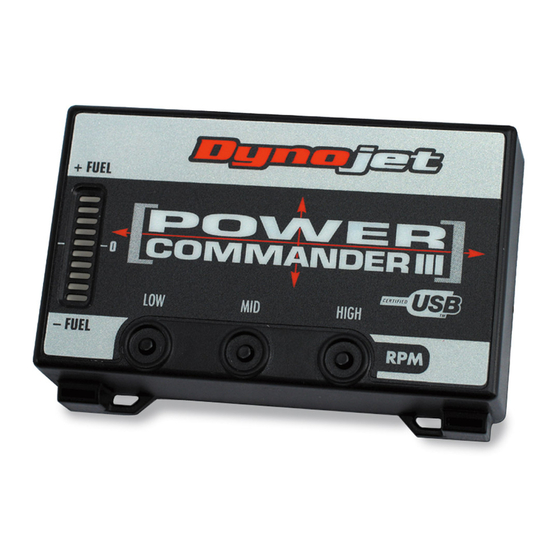

Button Adjustment Display
Faceplate Buttons
Expansion Port
USB Port
2006-2007 Yamaha FJR 1300 - PCIII USB - 1
Advertisement
Table of Contents
Related Manuals for Dynojet Power Commander III
Summary of Contents for Dynojet Power Commander III
- Page 1 Commander software and latest maps from our web site at: www.powercommander.com PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com i419-411 www.powercommander.com 2006-2007 Yamaha FJR 1300 - PCIII USB - 1...
- Page 2 Remove the main seat. Lift the front of the fuel tank up. Wiring harness from PC Place the PCIII in the vicinity of the tool kit temporarily. Route the wiring harness from the PCIII towards the front of the air box on the left hand side of the bike.
- Page 3 Route the ground wire to the right hand side of the throttle bodies. Route the ground wire under the frame cross member and above the radiator. Attach the ground wire to the negative side of the battery (Fig. D). Ground wire from PCIII Install the PCIII in the tool kit tray (Fig.
