Dynojet Power Commander III Installation Instructions

For ducati 848 2008
Hide thumbs
1
2
3
4
5

Advertisement

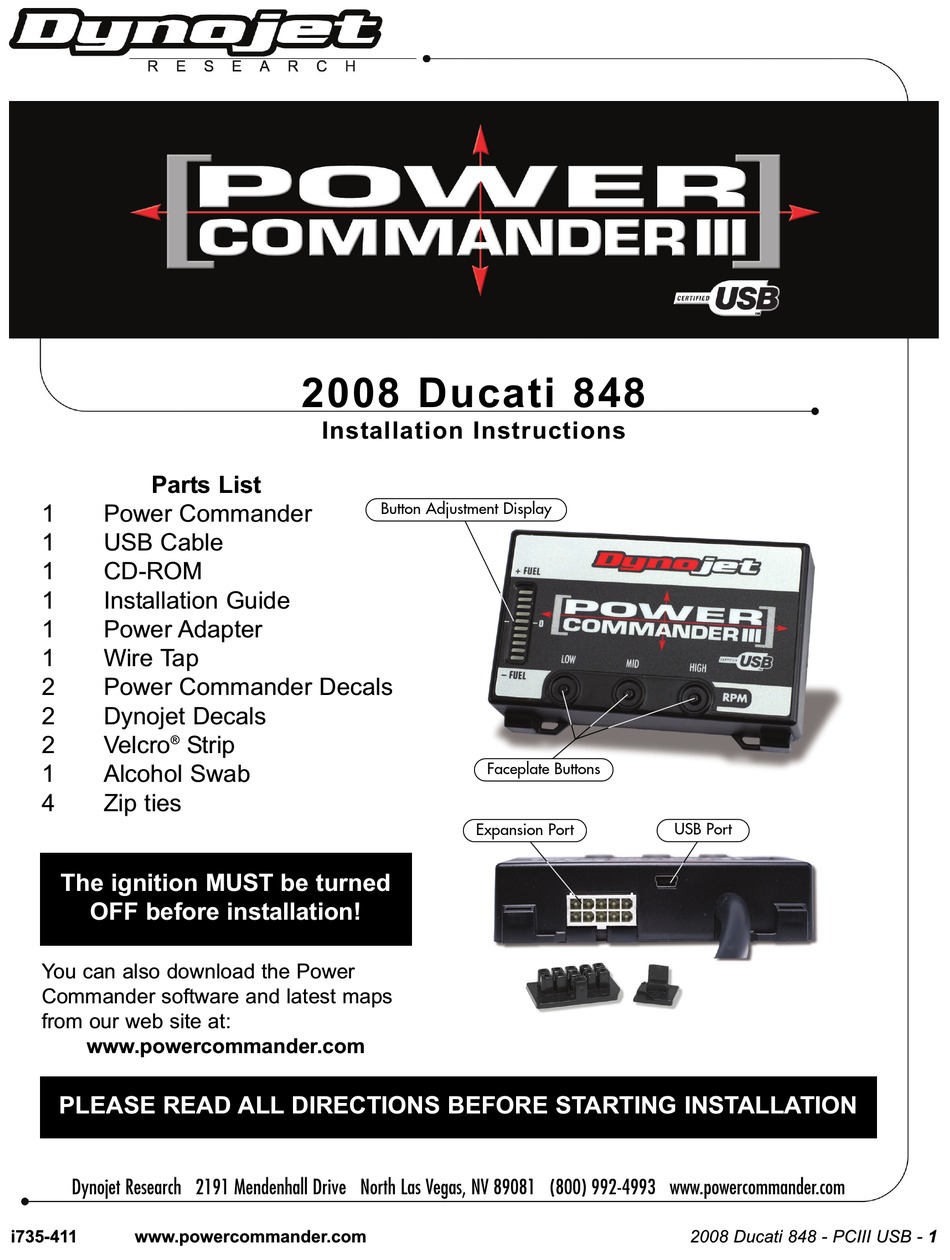

Table of Contents

Parts List

1
Power Commander
1
USB Cable
1
CD-ROM
1
Installation Guide
1
Power Adapter
1
Wire T ap
2
Power Commander Decals
2
Dynojet Decals
2
Velcro
Strip
®
1
Alcohol Swab
4
Zip ties
The ignition MUST be turned
OFF before installation!
You can also download the Power
Commander software and latest maps
from our web site at:
www.powercommander.com
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com
i735-411
www.powercommander.com
2 0 0 8 D u c a t i 8 4 8
I n s ta l l a t i o n I n s t r u c t i o n s

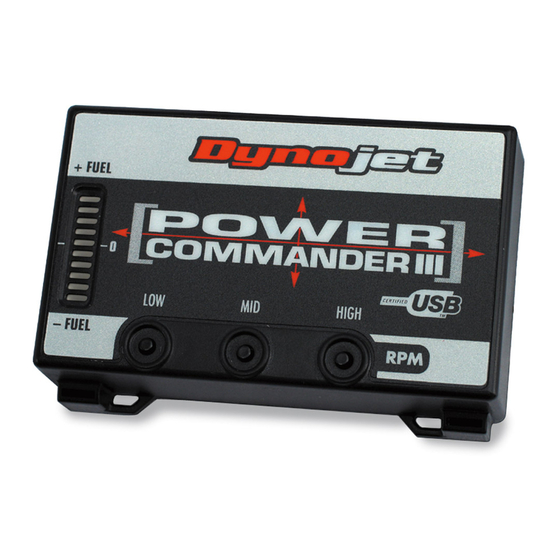

Button Adjustment Display
Expansion Port
Faceplate Buttons
USB Port
2008 Ducati 848 - PCIII USB - 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Power Commander III and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dynojet Power Commander III

Summary of Contents for Dynojet Power Commander III

  • Page 1: Parts List

    Commander software and latest maps from our web site at: www.powercommander.com PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com i735-411 www.powercommander.com 2008 Ducati 848 - PCIII USB - 1...
  • Page 2 Remove the seat and solo cover. Remove the cover around the fuel tank (Fig. A). Remove the fuel tank Remove the inner fairing cover on the right hand side (Fig. B). Lay the PCIII in the tail section tem- porarily. Route the PCIII harness through the PCIII harness hole in the tail section (Fig.
  • Page 3 Unplug the stock wiring harness from the rear injector (Fig. E) This injector is located on top of the air box. To remove the connector you must first remove the spring clip. This is best done with a pick or small screw- driver .
  • Page 4 Plug the ORANGE colored wires from the PCIII in-line of the front injector and stock wiring harness (Fig. H). Remove the right hand fairing. PCIII connector Stock connector Route the PCIII harness along the right hand side frame down tube. the existing wraps to hold the PCIII harness in place (Fig.
  • Page 5 Install the PCIII in the tail section using the supplied velcro. Make sure to clean both surfaces with the alcohol swab before attaching. Reinstall all bodywork and fuel tank. When lowering the fuel tank make sure it does not interfere with the con- nection of the rear injector.
