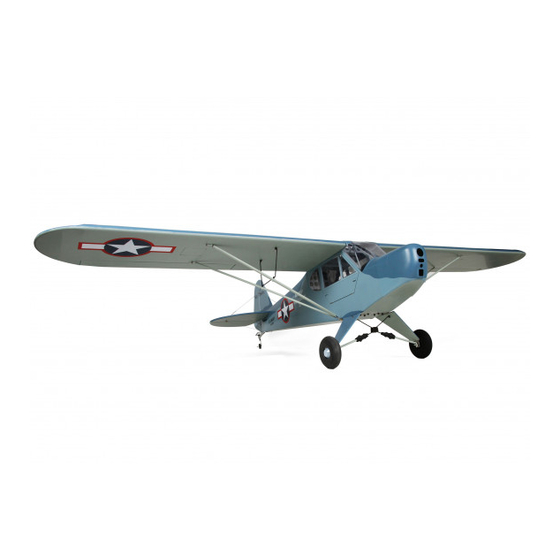

H-KING NE-1 NAVY GUB Instruction Manual

240dmm (94.5") ep/gp (arf)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CUB
240DMM (94.5") EP/GP (ARF)
INSTRUC:TIDN
MANUAL

Advertisement

Table of Contents
loading

Related Manuals for H-KING NE-1 NAVY GUB

Summary of Contents for H-KING NE-1 NAVY GUB

  • Page 1 240DMM (94.5") EP/GP (ARF) INSTRUC:TIDN MANUAL...

  • Page 2: Technische Daten

    TECHNISCHE DATEN & SPECIFICATIONS TECHNISCHE DATEN SPECIFICATIONS Wingspan 2400mm Spannweite 2400mm Length 1510mm Lange 1510mm Electric Motor (See next page) Elektroantrieb (siehe nächste Seite) Glow Engine .91 2T / 1.20 4T Verbrennerantrieb 20cc 2-T Gasoline Engine 20cc 2T Fernsteuerung 6 Kanal / 6 Servos Radio 6 Channel / 6 Servos WARNING &...
  • Page 3 GLUE (Purchase separately) Epoxy Glue (5 minute type) EPOXY A Epoxy-Klebstoff (5min-Typ) Cyanoacrylate SILICON Glue Epoxy Glue (30 minute type) Klebstoff EPOXY B Silicon sealer Epoxy-Klebstoff (30min-Typ) TOLLS REQUIRED (Purchase separately) Hex Wrench Hobby knife Phillips screw driver Needle nose pliers Scissors Wire Cutters Sander...

  • Page 4: Section 1 : Horizontal Stabilizer

    section 1 : HORIZONTAL STABILIZER Pull the elevators out of the horizontal stabilizer. Cut two slots (only in the covering) on the top and along the trailing edge of Cut away the covering on the horizontal stabilizer. both sides as shown to allow the stabilizer to slide through the fuselage Trial fit the horizontal stabilizer and check the alignment.
  • Page 5 section 2 : HORIZONTAL STABILIZER Cut away only the covering Pull the horizontal stabilizer through the other side of on the top and bottom the fuselage and repeat the previous procedures to realign the horizontal stabilizer, then glue the horizontal stabilizer into the fuselage.

  • Page 6: Section 3 : Vertical Stabilizer

    section 3 : VERTICAL STABILIZER Cut away only the covering on the left and right side, once again be careful not to cut into the wood. Remove the vertical stabilizer from the fuselage. Using a sharp hobby knife, carefully cut away the covering inside the lines which were marked above.

  • Page 7: Section 6 : Main Landing Gear

    section 5 : TAIL WHEEL & RUDDER Using 5 min epoxy glue the barbed hinge points into the vertical stabilizer. When the glue has set fit the 2 supplied springs between the rudder steering arm and tail wheel steering arm. Drill 2 x 2mm holes as shown and fit the horizontal stabilizer rigging points using 2 x 10mm screws.
  • Page 8 section 7 : MAIN LANDING GEAR Cut out the inner and outer plastic undercarriage fairings as shown. 3mm plywood Drill where shown above 2 x 3mm holes through the undercarriage leg for fitting the undercarriage plastic fairings. Connector Drill 3mm holes in the inner and outer fairings to match the holes drilled in the undercarriage leg.
  • Page 9 section 8 : MAIN LANDING GEAR Using 12 off 2 x 6mm screws, screw the inner and outer fairings to the plywood that is sandwiched in between. Repeat this whole operation for the 2nd undercarriage leg. 2x6mm screw ..24 section 9 : MAIN LANDING GEAR Assemble the undercarriage suspension parts as per the drawing and slide on the...
  • Page 10 section 10 : MAIN LANDING GEAR Fit the assembled suspension system to the undercarriage legs as shown and secure the wheels using the 4 x 50mm screws and 4mm nuts. 4 x 50mm screw Fit the rubber "O" rings and tension as necessary to achieve the correct amount of springing/suspension.
  • Page 11 section 11 : MAIN LANDING GEAR Rubber “O” ring Slide the heat shrink bungee covers over the "O" ring assembly and shrink with a hot air gun or a lighter. Fit the inner wheel covers to the wheels using the supplied Lighter screws.
  • Page 12 If fitting a gas or glow engine then follow the instructions on this section 12 : ENGINE page, if fitting an electric motor go to page 12. Using a aluminum motor mounting plate as a template, mark the fire-wall where the 4 holes are to be drilled (1). Remove the aluminum motor mounting plate and drill a 5mm hole through the plywood at each of the 4 marks (2).
  • Page 13 section 13 : ELECTRIC MOTOR and COWLING Using a aluminum motor mounting plate as a template, mark the fire-wall where the 4 holes are to be drilled (1). Remove the aluminum motor mounting plate and drill a 5mm hole through the plywood at each of the 4 marks (2).
  • Page 14 section 14 : COWLING Trim the dummy cylinder cooling ducts to shape and fit to the cylinders using 2 x 6mm screws. 2x6mm screw Drill 7mm holes into the underneath of the cylinders to take the dummy exhaust manifolds. black rubber tube metal wire Black rubber tube with metal wire inside Glue into place the dummy...

  • Page 15: Fuel Tank

    section 15 : COWLING 4 - 6mm The front of the cowling Cowl assembly when fitting a gas should be 4-6mm back or glow engine. from the face of the prop driver. 1.5mm 2.mm Drill 5 x 2mm holes in the cowling for the fixing screws.
  • Page 16 section 16 : SERVO & LINKAGES Install the servos in the positions shown, the throttle servo only being used if using a gas or glow engine. Make up the rudder closed loop Elevator Servo (1) (3) system as shown from the parts supplied.
  • Page 17 section 17 : PILOT SEATS Fit and glue into place the rudder closed loop exit fairings. If using a throttle servo them make up the throttle pushrod from the servo to the carburetor throttle lever. Fit the 2 pilots seats into the slots inside the fuselage.
  • Page 18 section 19 : AILERON SERVO & LINKAGE Drill holes for the aileron control horns and fit using the 2 x 30mm screws. Make up the aileron pushrods as per diagram. Aileron servo and hatch Aileron servo and hatch RIGHT LEFT Aileron control horn Aileron servo hatch 2X30mm...

  • Page 19: Section 21 : Wing Installation

    section 21 : WING INSTALLATION Aluminum tube Slide the aluminum tube into the fuselage as shown. Carefully push one wing half onto the wing tube up to the fuselage, feed the aileron servo lead through into the radio compartment. Do the same way with the other wing half.
  • Page 20 section 22: WING BRACE Assemble and fit the wing struts as shown in the diagram. Using CA glue, glue the rigging points into the vertical and horizontal stabilizers. Stabilizer...
  • Page 21 section 23 : CABLE WIRE Make up, fit and tension the rigging wires using the parts supplied. 0.7mm dia. Cable ...1 roll 2mm metal tube ....4 Aluminum tube ..2 ..2 cable section 24 : BALANCE & CONTROL SURFACE Aileron Suggested control throws. 20mm 50mm Rudder...
