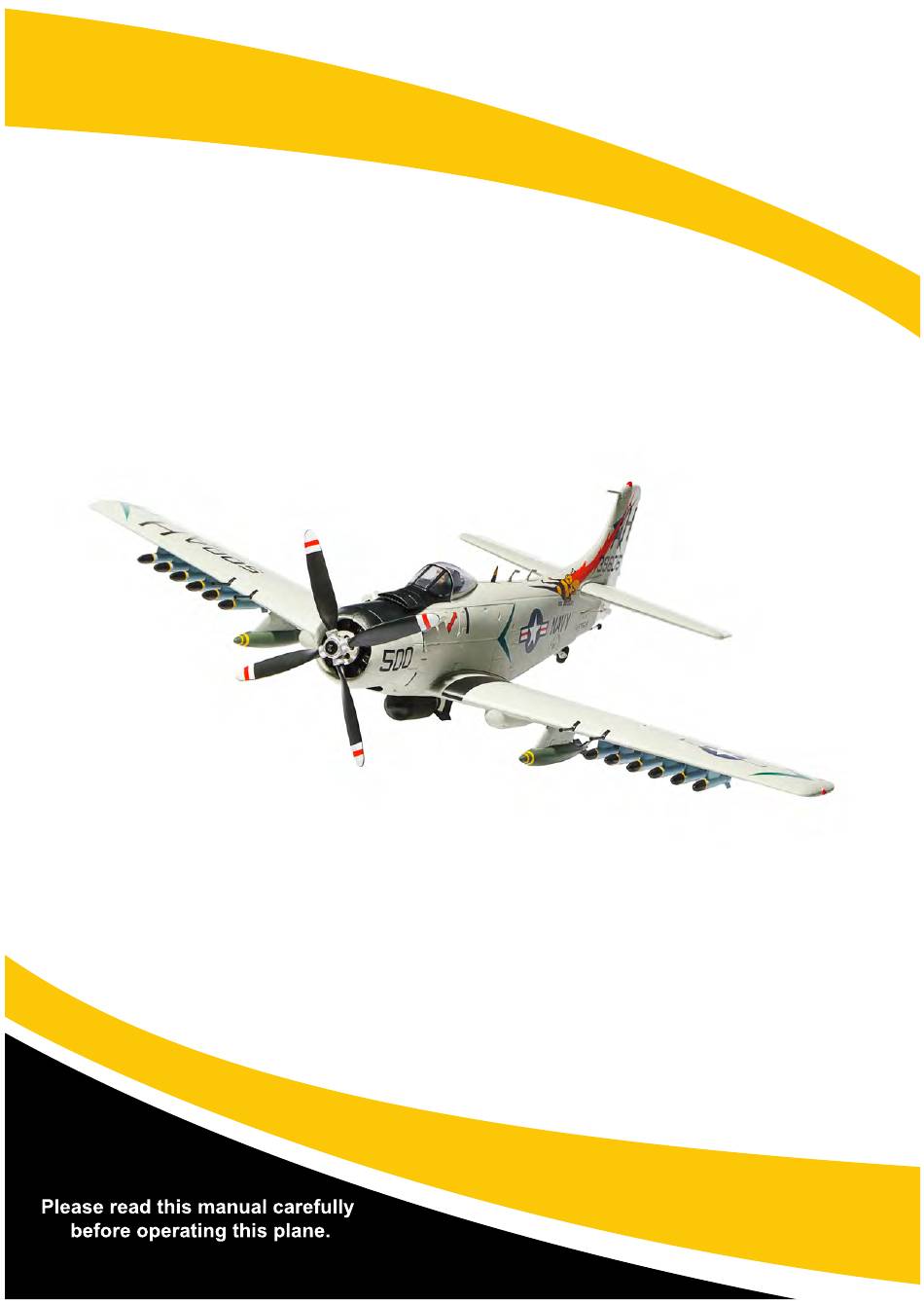

- Page 1 H-KING A-1 SKYRAIDER INSTRUCTION MANUAL...

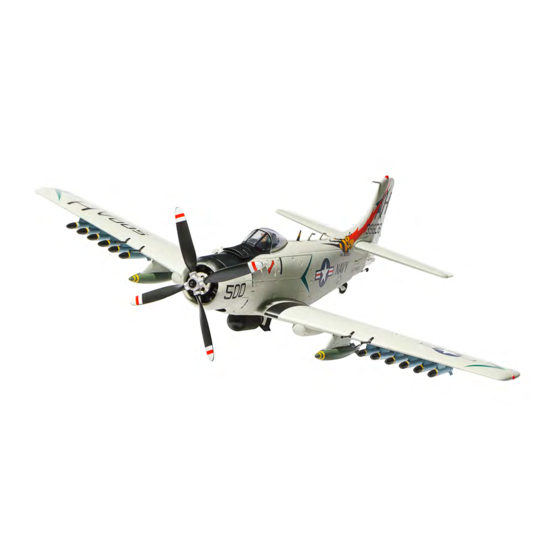

- Page 2 H-KING H-KING A-1 Sky Raider The H-King A-1 Skyraider PnF is a realistic flying model of the original plane. It is made of strong EPO foam and is electric-powered which makes it ideal as a park flier. The 800mm wingspan size of the plane will allow you to easily transport it in your car without removing the wings.
-
Page 3: Specifications
H-KING SPECIFICATIONS: Wingspan: 800mm Length: 630mm Flying weight: 455g Motor: EMT-1200KV brushless outrunner ESC: 20A Brushless Gyro: Intelligent 6-axis with 2 flight modes (beginner and advanced) Servo: 9g x 4pcs Propeller: 8x6 four blade REQUIRES: 1 x 6CH or more transmitter and receiver... -
Page 4: Contents Of Kit
H-KING CONTENTS OF KIT • Fuselage with pre-installed motor, propeller, ESC and servos • Main wing with pre-installed servos • Horizontal stabilizer • Main landing gear • 1 x Bomb • 12 x Guided missiles • 2 x Auxiliary oil tanks... -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS 1. Please read this manual carefully and follow the instructions before you use this product. 2. This airplane is not a toy but due to having installed the ORX stabilization system it is suitable for pilots with low experience. However, if you do fall into this category then we recommend you enlist the help of an experienced R/C pilot to give you a hand with the initial flights. - Page 6 H-KING ASSEMBLY. 1. Insert the main landing gear into the slots in the wing and secure using the 2 x 8mm self tapping screws provided. 2. Slide the horizontal stabilizer through the slot in the rear of the fuselage. Check that it is central then carefully glue into place...
- Page 7 H-KING 3. Connect the elevator pushrod clevis to the outer hole in the elevator control horn. Please ensure the safety keeper is slid into place after connecting. 4. Connect the aileron servo leads to the Y lead in the fuselage then attach...
- Page 8 H-KING 5. Unpack the guided missiles and the auxiliary oil tanks. Please note that the auxiliary oil tanks are handed, they are marked "L" and "R" so please attach to the correct wing. 6. Glue the guided missiles and the auxiliary oil tanks to the wing using a medium CA glue into the indents in the wing.
- Page 9 H-KING 7. Using a medium CA glue attach the 4 cannons to the slots in the leading edge of the wings The assembly of your A-1 Sky Raider is now complete.
- Page 10 H-KING Center of Gravity: This is between 55-62mm from the wing leading edge. For initial flights have the C of G nearer the forward mark to improve the stability in pitch. As you get used to the model you can move it back a little to make it more aerobatic if you wish.
- Page 11 We hope you enjoy flying your H-KING A-1 Sky Raider and if you haven't already tried out the others in our range then we recommend you visit our website at www.hobbyking.com and take a look at our...
- Page 12 H-KING ACCESSORIES Turnigy nano-tech 850mah 3S Turnigy 800mAh 3S 25~40C Lipo Pack 20C Lipo Pack SKU: N850.3S.25 SKU: T800.3S.20 ZIPPY Flightmax 800mAh 3S1P Turnigy Nano-Tech 850mAh 3S 20C Lipo Pack 30C Lipo Pack SKU: Z8003S20C SKU: 9210000273-0...
- Page 13 H-KING � CE :a l, MADE IN CHINA • .,...
