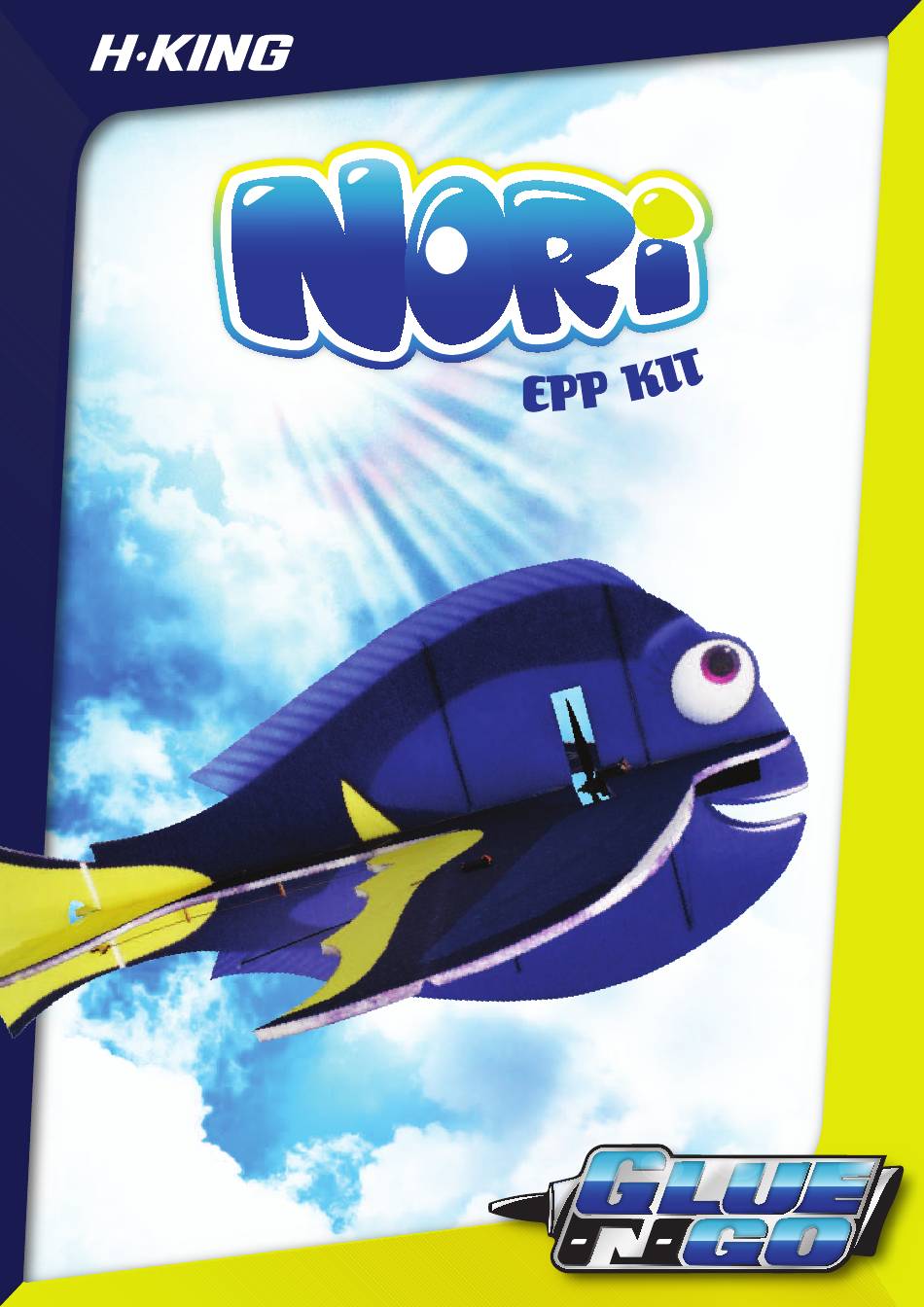

- Page 1 INST RUC TI O N M A NU AL...
-
Page 3: Packing List
Packing list: 1: EPP Nori fuselage *1 2: Carbon tube 4*4*750mm *1 3: Carbon strip 1mm *5 4: Carbon rod 2mm *2 5: Pull rod *4 5: Motor mount *1 6: Quick rod adjuster *4 6: Hinge *4 7: Hook and loop tape *1... - Page 4 Glue the 2 pcs horizontal fuselages using hot glue sticks. Install the carbon tube on fuselage using foam glue. Install the carbon strip on fuselage using foam glue. Install carbon strip on horizontal tail using foam glue or No.502 glue. Then wait glue dried. Install 2 pcs different length carbon strips on upper Assemble the vertical fuselage on horizontal fuselage half vertical fuselage using No.502 glue.
- Page 5 Install the 2 pcs carbon strips on bottom half vertical Wait glue dried. Then put plane on horizontal desk as fuselage and assemble bottom half vertical fuselage shown picture above. on horizontal fuselage using foam glue. Must check whole fuselage to ensure fuselage orthogonality before glue dry.
- Page 6 Install the 2 pcs 2mm carbon rod using No.502 glue as Make sure both side unification. shown picture above. Make sure the carbon rod front end touch the carbon strip on wing and the carbon rod tail end touch the location behind carbon strip on fuselage. Install arm on servo and electrify all servos to make Install hinge into the hole on aileron with No.502 glue.
- Page 7 Same way to install hinge. Same way to install fuselage’s servos. Let the 2 servo’s wires in same side. Install wood strip in the hole using No.502 glue or hot Install pull rod on servo and hinge and adjust the glue sticks.
- Page 8 Assemble motor on the metal cross using screws. Install motor mount on metal cross with 4 pcs Assemble prop on motor. Notice the prop’s direction. m3 screws. Then assemble motor mount on fuselage using hot Put on hook and loop tape on fuselage using foam glue. glue sticks.
- Page 9 Same way to install receiver. Tie all wires up with cable ties. Put hook and loop tape on fuselage using foam glue Then install battery. behind ESC. C of G is behind the motor mount 2cm as shown in the picture bellow.
- Page 10 EPP Nori looks very Cute and funny when flying, it will take you a new flying feeling.
