Installation Instructions - Command access MLRK1 Series Insert Instructions

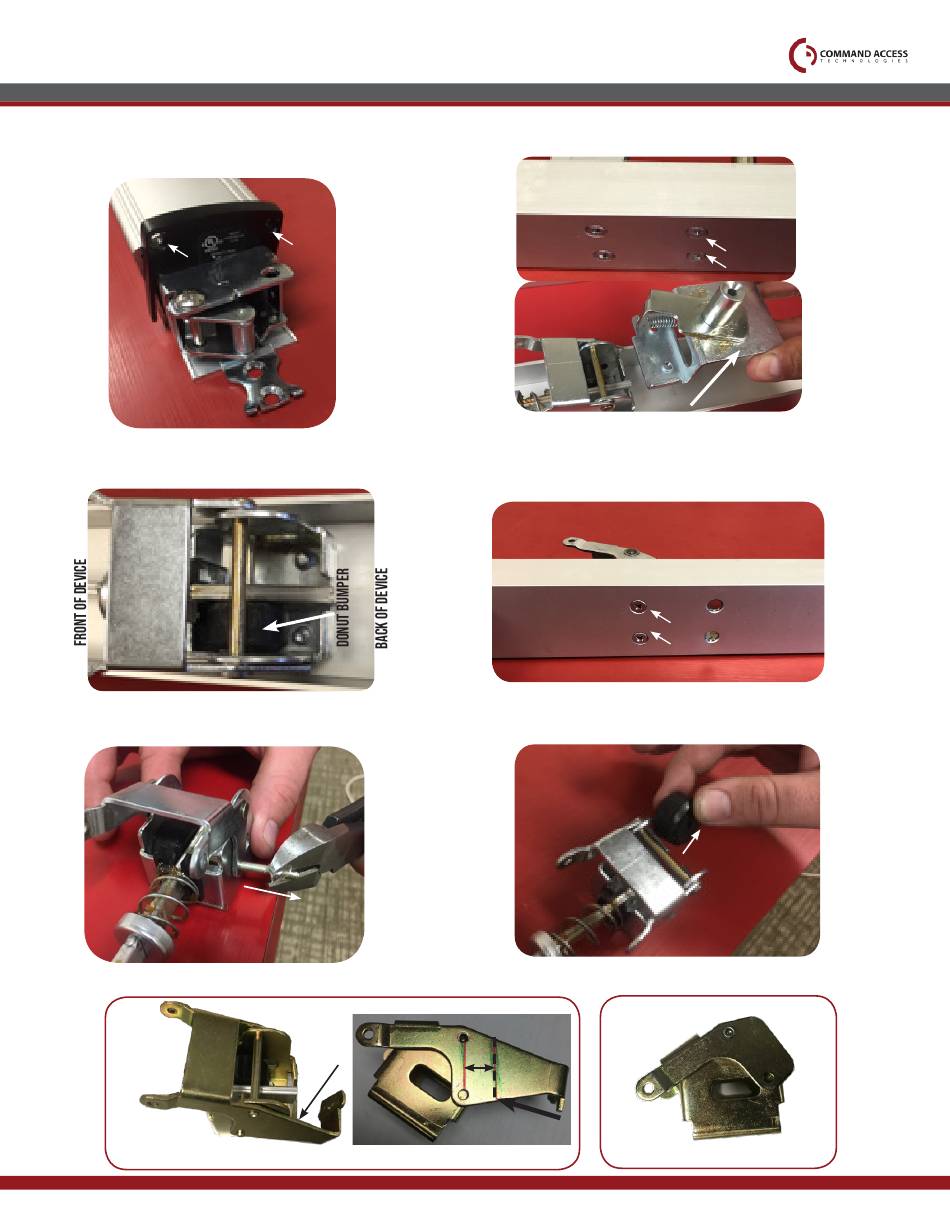

1.
Remove (2) screws securing the push pad end caps on the
front & back, and then the push pad end caps.
Place all to the side.
1
3. if your device is equipped with a donut bumper on the back
activating bracket, we will need to remove.
5. Remove pin from back activating bracket and remove donut bumper. Discard donut bumper & re-install pin into activating bracket, then
re-install to baserail.
Back Activating Bracket will need to be cutdown if it has a dogging hook like pictured below.
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2

Installation Instructions

2
• Cut down
Remove Dogging Assembly by removing (2) screws furthest to
2.
the back end of the device.
4. start by removing (2) screws to release the back activating bracket.
3/4
Cut
1
2
1
2
• Good!
