The Command Access MLRK1 is a field installable motorized latch-retraction kit for:
A.
C.

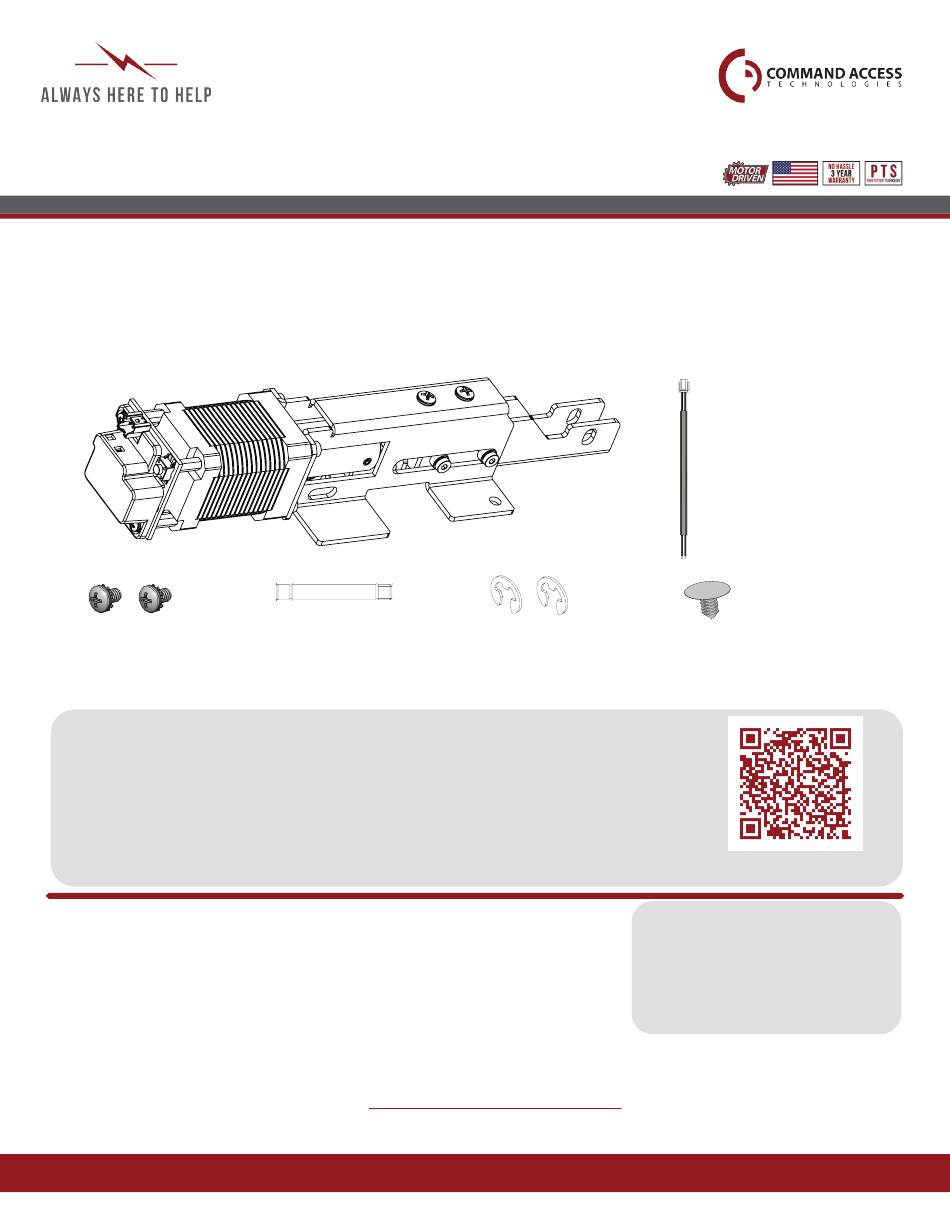

Kit Incl ud es
A. (1) 60726 - MLRK1-PDQ63 Assembly
B. (1) 50944 - molex pigtail
C. (2) 40002 - Pan Head Screws (8-32 x 1/4")
SPE C IF ICA TI O NS
• Input Voltage: 24VDC +/- 10%
• AVERAGE LATCH RETRACTION CURRENT: 900 mA
• Average holding current: 215 ma
• Wire gauge: Minimum 18 gauge
• Direct wire run - no relays or access control units in-between power supply & module
Re com me nde d Power Suppli es:
All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command Access power
supplies at our factory. If you plan on using a non-Command power supply it must be a filtered & regulated linear power supply.
U.S. Customer Support
1-888-622-2377
2. INSTALL LINK ROD
INSERT INSTRUCTIONS
• MLRK1-PDQ63 - PDQ 6300/6400 Series Devices
 Install link rod through link bar and
through MLR bracket
 Install retaining ring on both sides
d.
D. (1) 52091 - Pin 0.1875" x 1.375"
E. (2) 40145 - Retaining clip 3/16"
F. (1) 40432 - Push in plastic rivet
Use a power limited class 2 power supply
Visit our website for more details
www.commandaccess.com
E.
(E-Style)
B.
f.
Installation Video
Opt io na l built-in re x
SPDT - Rated .5a @24V
green= Common (C)
Blue = normally open (NO)
grey = normally closed (NC)
Canada Customer Support
1-855-823-3002
# 2 0 7 8 6 _ C
