Command access MLRK1 Insert Instructions

Field-installable motorized latch-retraction kit
Hide thumbs Also See for MLRK1:

Advertisement

Quick Links

The Command Access MLRK1 is a field-installable motorized latch-retraction kit for:
A.
D.

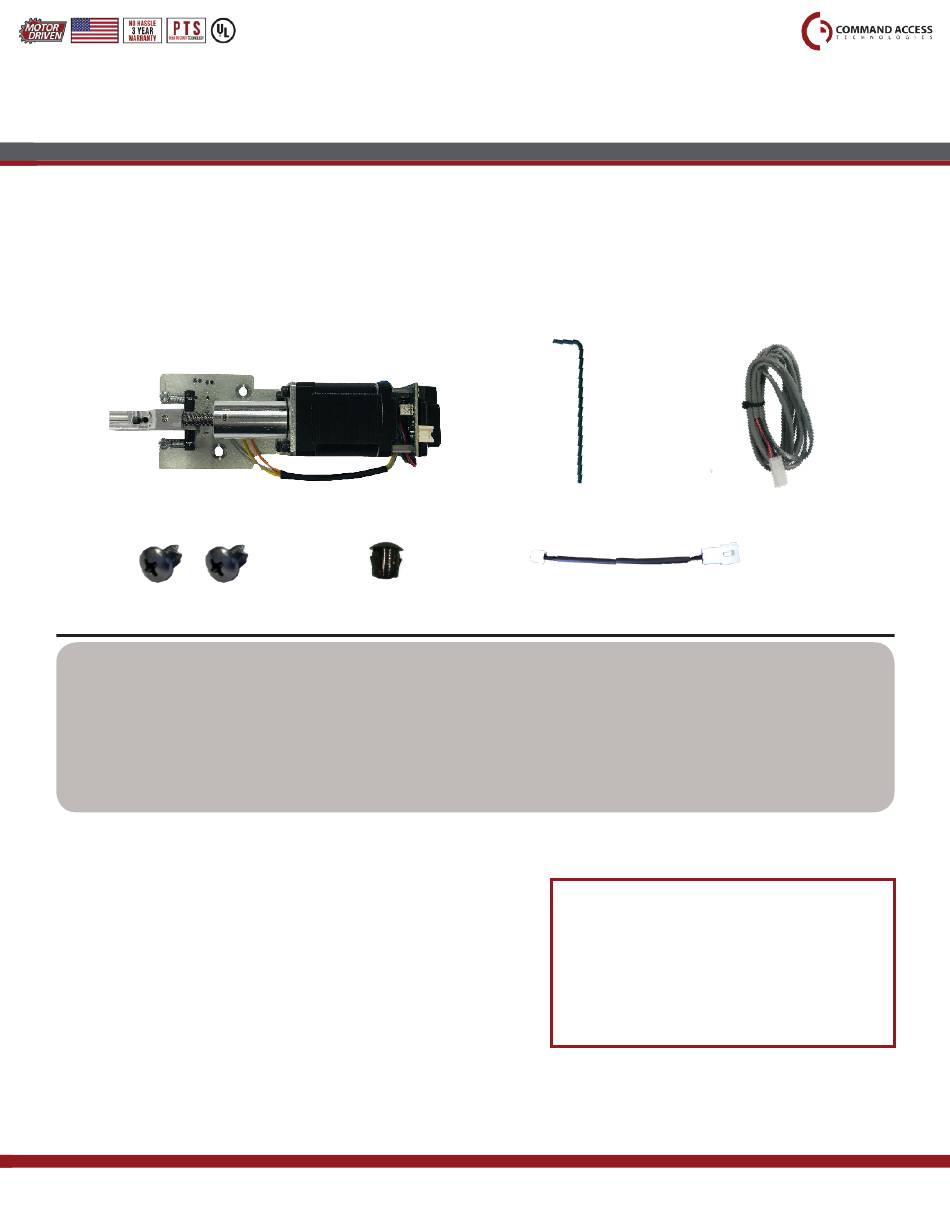

Ki t I ncl u d e s
A. 60235 – Motor Mount w/ MM4T series module
B. 10014 – 1/16 Allen Wrench
C. 50030 – 8' Power Lead
D. 40176 – Phillips Head Screws (x2)
E. 40144 – Dogging Hole Cap
F. 50944 – MM4t Socket Lead
Input Voltage: 24VDC +/- 10%
Wire gauge: Minimum 18 gauge
Direct wire run - no relays or access control units
in-between power supply & module
R e c ommend e d P ow er S u pp li es:
All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command
Access power supplies at our factory. If you plan on using a non-Command power supply it must be a
filtered & regulated linear power supply.
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
M L R K 1
INSERT Instructions
• MLRK1-COR - Corbin 4000/5000 series devices
• MLRK1-YAL - Yale 7000 series devices
E.
SPECIFICATIONS
B.
F.
T o o l s Re qu ir ed
#2 Phillips head screwdriver
Razor blade
Standard Torque Mode
Average Latch Retraction Current: 900 mA
Average Holding Current: 215 mA
High Torque Mode
Average Latch Retraction Current: 2 Amp
Average Holding Current: 250 mA
1
C.
# 2 0 0 9 2 _ H

Advertisement

loading
Need help?

Need help?

Do you have a question about the MLRK1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Command access MLRK1

  • Page 1 R e c ommend e d P ow er S u pp li es: All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command Access power supplies at our factory. If you plan on using a non-Command power supply it must be a filtered &...
  • Page 2: Technical Information

    Technical Information GREEN CHANNEL 1 Ceiling Tile NORMALLY OPEN DRY CONTACT FROM ACCESS CONTROL SYSTEM NO VOLTAGE LOCKING HARDWARE Scan me for more information Module Legend Standard Placement Optional Placement Setting PTS **Important Info** Make sure to set PTS before finishing installation MM4T SWITCHES Select your preferred torque mode (ships in standard torque).
  • Page 3 installation instructions Slide Filler Plate off the bar. Filler Plate If the Dogging Assembly is installed, remove the two screws and discard it. If there is Black Foam sticking out from underneath the Back Activating Bracket, trim and remove. Back Activating Bracket Dogging Assembly Screws Black Foam Install the kit onto the Rod located at the bottom of the Activating Bracket, using the Magnet...
  • Page 4 installation instructions Pull gently on the Magnet Bracket to ensure the Rod is fully seated in the Cut Out and use the 1/16” allen wrench to tighten the First Set Screw. Next use the allen wrench to adjust the Second Set Screw until Magnet Bracket is level.
  • Page 5 installation instructions Plug the kit to power and program the Push To Set position using the instructions below, remembering to turn the Programming Switch to the off position when completed. Make sure to set PTS before finishing installation MM4T SWITCHES Select your preferred torque mode (ships in standard torque).
