I N S T A L L A T I O N I N S T R U C T I O N S
The Command Access VLP-UL-M-KIT is a field-installable motorized latch-pullback kit for the Von Duprin
33/35 & 98/99 series devices.
B.
A.
C.

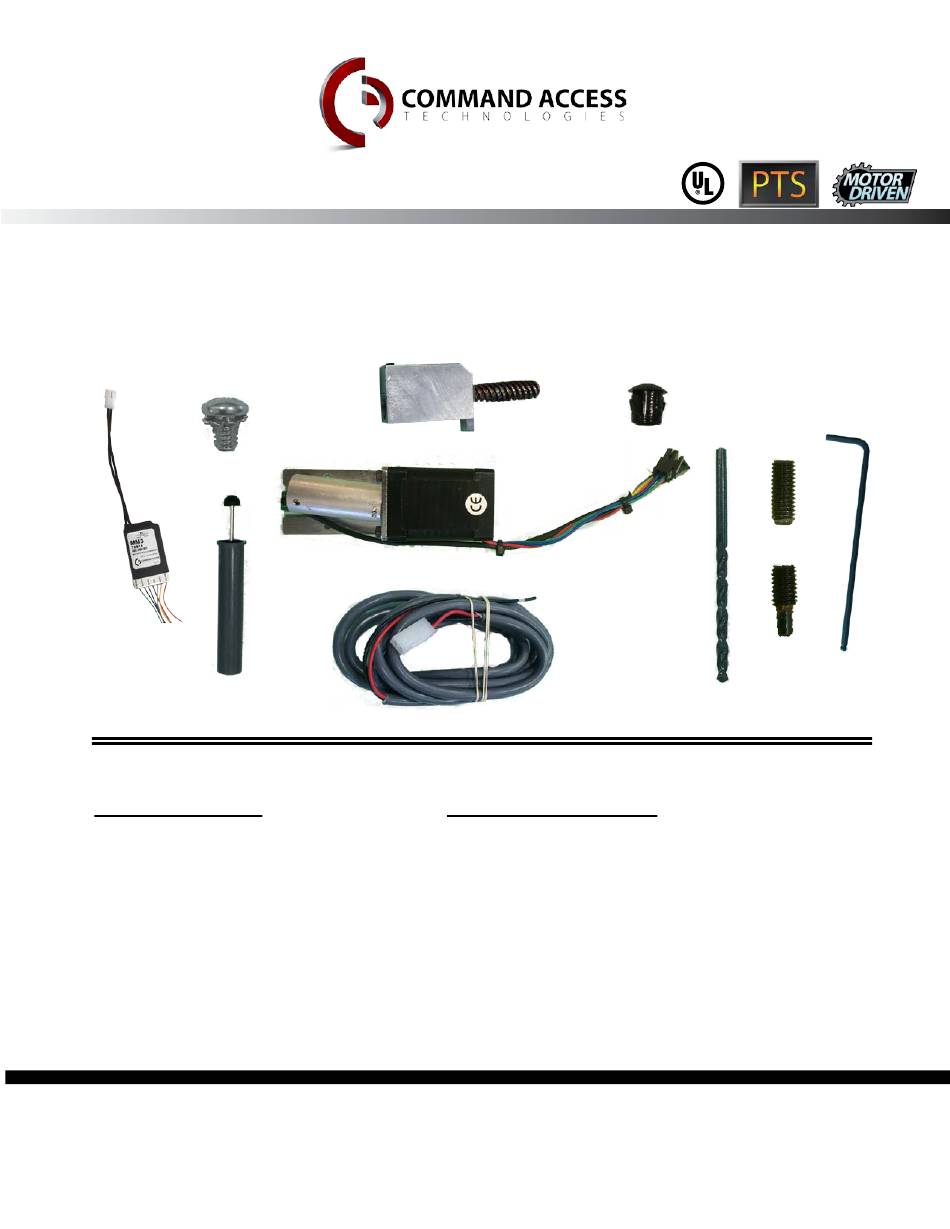

K i t I n c lude s
A. 1 - MM3 Module
B. 2 - Phillips head screws
C. 1 - Replacement Shock Absorber
D. 1 - 6' Lead
E. 1 - Motor Bracket
F. 1 - Acme Thread Block
G. 1 - Dogging Hole Cap
H. 1 - #30 Drill Bit
I. 1 - Hex Screw (installed in F.)
J. 1 - Hex Screw w/ set pin 10/32
K. 1 - Hex Wrench 3/32"
U.S. Customer Support
1-888-622-2377
VLP-UL-M-KIT
F.
E.
D.
To o l s R eq ui red
•
Drill
•
Hammer & Pin Punch(recommend) or 3/16 drill bit
•
Pliers/Vise grips (recommend) or Hacksaw
•
5/16 Nut driver (recommended) or Flat head
screwdriver
•
Phillips head screwdriver
Visit our website for more details
www.CommandAccess.com
Page 1
G.
i.
j.
H.
Canada Customer Support
1-855-823-3002
K.
Doc # 20059
Advertisement
Table of Contents
Related Manuals for Command access VLP-UL-M-KIT
Summary of Contents for Command access VLP-UL-M-KIT
- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S The Command Access VLP-UL-M-KIT is a field-installable motorized latch-pullback kit for the Von Duprin 33/35 & 98/99 series devices.
- Page 2 STEP 1 - Disassemble Exit Device Remove head cover Remove mounting bracket. Bracket Head cover Remove (2) screws attaching bracket to Remove case for device. baserail with 5/16 nut drive or flat head screw driver. Case Screws Remove push pad by pulling pad guides up than moving push pad forward &...
- Page 3 STEP 2 - Change out shock absorber **Note if you have the old style shock absorber Old Style New Style (prior to Feb/Mar 2014) or the new style (after Nov 2014) you will skip step 2.*** Now your device should have all finished parts removed.
- Page 4 STEP 3 *If you have a fire-rated - Removing Dogging device skip to step 4 Remove Cylinder by pulling up. Push tabs in & pull up on locking piece. Cylinder Tabs Locking piece Or drill rivets out using 3/16 drill Using Hammer &...
- Page 5 STEP 4 - Installing Kit Push Acme thread block onto metal Using Hex screw (I.) install into first rod. Push until block stop hits base of hole on block using Allen wrench activating arm. provided. Acme thread block Metal Rod Stop Activating Arm Base Using #30 drill bit provided, drill into...
- Page 6 STEP 4 - Continued ... Once bracket lines up with screw Next plug in MM3 module to motor & if holes install (2) Phillips head screws (B) available power. We recommend to test provided. unit. See last page for MM3 details Screw holes STEP 5 - Reassemble Exit Device...
- Page 7 Technical Information Specifications • Input Voltage: 24VDC +/- 10% Installation Video Wiring Code • Current Peak: 1 Amp • Current Hold: 125 mA • Wire gauge: X 20 ga Scan or Click Setting MM3 Step 1 Press the device push pad to the desired setting. (this can be fully depressed or less than fully depressed).
