Command access MLRK1 Instructions Manual

Field installable motorized latch-retraction kit for mlrk1-arex
Hide thumbs Also See for MLRK1:
1
2
3
4
5
6
7

Advertisement

Table of Contents

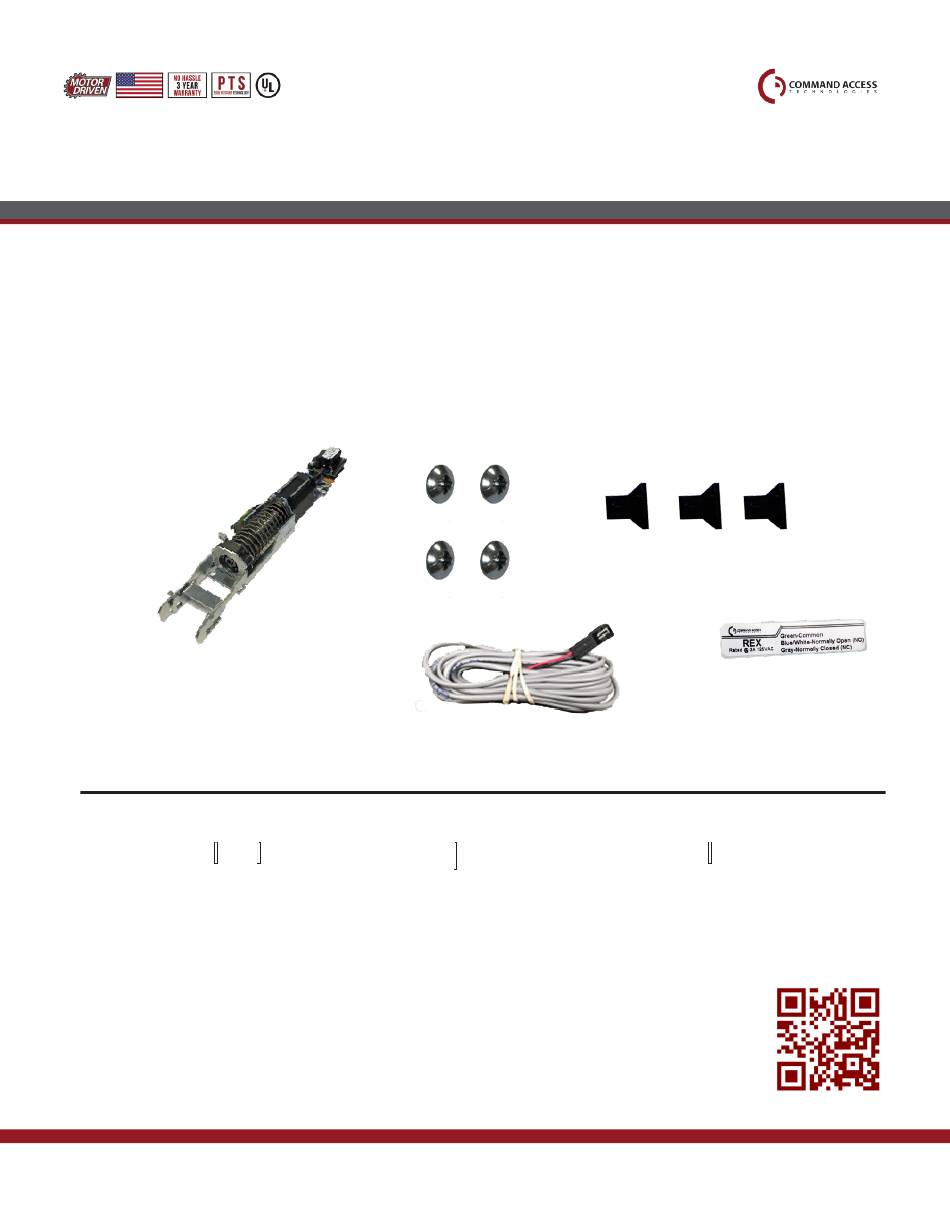

The Command Access MLRK1 is a field installable motorized latch-retraction kit for:
• MLRK1-AREX - Adams Rite EX series devices
A.
KIT I NC L U D ES | TO O L S R E Q U I R E D
A.
Motor Kit
B.
4 - Phillips Head Screws
C.
3 - Wire clips
D.
1 - 8' Lead
E.
Optional REX (if ordered)
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
mlrk1
INSERT INSTRUCTIONS
B.
D.
• Cordless Drill or Phillips Screwdriver
• Power Source
C.
E.
IN STA LL AT IO N VI DE O
# 2 0 4 2 1 _ B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MLRK1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Command access MLRK1

Summary of Contents for Command access MLRK1

  • Page 1 INSERT INSTRUCTIONS The Command Access MLRK1 is a field installable motorized latch-retraction kit for: • MLRK1-AREX - Adams Rite EX series devices KIT I NC L U D ES | TO O L S R E Q U I R E D Motor Kit • Cordless Drill or Phillips Screwdriver...

  • Page 2: Technical Information

    Technical Information SPECIFICATIONS POWER • Input Voltage: 24VDC +/- 10% MM4 SWITCHES Standard Torque Mode • Wire gauge: Minimum 18 gauge Average Latch Retraction Current: 1.3 A STANDARD TORQUE • Direct wire run - no relays or access control units in- Average Holding Current: 215 mA HIGH TORQUE between power supply &...
  • Page 3 Optional Placement Re c o mm ended Powe r S u pp lie s : All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command Access power supplies at our factory. U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2...
  • Page 4 Remove head cover & front push pad end cap. Remove both back push pad end caps Slide off push pad Remove dogging if present. Motor kit will line up with existing front & back screw holes & hooks onto the front activitating bracket.

  • Page 5: Installation Instructions

    Installation Instructions Line up front set of screw holes with Once the kit is on the roll pin pull back to look exisiting holes & install (2) screws provided. them into place. Line up back set of screw holes with Hook up to power to test motor exisiting holes &...
  • Page 6 Attach the cable guides and then press wires into guides. Cable Guide 1 Re-install the both front end caps. Slide the pushpad back onto the device U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2...
  • Page 7 Re-install both back activiating brackets. If you have the REX, add sticky pad with zip tie as a strain relief. Next, hook up to power and set the Push-to-Set adjustment, remembering to turn the Programming Switch to the off position when completed. MM4 SWITCHES STANDARD TORQUE HIGH TORQUE...
