The Command Access MLRK1 is a Field-installable motorized latch-retraction kit:
B.
C.

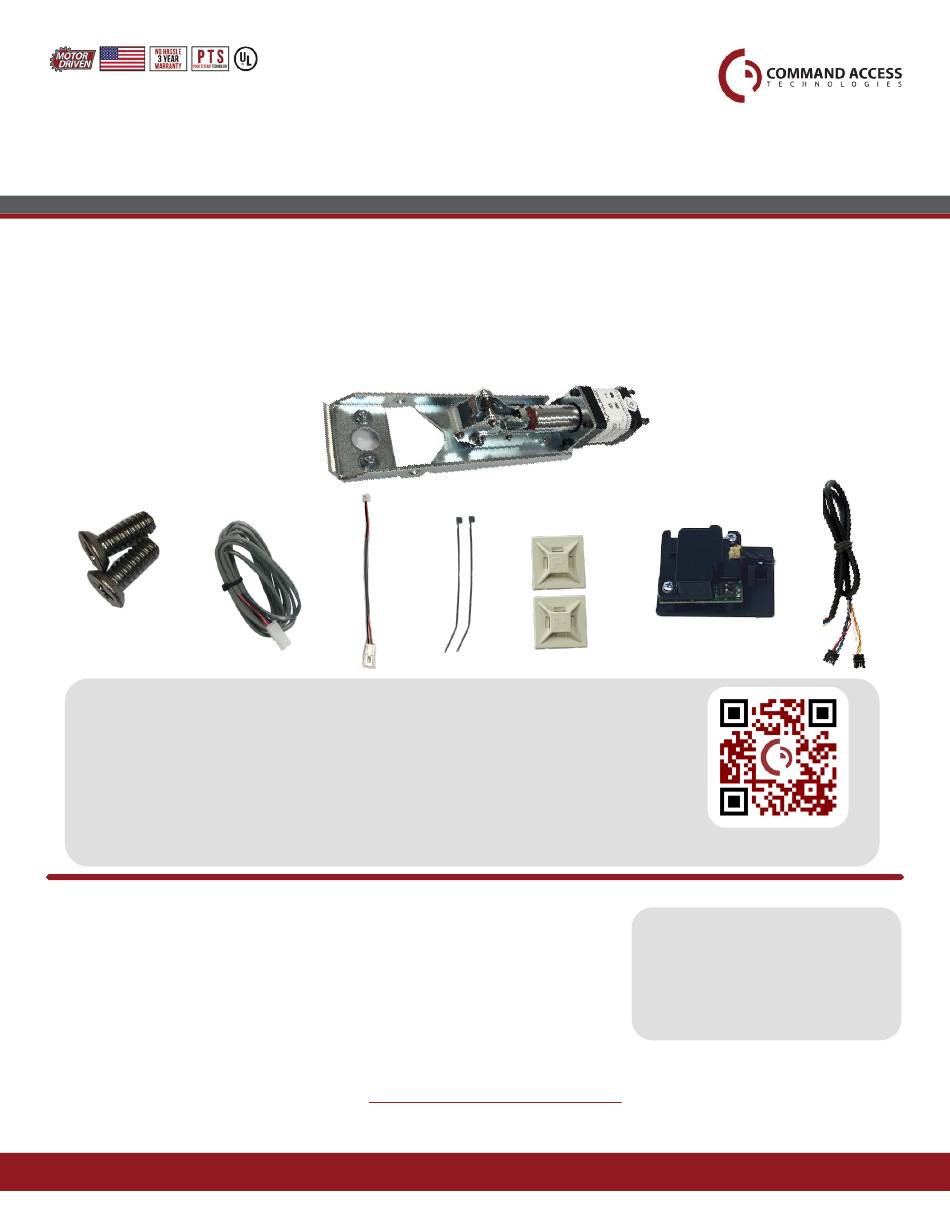

Ki t Incl u d es
A. 1- Motor Mount
B. 1- 40801 - Phillips head screw
C. 1- 50030 - 6' Power Lead
D. 1- 50944 - molex pigtail
E. 2 - 40060 - Cable tie
SPE C IF IC ATIONS
• Input Voltage: 24VDC +/- 10%
• AVERAGE low Torque LATCH RETRACTION CURRENT: 900 mA
• Average high torque latch retraction current: 2A
• Average holding current: 215 ma
• Wire gauge: Minimum 18 gauge
• Direct wire run - no relays or access control units in-between power supply & module
Re com me nde d Power Suppli es:
All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command Access power
supplies at our factory. If you plan on using a non-Command power supply it must be a filtered & regulated linear power supply.
U.S. Customer Support
1-888-622-2377
mlrk1-
INSERT INSTRUCTIONS
• MLRK1-SGT - Sargent 80 series devices
• MLRK1-ARW - Arrow 1000 series devices
A.
D.
E.
F. 2 - 40059 - mounting pad
G. 1- 60368/51186 - remote mm4s module
H. 1 - 50741 - remote module cable
Use a power limited class 2 power supply
Visit our website for more details
www.commandaccess.com
F.
G.
INS TA LLAT ION VIDE O
Opt io na l built-in re x
SPDT - Rated .5a @24V
green= Common (C)
Blue = normally open (NO)
grey = normally closed (NC)
H.
Canada Customer Support
1-855-823-3002
# 2 0 4 5 1 _ C

Advertisement

loading
Need help?

Need help?

Do you have a question about the MLRK1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Command access MLRK1 Series

  • Page 1 Use a power limited class 2 power supply All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command Access power supplies at our factory. If you plan on using a non-Command power supply it must be a filtered & regulated linear power supply.
  • Page 2 Technical Information GREEN CHANNEL 1 Ceiling Tile NORMALLY OPEN DRY CONTACT FROM ACCESS CONTROL SYSTEM NO VOLTAGE LOCKING HARDWARE Module MM4S SWITCHES Legend STANDARD TORQUE Standard Placement HIGH TORQUE Optional Placement PTS PROGRAMMING ON PTS PROGRAMMING OFF Setting PTS **Important Info** Make sure to set PTS before finishing installation Step 1- Select your preferred torque mode (ships in standard torque) Press the device push pad to the desired...
  • Page 3 Installation Instructions Flip over device & remove (4) screws Slide Push Pad off Exit Device Housing. securing push pad assembly to housing. Front activating bracket SLIDE Locate the FRONT Activating Bracket. Install Point of Front Activating bracket Remove original mounting bracket by into opening of motor's attaching bracket.
  • Page 4 Installation Instructions Slide Push Pad & Motor Kit back into housing. Make Sure MM4S Cable is routed OVER the Be cautious of MM4S cable wires. back activating bracket. mm4s cable MOTOR KIT Back activating bracket Once passed the back activating bracket, Plug-in cable's (4) Pin TOP port &...
