Command access MLRK1 Series Insert Instructions

Field-installable motorized latch-retraction kit
Hide thumbs Also See for MLRK1 Series:
1
2
3
4
5

Advertisement

Table of Contents

MLRK1-CAL
The Command Access MLRK1 is a field-installable motorized latch-retraction kit for:
• MLRK1-CAL - Cal Royal 9800/2200 series devices
• MLRK1-DRX - Dorex 9500 series devices
A.
B.

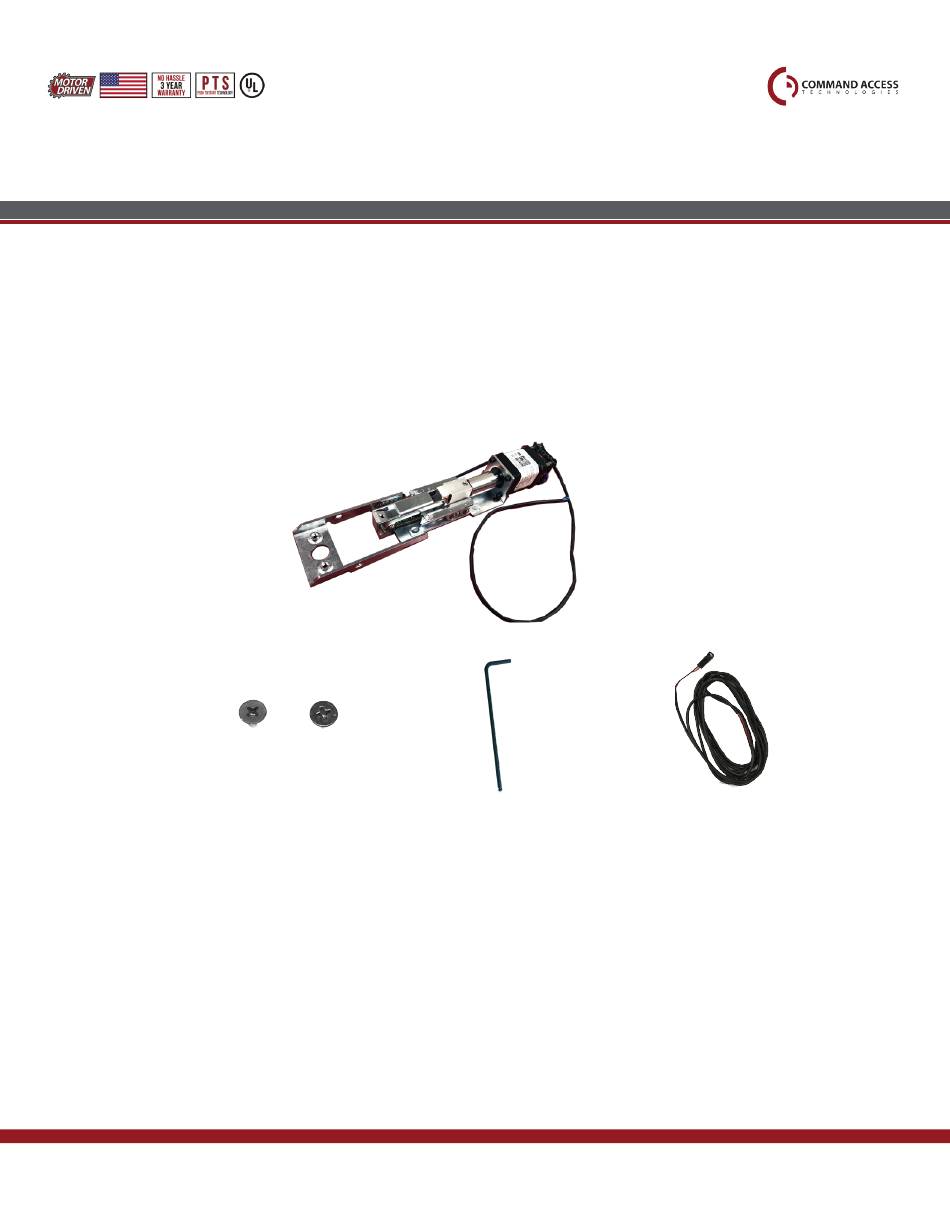

KI T IN C LU D E S
1- Motor Mount
A.
4- #40064 Phillips Screws
B.
1- #10017 3/32" Allen Wrench
C.
1- #50436 8' Lead
D.
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
INSERT Instructions
C.
|
TO O L S R E Q U I RE D
D.
#2 Phillips head screwdriver
# 2 0 4 2 3 _ B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MLRK1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Command access MLRK1 Series

Summary of Contents for Command access MLRK1 Series

  • Page 1 MLRK1-CAL INSERT Instructions The Command Access MLRK1 is a field-installable motorized latch-retraction kit for: • MLRK1-CAL - Cal Royal 9800/2200 series devices • MLRK1-DRX - Dorex 9500 series devices KI T IN C LU D E S TO O L S R E Q U I RE D...

  • Page 2: Technical Information

    Technical Information SPECIFICATIONS MM4 SWITCHES • Input Voltage: 24VDC +/- 10% • Wire gauge: Minimum 18 gauge STANDARD TORQUE Standard Torque Mode HIGH TORQUE • Direct wire run - no relays or access Average Latch Retraction Current: 900mA PTS PROGRAMMING ON Average Holding Current: 215 mA control units in-between power supply PTS PROGRAMMING OFF...

  • Page 3: Installation Example

    Optional Placement Recommended Power Supplies: All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command Access power supplies at our factory. U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2...

  • Page 4: Installation Instructions

    Installation Instructions Remove (4) screws on the back of the exit device. Flip the device back over & slide off push pad. Remove push pad from device. Remove front mounting bracket by sliding out pin. Front mounting bracket. Place attaching knuckle on front activating bracket Lift pushpad up 90 degress and using the allen and re-insert pin into the activating bracket.
  • Page 5 Installation Instructions Now with the motor kit installed slide the push pad Make sure to route power wires over the back back into the exit device housing. activating bracket. Secure the motor kit to the base rail with the (4) Flip the device over &...
