Command access MLRK1 Insert Instructions

For mlrk1-yal6, yale 6000 series devices
Hide thumbs Also See for MLRK1:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
The Command Access MLRK1 is a field-installable motorized latch-retraction kit for:
A.
D.

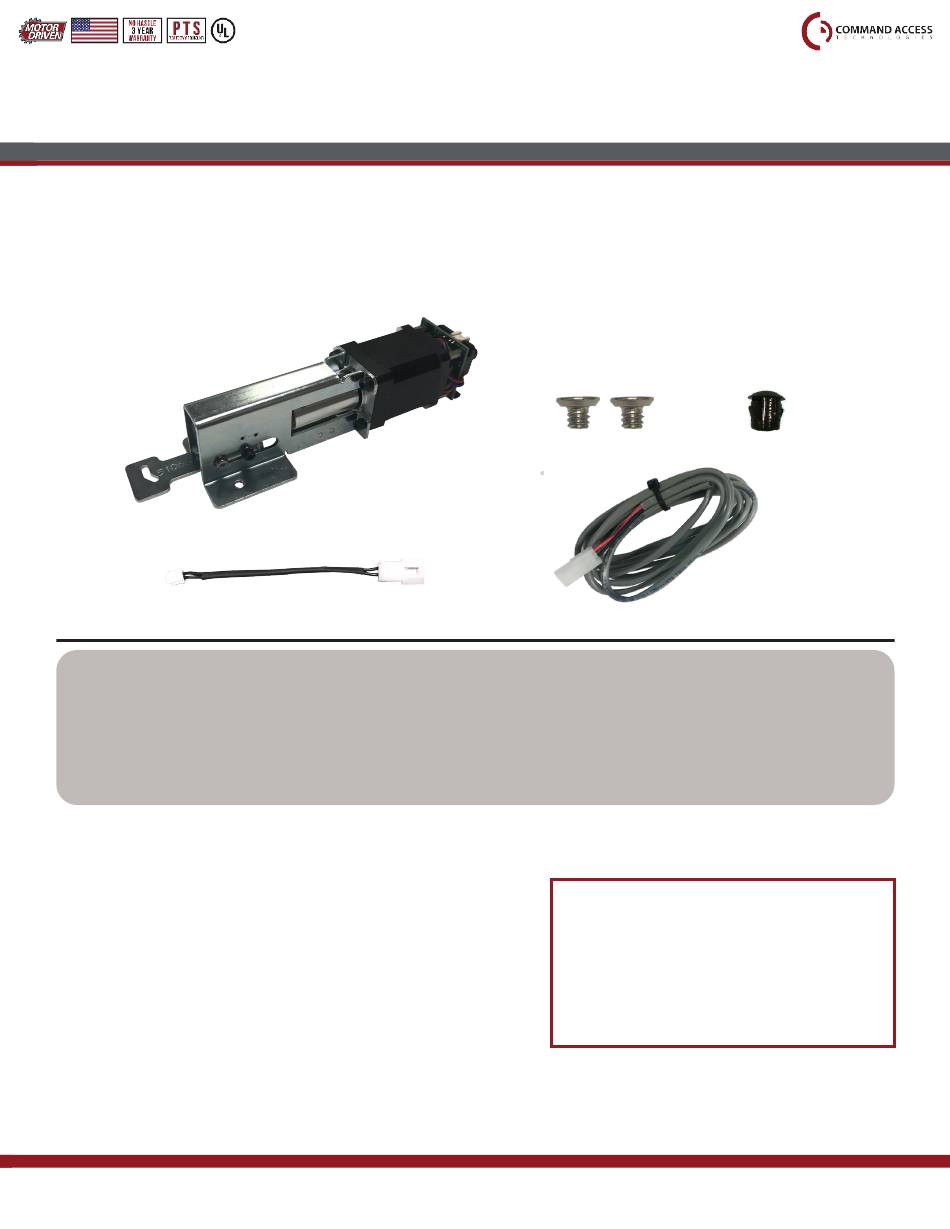

Ki t I ncl u d e s
A. 61045 – Motor Mount w/ MM4 series module
B. 40306 – 10-24 X 0.25 SCREW (X2)
C. 40144 – Dogging Hole Cap
D. 50944 – MM4 Socket Lead
E. 50030 – 8' Power LeaD
•
Input Voltage: 24VDC +/- 10%
•
Wire gauge: Minimum 18 gauge
•
Direct wire run - no relays or access control units
in-between power supply & module
R e c ommend e d P ow er S u pp li es:
All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command
Access power supplies at our factory. If you plan on using a non-Command power supply it must be a
filtered & regulated linear power supply.
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
M L R K 1
INSERT Instructions
• MLRK1-YAL6 - Yale 6000 series devices
SPECIFICATIONS
B.
E.
T o o l s Re qu ir ed
#2 Phillips head screwdriver
Standard Torque Mode
Average Latch Retraction Current: 900 mA
Average Holding Current: 215 mA
High Torque Mode
Average Latch Retraction Current: 2 Amp
Average Holding Current: 250 mA
1
C.
# 2 0 6 2 2 _ A

Advertisement

loading
Need help?

Need help?

Do you have a question about the MLRK1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Command access MLRK1

Summary of Contents for Command access MLRK1

  • Page 1 R e c ommend e d P ow er S u pp li es: All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command Access power supplies at our factory. If you plan on using a non-Command power supply it must be a filtered &...

  • Page 2: Technical Information

    Technical Information GREEN CHANNEL 1 Ceiling Tile NORMALLY OPEN DRY CONTACT FROM ACCESS CONTROL SYSTEM NO VOLTAGE LOCKING HARDWARE Scan me for more information Module Legend Standard Placement Optional Placement Setting PTS **Important Info** Make sure to set PTS before finishing installation MM4S SWITCHES Select your preferred torque mode (ships in standard torque).
  • Page 3 installation instructions Slide Filler Plate off the bar. Filler Plate If the Dogging Assembly is installed, remove its two screws and discard. To install the motor, place the Motor Link Cutout over the Dogging Tab. Dogging Tab Motor Link Cutout U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w .
  • Page 4 installation instructions Once the Motor Link is installed securely on the Dogging Tab. Line up the two Mounting Holes. Mounting Holes With one hand holding the motor in place, flip the bar over and secure the kit by installing the two provided screws into the Mounting Holes from the backside of the bar.
  • Page 5 installation instructions To remove, gently apply pressure to the back of the Pad Guide until it pops out of the Filler Plate. Filler Plate Pad Guide To install the Pad Guide turn it sideways until it clears the sides of the bar, then press it against the pad. If needed, install the provided Dogging Hole Cap by pressing it into the dogging hole.
  • Page 6 installation instructions Slide on the Filler Plate and connect the motor to power. Test using the instructions below. Make sure to set PTS before finishing installation MM4S SWITCHES Select your preferred torque mode (ships in standard torque). Press the Step 1 - STANDARD TORQUE device push pad to the desired setting.
