Installation Instructions - Command access MLP-UL-M KIT Insert Instructions

Installation Instructions

B.

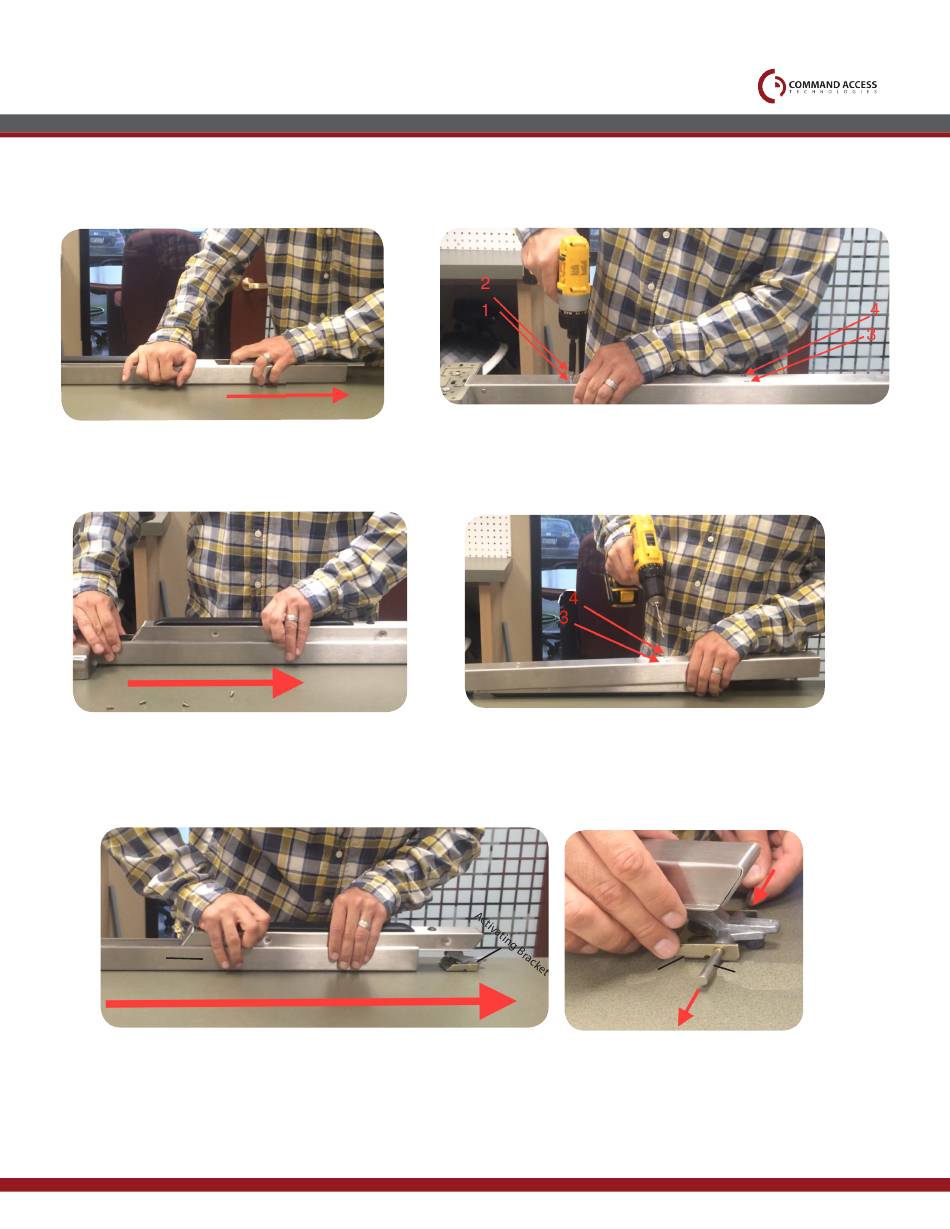

1. 2.
Remove End Cap & Filler Plate Remove (4) screws from baserail
3. 4.
Partially slide push pad off approx. 2-3" Using 5/32" drill bit. Open up the (2) back screw holes #3 & 4.
5.
Continue sliding push pad half way out of the base rail so activating bracket is accessible. Next, remove metal rod
and AB mount can be put aside.
Baserail Metal Rod
AB Mount
