Command access MLRK1 Series Insert Instructions page 4

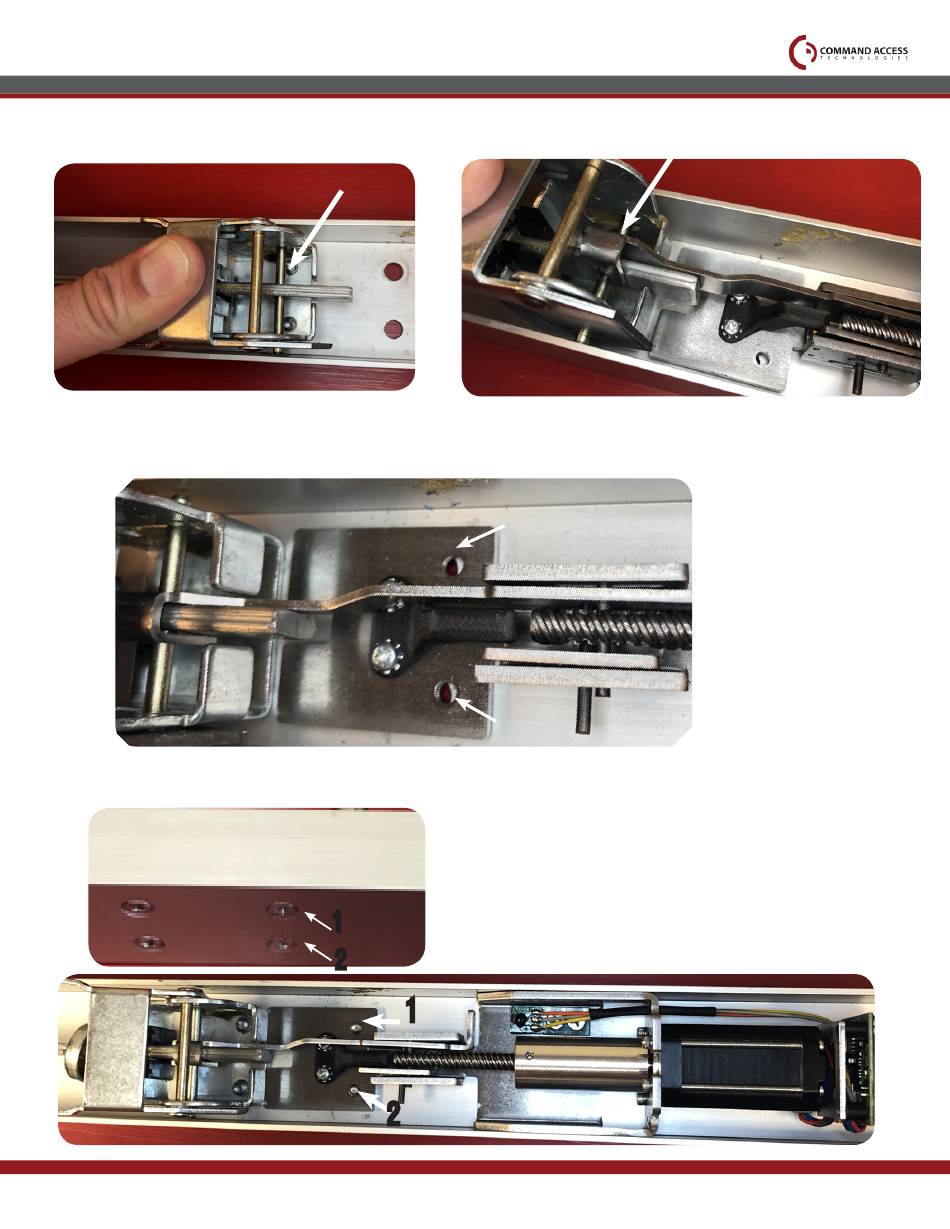

Now with the donut bumper &/or dogging hook removed. We can
6.
install our motor kit by depressing the back activating bracket.
Line up the motor's mounting bracket screw holes with the existing screw holes from the dogging assembly on the exit device housing.
8.
9. Secure the motor assembly from the back of the device with (2) of the finished screws provided.
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
7. Drop the attaching hook on the motor assembly onto the bottom pin
of the activating bracket.
1
2
1
2
1
2
