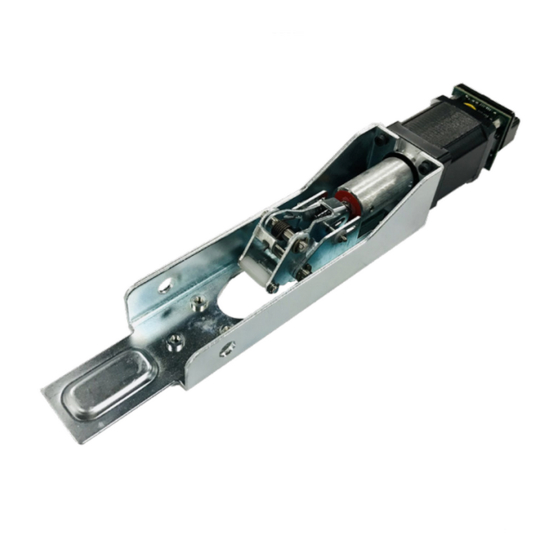

The Command Access MLRK1 is a field installable motorized latch-retraction kit for:
• MLRK1-TEL - Tell 9500 series devices
• MLRK1-TTN - Phoenix Titan 66 series devices
• MLRK1-PHI - Philadelphia Hardware 9000 series devices
B.

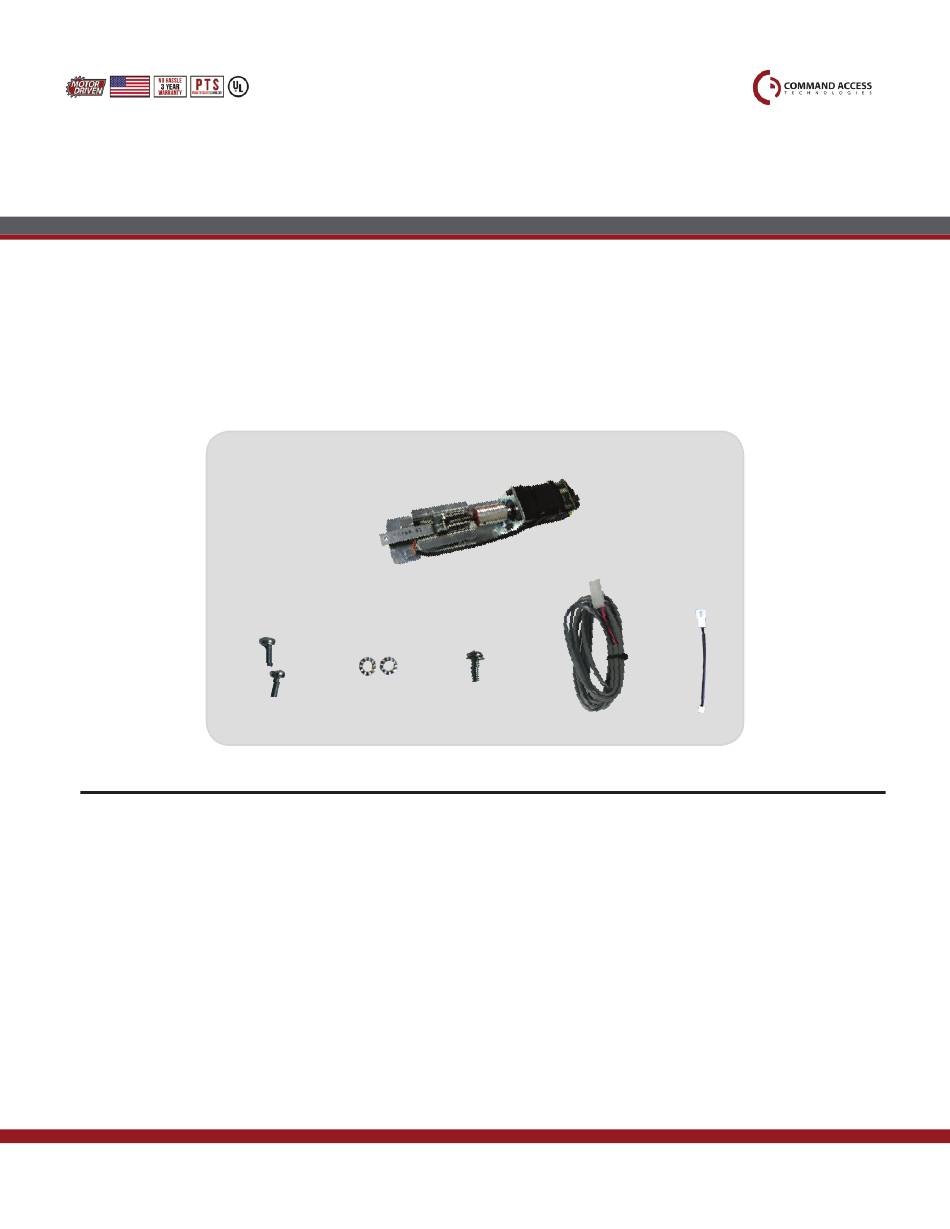

KI T IN CL UD E S
1 - 60281 - MLRK1
A.
2 - 40786 - M4 screws
B.
2 - 40351 - Lock Washers
C.
1 - 40014 - Phillips Screw with Lock washer
D.
1 - 50030 - 8' Lead
E.
1 - 50944 - MM4T Socket Lead
F.
C o m m a n d A c c e s s T e c h n o l o g i e s | 2 2 9 0 1 L a P a l m a A v e , Y o r b a L i n d a , C A 9 2 8 8 7 | P h o n e : ( 8 8 8 ) 6 2 2 - 2 3 7 7
Command Access is not a licensee, or affiliated, associated or connected with Allegion, Assa Abloy, Stanley, Schlage, Falcon, Von Duprin, Dorma, Sargent, Corbin Russwin, Yale, Emtek, Adams Rite, Best, Precision, Arrow,
Design Hardware, Cal Royal, Jackson, AHT, Marshall Best, Marks, Accurate, Baldwin, FSB, PDQ, Lawrence, Trans Atlantic, Hager, LSDA, General Lock, or Omnia or any of their subsidiaries or affiliates.
MLRK1
INSERT INSTRUCTIONS
A.
C.
D.
F.
E.
T O O LS R EQ UIR E D
Cordless Drill or Phillips Screwdriver
#20425_C
