The Command Access VLP-UL-M-KIT is a Field-installable motorized latch-pullback kit for the Von Duprin 99/98 & 35/33 series
B.
C.

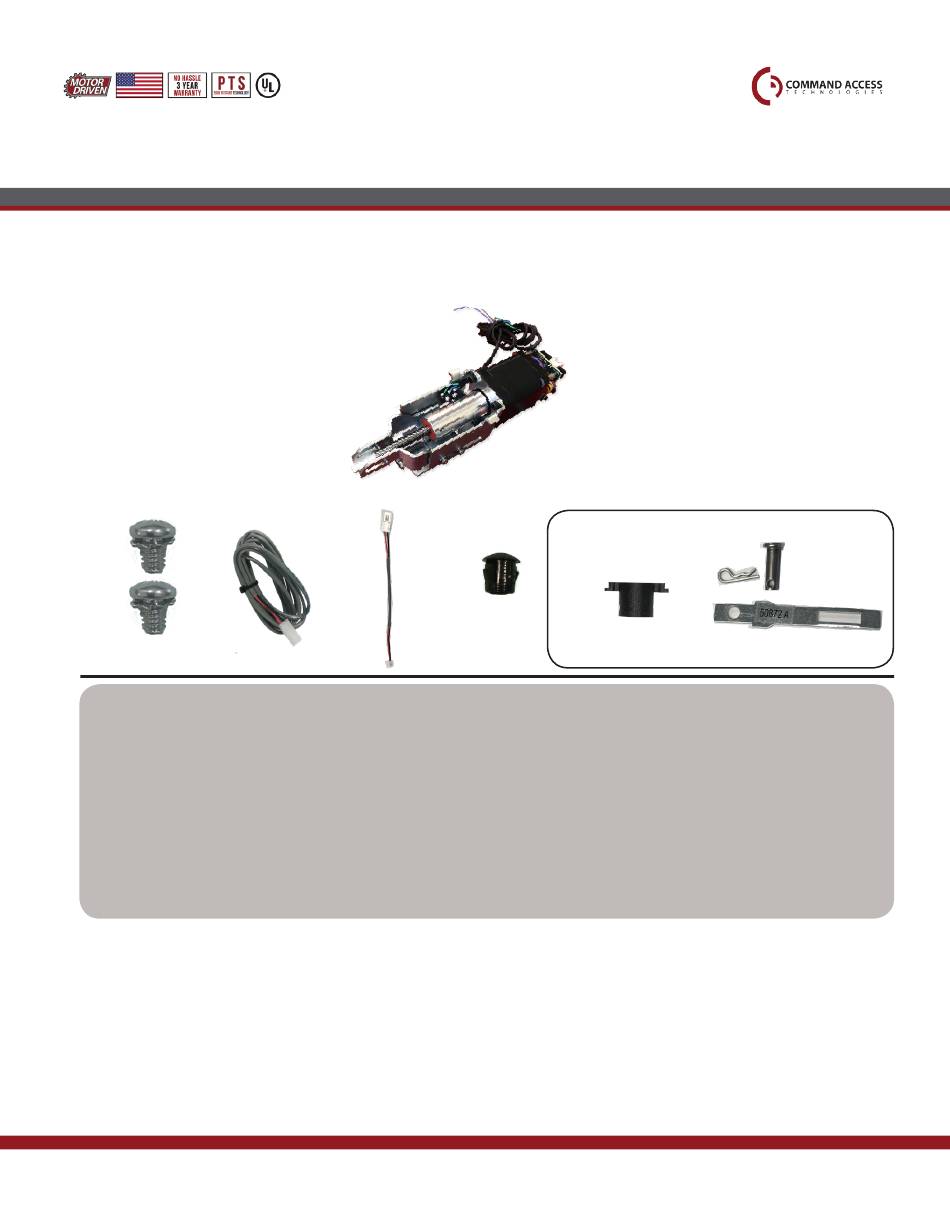

K it In c l u d es
1- 60343 Motor Mount w/ MM5 series module
A.
2- 40002 8/32 X 1/4" Phillips head screws
B.
1- 50030 8' Lead w/ VD Connector
C.
1- 50944 Molex Pigtail
D.
1- 40144 Dogging Hole Cap
E.
Fi r e r ate d d o g g i n g k i t
F.
1- 50872- Fire Rated Drilling Template (Old Devices)
G.
1- Replacement Dogging Tail Piece (40006 + 40800 + 50872)
SPECIFICATIONS:
R e co mm e nd ed Pow er Suppli es:
All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command Access power supplies at our factory. If you
plan on using a non-Command power supply it must be a filtered & regulated linear power supply.
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
v L P - U L- M K I T
INSERT Instructions
devices.
A.
D.
E.
•
Input Voltage: 24VDC +/- 10%
•
Average Latch Retraction Current: 900mA
•
Average Holding Current: 200mA
•
Wire Gauge: Minimum 18 gauge
•
Direct wire run - no relays or access control units in-between power supply & module
F.
To o l s R e q ui r e d
•
Cordless Drill
•
Hammer & Pin Punch(recommend)
•
3/16 & 3/32 drill bit
•
5/16 Nut driver (recommended)
•
#2 Phillips head screwdriver
G.
# 2 0 4 5 3 _ c
