Installation Instructions - Command access CYLP-UL-M KIT Insert Instructions

Installation Instructions

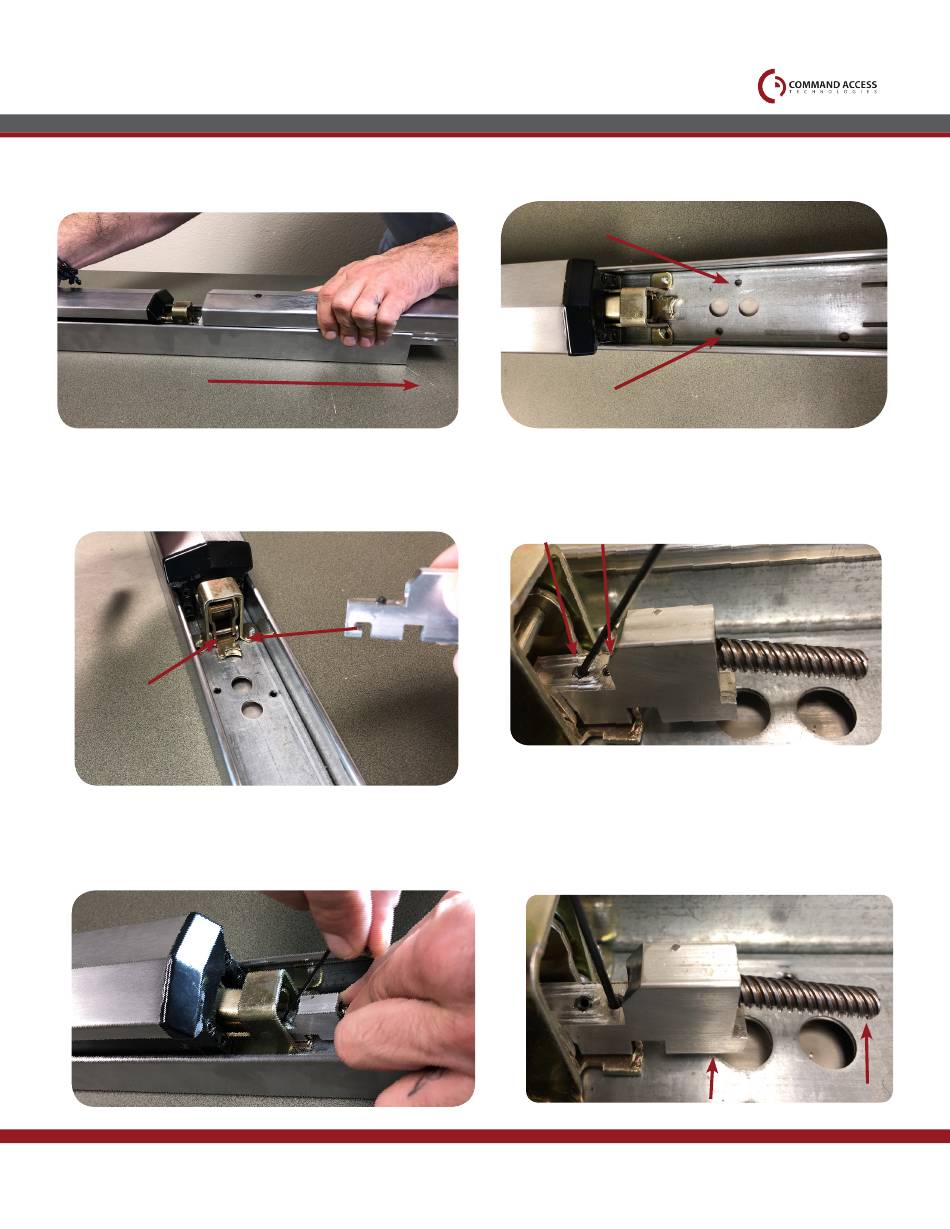

1.
Slide off Filler plate.
3.
Install attaching bracket to the rod on the bottom
of the back activating bracket.
Rod
5.
Using the 1/16" Hex wrench secure the 1st set
screw to secure the bracket to the device.
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
2.
If dogging assembly is present, remove (2)
screws and discard dogging assembly.
1
2
4.
Refer to this picture for the next 2 steps.
1 2
6.
Use the 2nd set screw to set the height of the
attaching block. You want the block to be level.
Acme Thread
# 2 0 0 9 2 _ F
