AMP Research Power Step 76331-01A Installation Manual page 11

A M P R E S E A R C H P O W E R S T E P

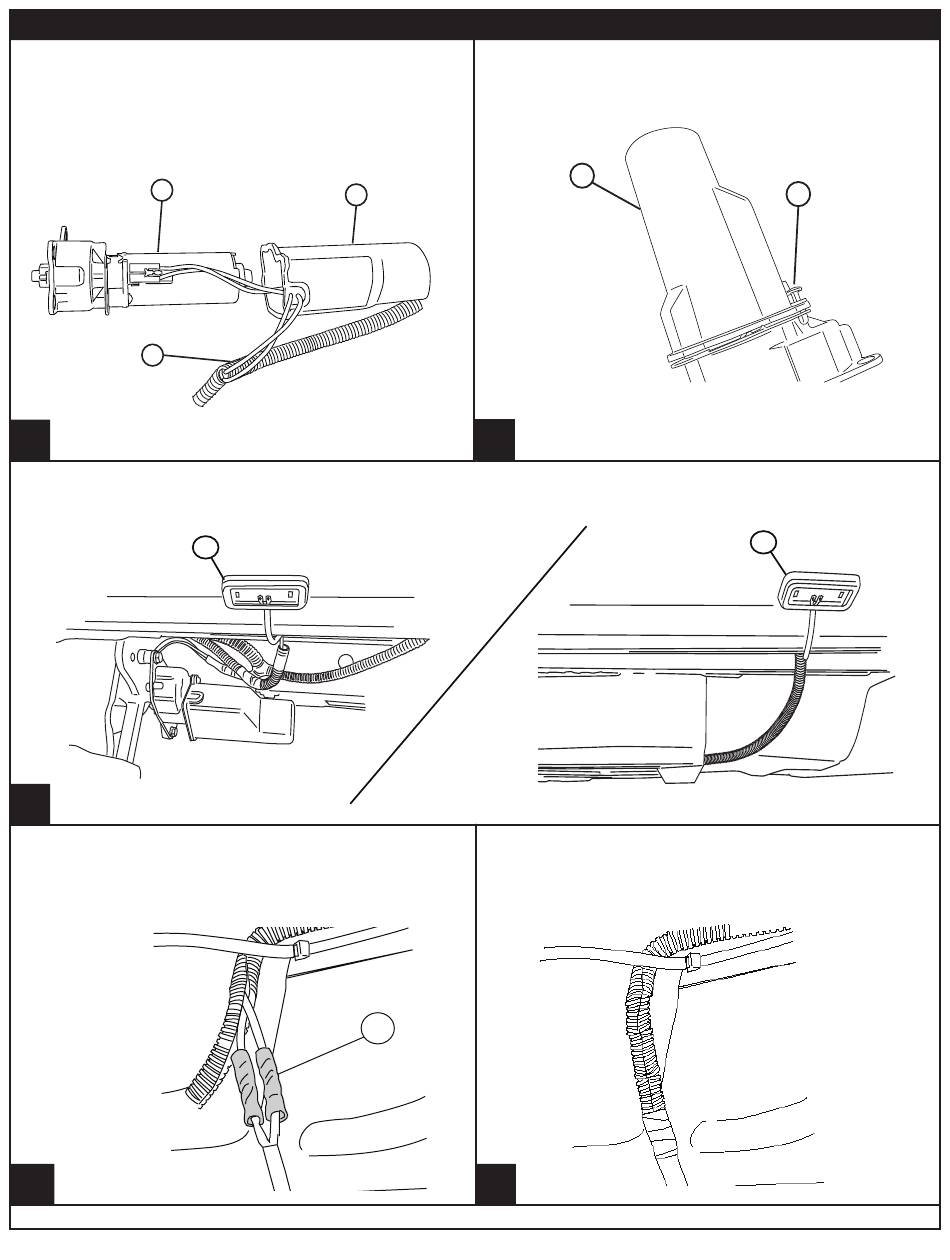

Insert plug from wire harness (7) onto motor (4).
Slide rubber grommet on wire harness into slot of
motor cover (5). Insert motor cover onto motor. Use
electrical tape to cover any exposed wire from the
motor.
4
7
24 4
On each side of the vehicle Secure the LED light (8) onto the rocker just behind the front linkages and in
front of the rear linkages. Make sure lamp is affixed to a flat, clean surface.
26
Use supplied butt connectors (24), connect the
lamp wires. Red to Red and Black to Black. Once
crimped use heat gun to shrink tube. The wires
should be zip tied accordingly.
27
www.amp-research.com
5
8
24
Shrink Tube
Sealing Butt
Connector
– D O D G E D U R A N G O
T M
Insert plastic push pin rivets (15) in mounting holes
of motor cover(5). Use pliers to ease installation.
5
25
Close and wrap with conduit and electrical tape.
Secure all loose wires with cable ties, with lamp
wires pulled upward to avoid any wire snagging.
28
11/13
15
8
IM76331 rev 8.10.18
