AMP Research Power Step 76331-01A Installation Manual page 10

A M P R E S E A R C H P O W E R S T E P

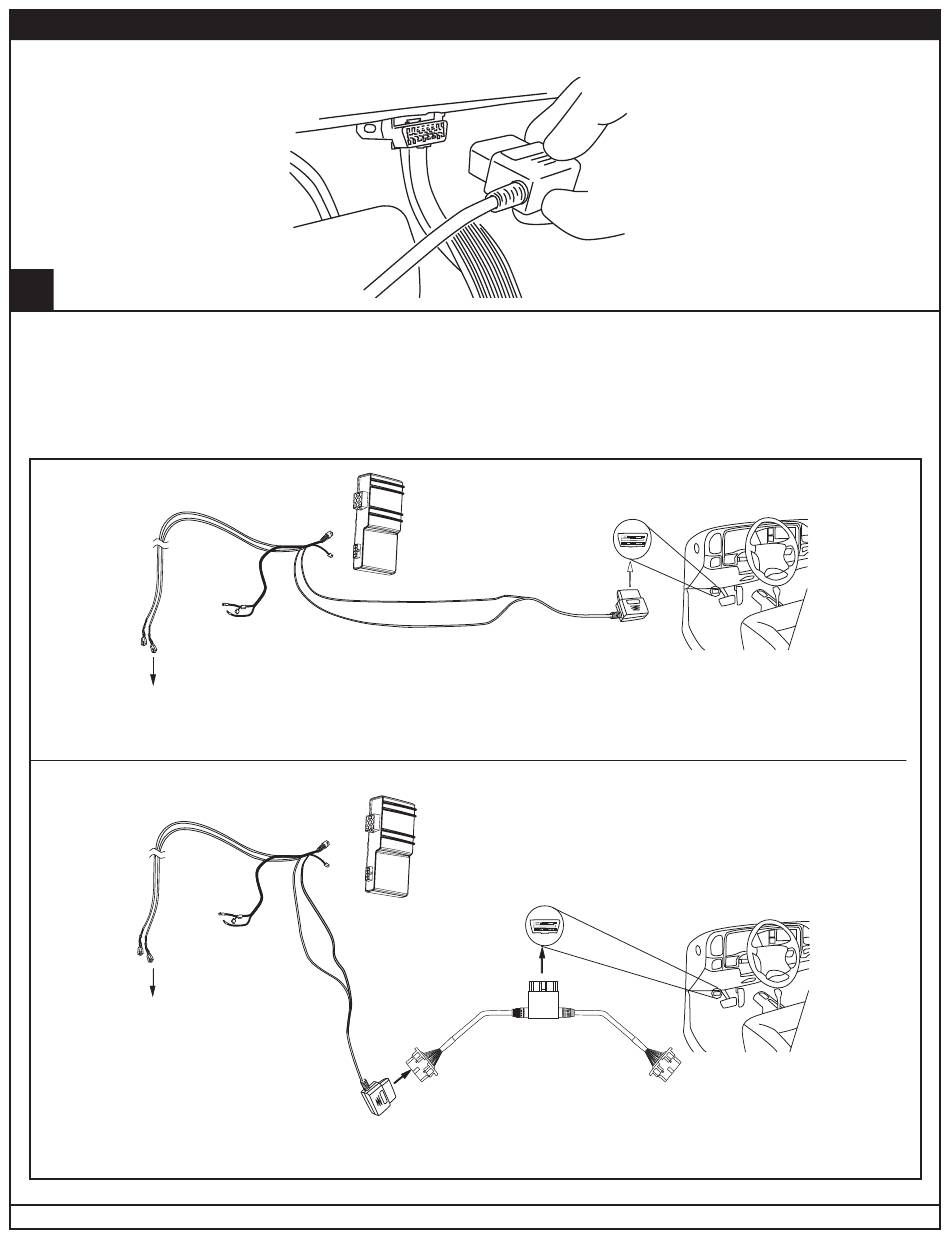

OBD II Connector located below driver side steering column.
23
13
OBD II install: Use Supplied Posi Twist connectors to attach the Plug and Play Module to the
Harness. Attach matching colors on the harness to the wires on the module. Plug in module to
OBD II port on the vehicle. Secure harness with supplied tie wraps.
ness (76404-01A) was purchased see install sheet supplied in packaging. The pass through harness allows for
an open port for other accessories. See below for a brief description.
To Powerstep
Motors
15
To Powerstep
Motors
www.amp-research.com
To Vehicle
Power (12V)
To Vehicle
Power (12V)
Powerstep
Connection Module
– D O D G E D U R A N G O
T M
Powerstep
Control Module
Connection Module
Pass-Through Harness Option
Powerstep
Control Module
Vehicle Port
Vehicle Port
Pass-Through Harness
(pin-topin at each terminal)
10/13
Note: If the OBD II pass thru har-
Vehicle Port
Powerstep
Direct to Port Option
New Vehicle Port
(replaces original port)
IM76331 rev 8.10.18
