4.3 MOGRF main window

4.3 MOGRF main window
The main window of mogrf is shown below. The two channels are
displayed side-by-side, with information and controls that depend
on the current operational mode of each channel.

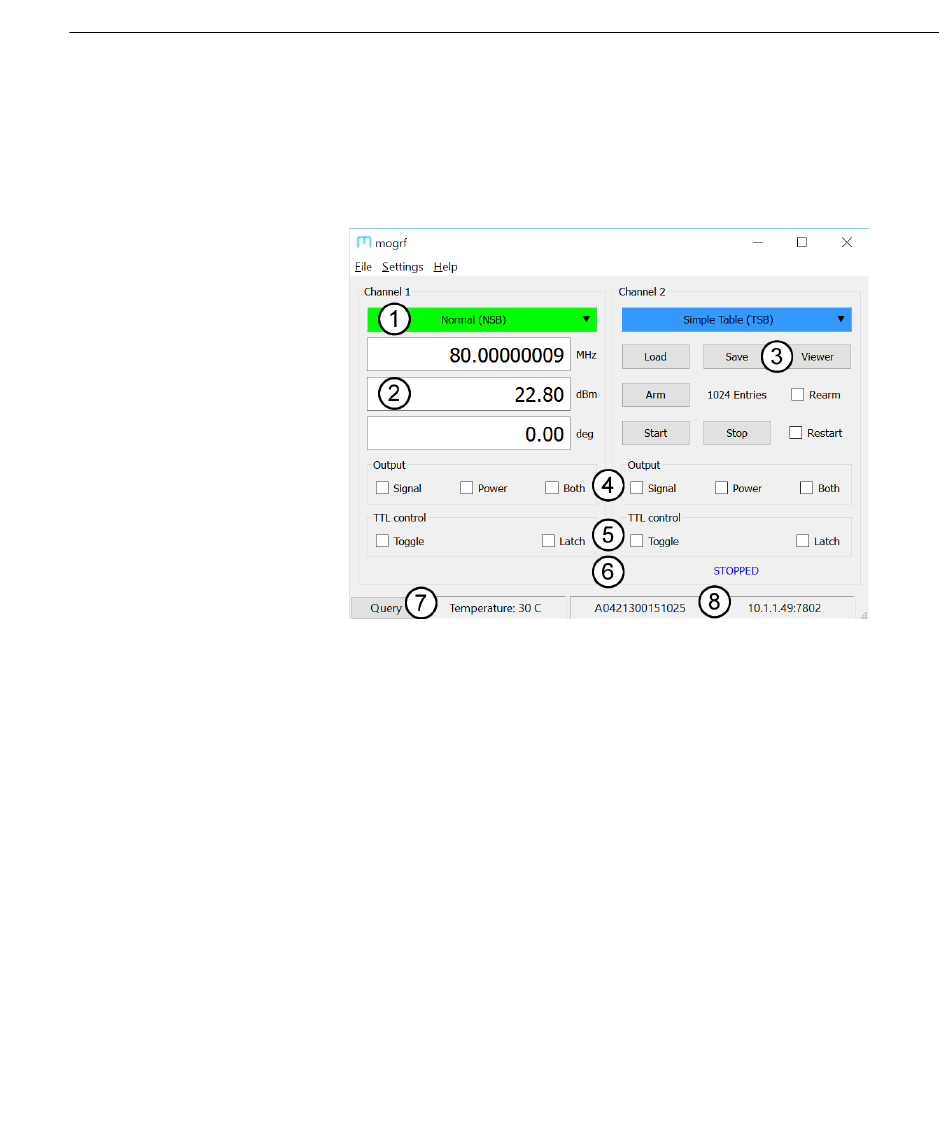

Figure 4.3: The main window of mogrf, showing Channel 1 in normal
(NSB) mode and Channel 2 in simple table (TSB) mode.
The main features of the application are as follows:
1. Current operational mode of the channel. Click to change mode
by selecting from a list. Note that "advanced table mode" will
only appear on
2. Current frequency, amplitude and phase in
ing the value immediately updates the output.
3. Controls are provided for specific table-mode functionality. Ta-
bles can be exchanged with internal
ed/downloaded from the host machine in binary or
(§8.5). Table execution can be started or stopped, auto-restart
configured (§8.6), and a graphical viewer is provided for table
visualisation in
XRF units.
mode (§4.4).
TSB
NSB mode. Chang-
FLASH memory, or upload-
CSV
19
format
