Note: In order to upgrade the "
the upload will appear to succeed but the update will not be installed.

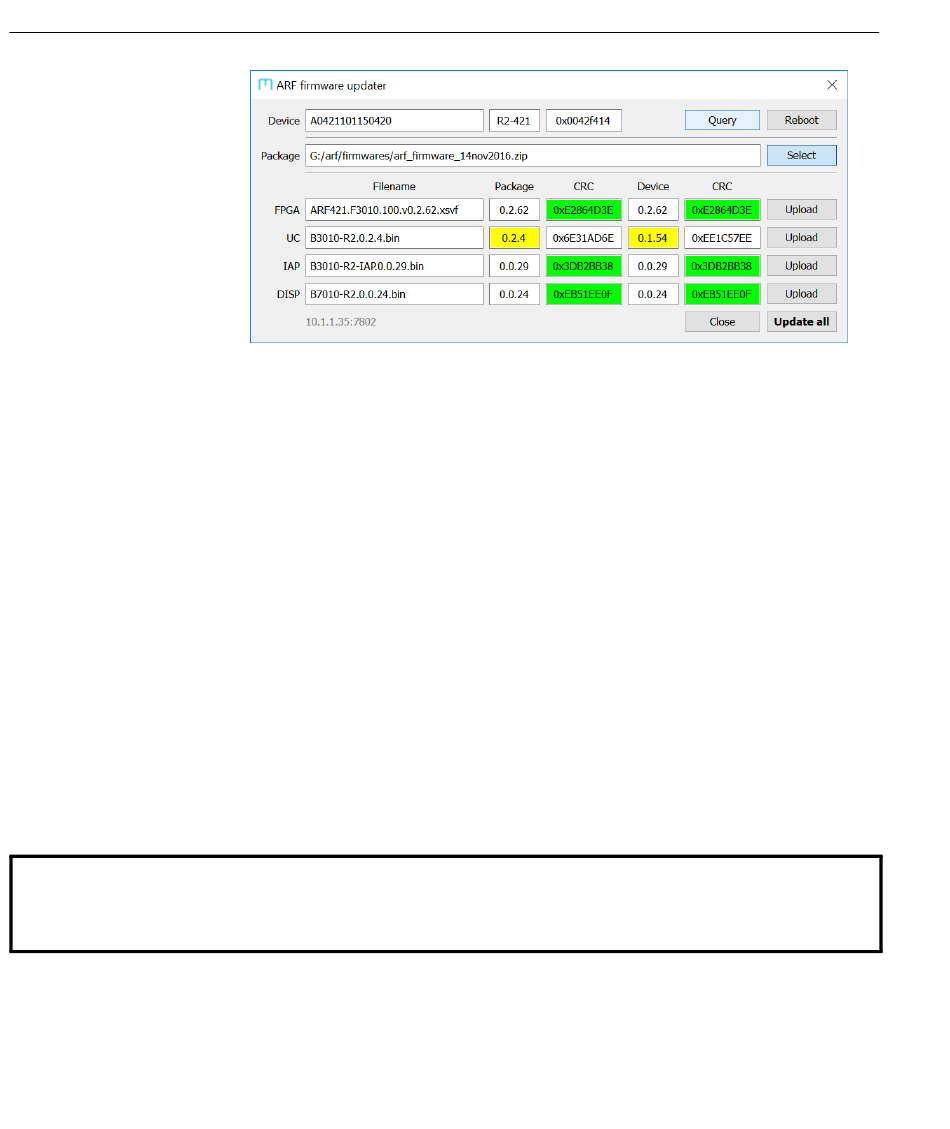

Figure B.2: The mogrffw firmware update application. The versions run-
ning on the device are compared against the selected package, in this
instance showing that an update is available for the UC (yellow) and the
other components are up-to-date (green).
The upload process proceeds through four stages:
1. The FLASH memory is erased to make room for the new image.
2. The data is uploaded to the device.
3. The device checks the data is received for consistency, to en-
sure the upload was successful.
4. The device is rebooted to load the new firmware.
The device will reboot after every individual component upgrade, to
ensure the upload was successful before moving on to the next com-
ponent. mogrffw will automatically try to reconnect to the device.
UC " component,
Appendix B. Firmware upgrades
DIP3 must be set to ON , otherwise
