Chapter 2. Connections and controls
6

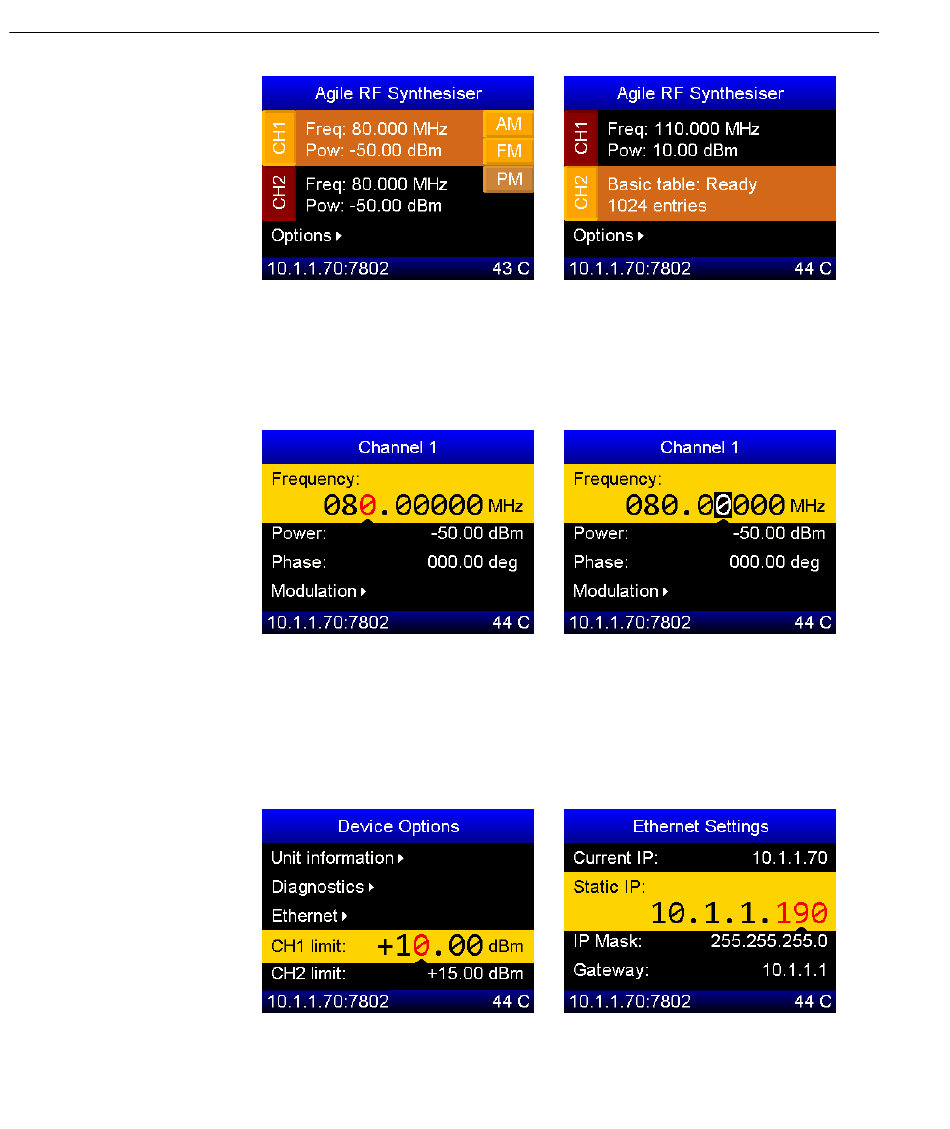

Figure 2.2: The main menu shows the current state of each channel. Left:
both channels are in basic mode, with AM and FM enabled on CH1 , and
PM enabled on CH2 . Right: CH2 is in basic table mode, with the number
of entries in the table shown.
Figure 2.3: The basic parameters of each channel can be edited directly.
Turning the encoder wheel modifies the selected digit of the current value
(left) as indicated by the arrow. Pressing the encoder wheel changes to
digit select mode (right), allowing the selected digit to be changed by
turning the encoder.
Figure 2.4: The options menu allows configuration of various settings,
such as the maximum output power (left) and ethernet options (right).
