Animo primo compact Manual page 17

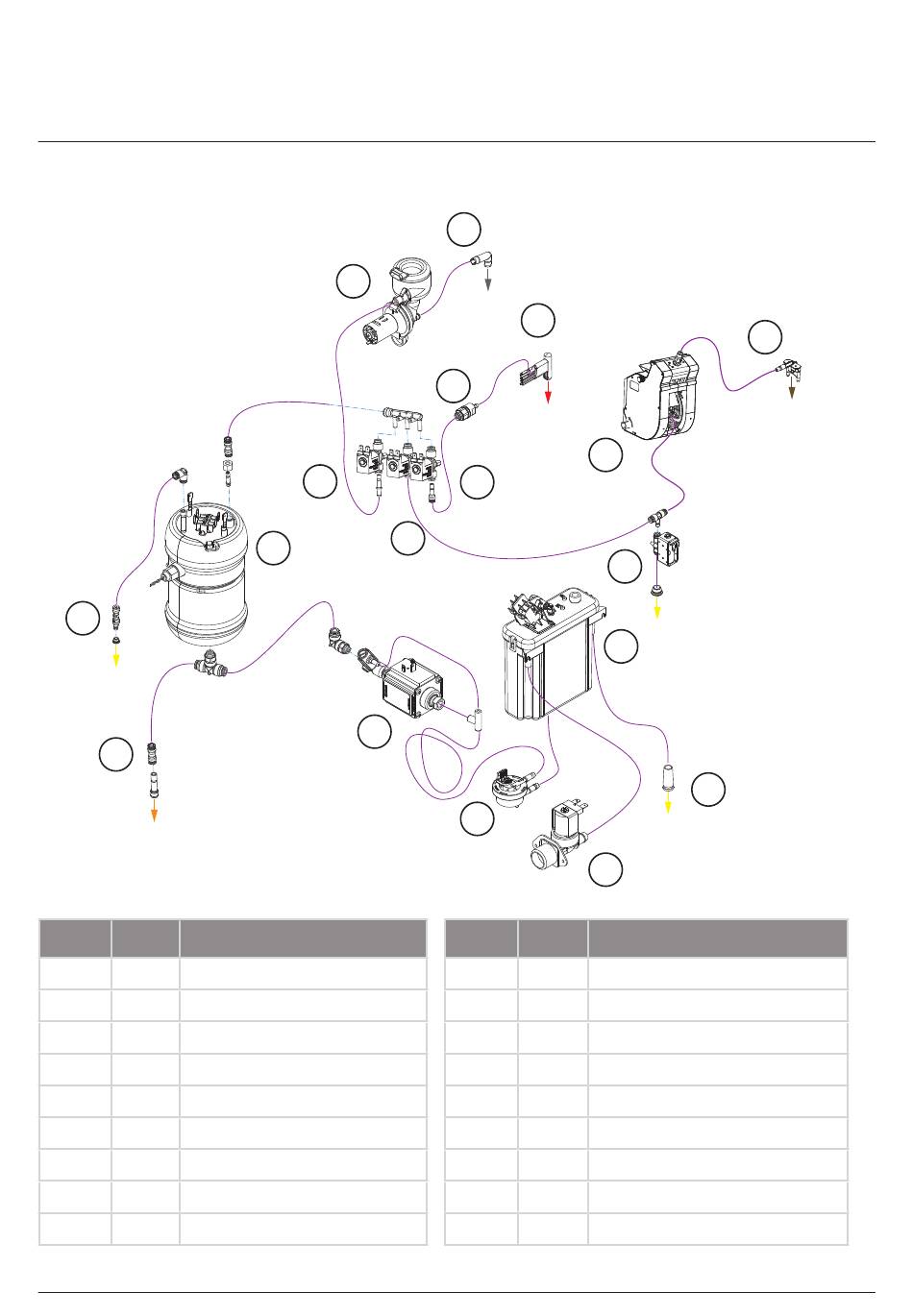

2. Water circuit coffee system 3D
16
17
Item Description
1. KW1 Inlet valve
2. Air break
3. FL1 Flow meter
4. KW2 Pump
5. H2-3 Pressure boiler
6. DV2 Mixer valve
7. MM2 Mixer system
8. Drink outlet
9. DV4 Hot water valve
2019/01 Rev. 0.0
7
6
12
5
4
8
11
10
14
9
13
2
3
1
Item Description
10. Reduction hot water 0,7mm
11. Hot water outlet
12. DV1 Brewer valve
13. DV6 Drain valve (NO)
14. BM Espresso group (reversed)
15. Coffee outlet
16. Pressure relief valve 14 bar
17. Boiler drain
18. Overfl ow air break
