Animo primo compact Manual page 21

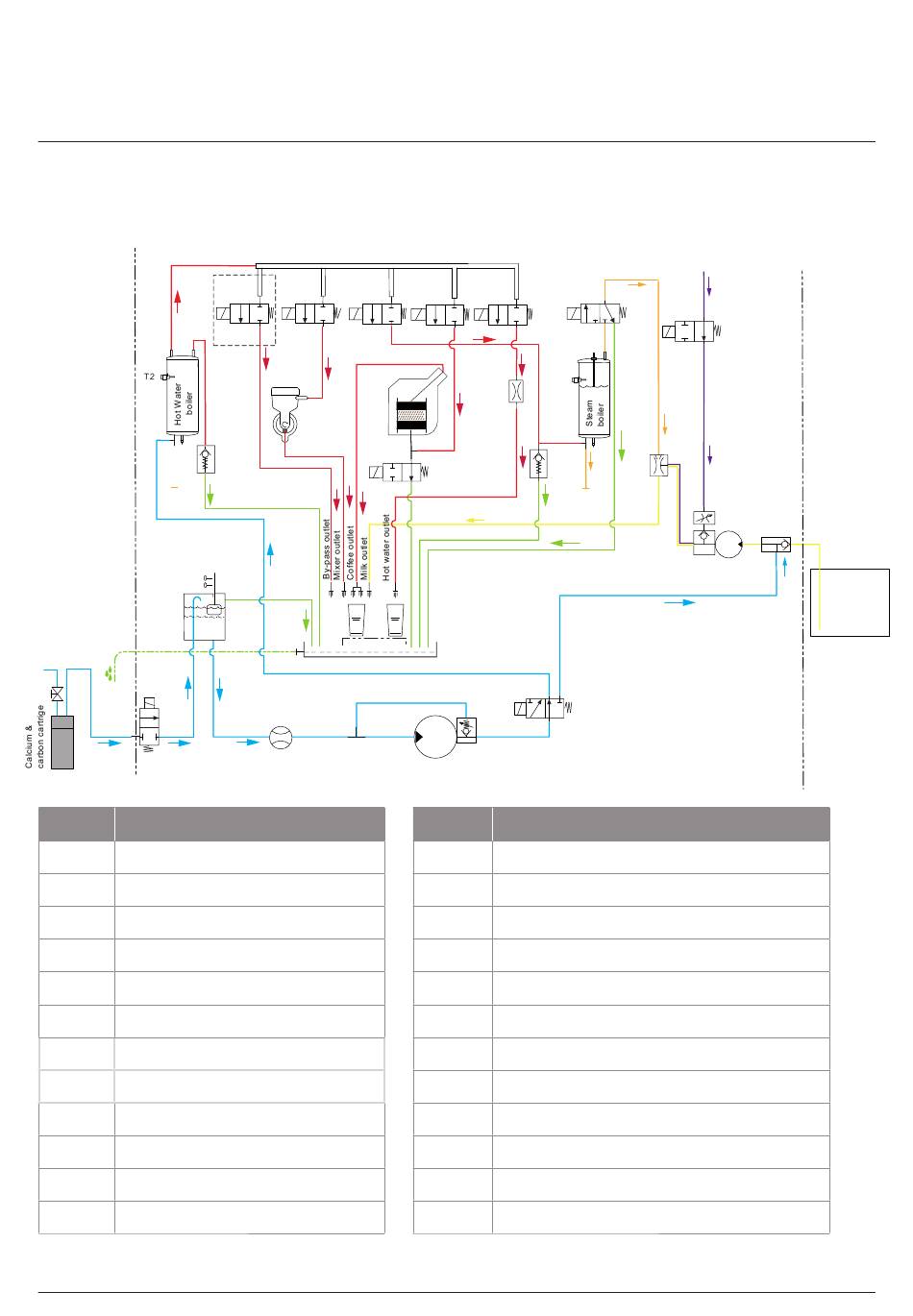

5. Water circuit coffee + Fresh milk system 2D
HOT WATER <95°
STANDARD
BY-PASS
FRESH MILK
NTC
sensor
outside machine
Drain boiler
OM
OM1
Airbreak
Optional
Water
supply
Main
tap
Inlet valve
KW1
Code Description
WF Water fi lter
KW1 Inlet valve
Air break
FL1 Flow meter
KW2 Pump
KW3 Milk system fl ush valve 3 way
H1 Steam boiler
H2-3 Hot water boiler
T1 NTC sensor steam boiler
T2 NTC sensor hotwater boiler
OPV1 Pressure relief valve 14 bar
OPV2 Pressure relief valve 4 bar
2019/01 Rev. 0.0
Steam
Chocolate/
Optional:
boiler
Topping
DV5 DV2 DV3
Bypass
Coffee
Brewer
BM1
MM2
OPV1
DV6
14 bar
Overflow
Drip tray
Flowmeter
FL1
Coffee Hot water
IM6
DV1 DV4
LSH
NTC
Reduction sensor
Ø 0,7mm
T1
OPV2
4 bar
Drain
boiler
MILK
KW3
2/3- way NC
Pump
KW2
Code Description
DV1 Brewer valve
DV2 Mixer valve
DV3 Steam boiler inlet valve
DV4 Hot water valve
Reduction hot water 0,7mm
DV5 Bypass valve (optional)
DV6 Brewer drain valve 3/2 way (N.O.)
IM5 Air inlet valve
IM6 Steam valve 3 way
BM1 Espresso group
MM2 Mixer system
MM3 Milk pump
Air
STEAM >100°
2
IM5
1
1 3
2
Level
sensor
Milk
frother
MILK
Pump
MM3
outside machine
Refrigerator
for fresh milk
19
