Summary of Contents for Animo M200W
- Page 1 M M T T 2 2 0 0 0 0 W W M M T T 2 2 0 0 2 2 W W 2. 5 2. 4 2. 4 1, 2 BO ILE R BO ILE R Manual Animo...
- Page 2 Animo BOILER 12.1 12.2 12.3 BOI LER in gs ....C of .... z ../ ....

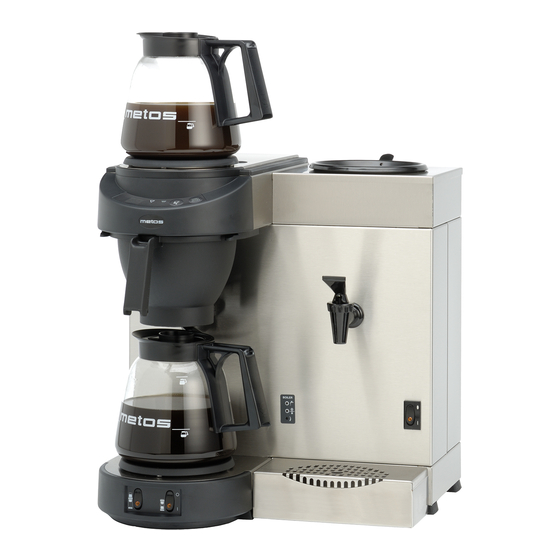

- Page 3 Animo Hot water boiler Animo C o f f e e m a k e r s M200W fig. 1/Abb. 1 Animo Animo C o f f e e m a k e r s C o f f e e m a k e r s...
- Page 4 Animo Animo Animo Hot water boiler MT200W fig. 3/Abb. 3 Animo Animo Animo Animo Hot water boiler MT202W fig. 4/Abb. 4...
-
Page 5: Table Of Contents
Animo Table of Contents Preface ..........23 Introduction . -
Page 6: Preface
This also applies to the accompanying draw- ings and/or diagrams. Animo reserves the right to change parts at any time without giving prior or direct notification to the customer. The con- tents of this manual can also be changed without prior notification. -
Page 7: Introduction
M202W Animo Animo Animo Hot water boiler Hot water boiler Hot water boiler Hot water boiler M200W M202W MT200W MT202W double model double model Purpose of the appliance The sole purpose of this appliance is to make coffee and/or tea. -
Page 8: Safety Instructions And Danger Warnings
Animo Safety instructions and danger warnings This appliance meets the mandatory safety regulations. Inexpert use can result in personal injury and material damage. The following warnings and safety instructions must be observed before using the coffee maker. Instructions for use Read these instructions for use carefully, before using this appliance. -
Page 9: Safeguards
Animo • Wash your hands thoroughly after descaling the appliance. • Always have repairs carried out by a qualified service engineer. • The plug must be taken out of the socket if the appliance has to be opened for cleaning or repairs. -
Page 10: Appliances And The Environment
Animo Overflow safequard The amount of water required is regulated and monitored by flow and level sensors. coffeemaker: If one of the two sensors detects an irregularity, the appliance switches off and both indicator lights will flicker. Water boiler: if the water level of the water boiler reaches the maximum level sensor, the machine will shut off and both indicator lights (12.1+12.2) will start to flicker. -
Page 11: General
Animo 1 1 . . G G e e n n e e r r a a l l A quick look at the appliance The most important parts of the appliance are shown in the fold-out sheet in this manual. -
Page 12: Technical Details
2 2 . . T T e e c c h h n n i i c c a a l l d d e e t t a a i i l l s s Model M200W M202W MT200W... -
Page 13: Installation
The machine has been carefully packed to prevent damage being caused to your new coffee maker. Remove the packing carefully without using sharp objects. Check if the appliance is complete. The appliance is delivered with the following accessories: M200W M202W MT200W MT200W... -
Page 14: Connection To The Water Mains
Animo 3.2.3 Connection to the water mains Connect the appliance using the water hose to an easily accessible aeration tap that can be quickly closed if problems arise. 3.2.4 Water drainage (18) If the reservoir of the coffeemaker is overfilled owing to a defect, the excessive water will be discharged via the water drain (18) at the bottom of the appliance. -
Page 15: Setting The Descale Indicator
Animo 3.2.6 Setting the descale indicator Scale deposits are left in the heating system when the appliance is used. The amount of scaling depends on the hardness of the water being used. The coffeemaker is fitted with a descale indicator light (5.2), which lights up when the heating system has processed a certain quantity of water and has to be descaled. -
Page 16: Daily Use
Animo 4 4 . . D D a a i i l l y y u u s s e e When using the appliance you may find that certain settings do not entirely match your requirements. • Chapter 5 explains how all settings can be adjusted by qualified personnel. -
Page 17: Making Coffee
Animo Making coffee Place a sheet of basket filter paper containing the desired amount of coffee (fast filter type) in the basket filter. See the table above for the amount of coffee required. A level coffee measure is approximately 80 grams. -
Page 18: Water Boiler
Animo Water boiler The appliance is fitted with a water boiler (9) suitable for drawing off small amounts of hot water. The water boiler is refilled automatically and kept at the right temperature. Switch the water boiler on using the on/off switch (13). The light in the switch will light After approx. -
Page 19: Setting Of The Display Ot Show Cups Of Litres
Animo Setting of the display to show cups or litres The appliance is factory set to display the number of cups. If you want the display to show litres, you can adjust it as follows: 1. Press the selection button (5.4) and hold it in, then press the start/stop button (5.5) once. -
Page 20: Maintenance
The thermos jug, thermos jug with pump and the filter can be rinsed with hot water. The coffee deposit in the coffee jugs and the filter can be cleaned with Animo coffee fur remover. The appliance is supplied with one sachet of coffee fur remover. -
Page 21: Descaling
Slide an empty basket filter (3) and place an empty jug under it. Remove the cap (8) and place the funnel (supplied) into the descaling opening. Dissolve one 50 gram sachet of Animo descaling agent in 0.5 litre of warm water (approx. 60-70˚C). -
Page 22: Switching-Off The Descaling Indicator Light
6.2.3 Descaling the water boiler Before descaling the water boiler, carefully read the instructions for using the descaling agent. We advise you to use the tested Animo descaling agent. Switch the water boiler off when the temperature ok indicator light (12.2) is on. -
Page 23: Troubleshooting
Animo Troubleshooting WARNING • Have all repairs to the electrical system performed by a qualified service technician. If your appliance is not functioning correctly, use the troubleshooting guide below to see whether you can resolve the problem yourself. If not, please contact your dealer. - Page 24 Animo Troubleshooting guide coffee making selection Symptom: Possible cause: Action: The coffee is not hot enough There is no lid on the jug. Use the lid. The jug is too full or is The set quantity is too high. Lower the quantity.
-
Page 25: Ordering Consumer Articles And Accessories
08090 Water measuring cup 2 ltr. 08341 Glass jug 1.8 ltr 08208 Thermos container 2.4 ltr. 50241 Drip tray thermos container 07942 Stainless steel drip tray 12699 M200W Stainless steel drip tray 12698 MT200W Funnel 07947 Water connection hose 08165... - Page 26 Animo Tabel for setting the amount of coffee see chapter 5.1 Program Water volume Ltr. Display = Ltr. 1,00 1,04 1,08 1,12 1,16 1,20 1,24 1,28 1,32 1,36 1,40 1,44 1,48 1,52 1,56 1,60 1,64 1,68 1,72 1,76 1,80 1,84...
- Page 27 Animo Animo B.V. Headoffice Dr. A.F. Philipsweg 47 P.O. Box 71 9400 AB Assen The Netherlands Tel. no. +31 (0)592 376376 Fax no. +31 (0)592 341751 E-mail: info@animo.nl Internet: http://www.animo.nl A A c c c c r r e e d d i i t t e e d d b b y y...
