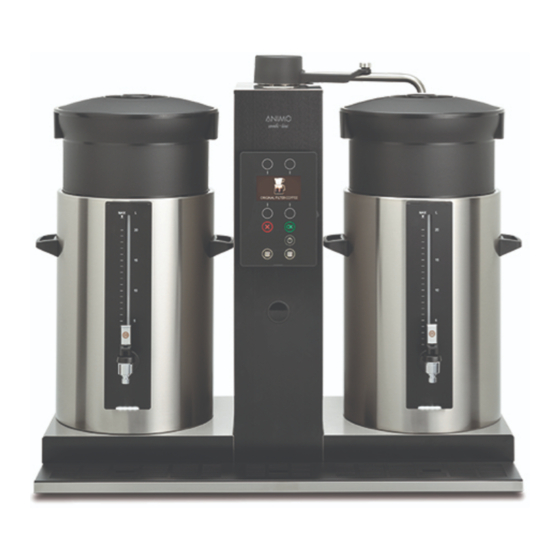

ComBi-Line
ComBi-Line
Model 2017
Machine with taste
servicebook

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ComBi Series 2017 and is the answer not in the manual?

Questions and answers

Related Manuals for Animo ComBi Series 2017

Summary of Contents for Animo ComBi Series 2017

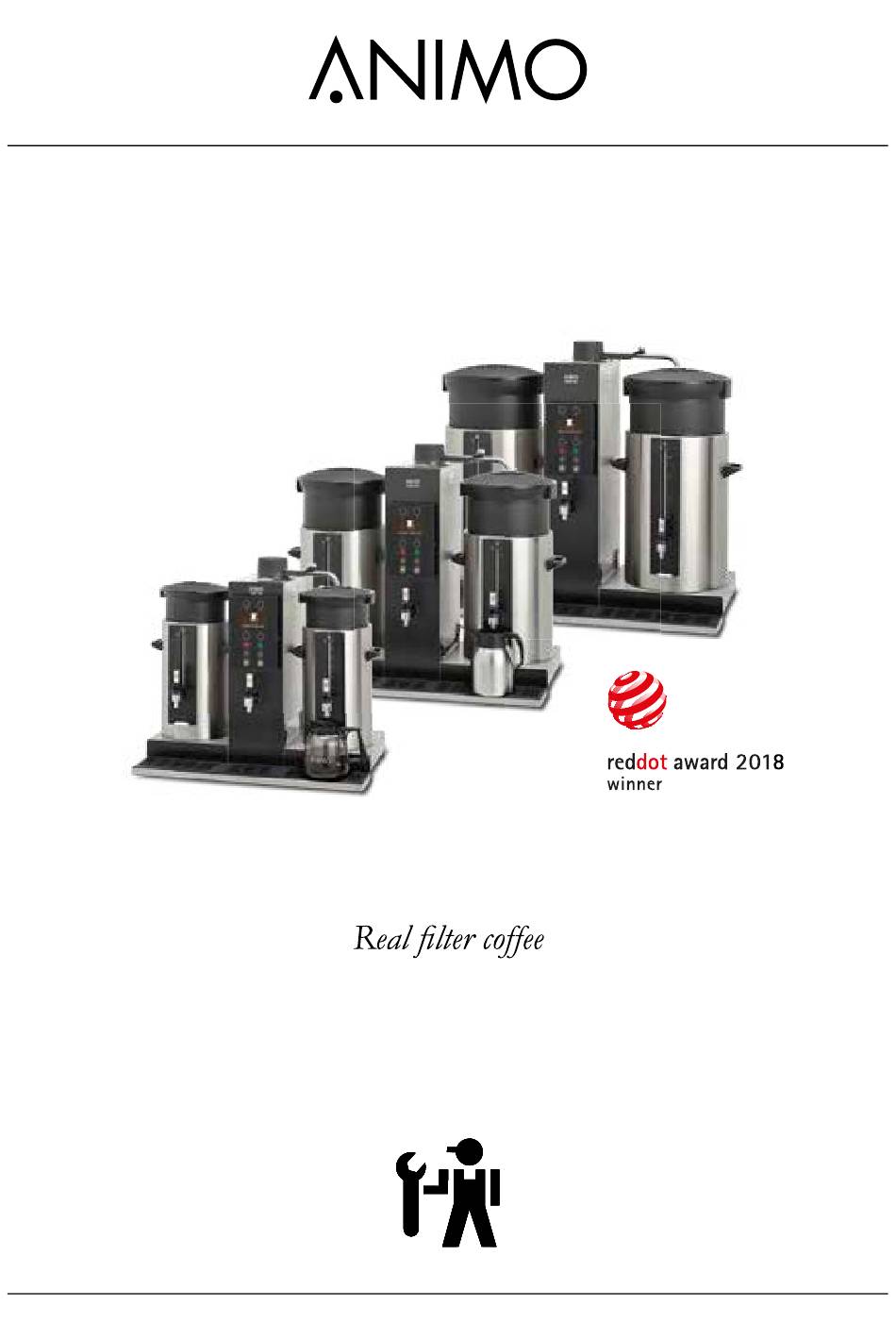

  • Page 1 ComBi-Line ComBi-Line Model 2017 Machine with taste servicebook...

  • Page 2: Table Of Contents

    ComBi-Line TABLE OF CONTENTS FOREWORD ..........................4 1. FIRST-TIME INSTALLATION ....................5 2. PRINCIPLE OF OPERATION ....................7 3. WATER MANAGEMENT ......................8 4. COMPONENTS ........................9 5. WORKING PRINCIPLE ......................11 Brew system ........................11 5.2 Hot water system ....................13 6. CONTROL PANEL ........................ 15 Construction of the control panel ................
  • Page 3 ComBi-Line 2017/05 Rev. 0.0...

  • Page 4: Foreword

    ComBi-Line © 2017 Animo® All rights reserved. No part of this document may be reproduced and/or made public in print, microfilm, electronic media or any other form without the manufacturer’s prior consent. This also applies to the corresponding diagrams and/or charts. FOREWORD Purpose of this document This document is intended to be used as a service appendix in addition to the user manual with which authorised trained service personnel can install, program and maintain this machine.

  • Page 5: First-Time Installation

    ComBi-Line FIRST-TIME INSTALLATION After connecting the machine to the water mains and electricity, the built-in ‘First-time installation’ menu helps you to start up the machine. Firstly, all the important menu settings appear. Secondly, the brew system and the hot water system (optional) are commissioned step by step. This installation menu can also be manually activated in the service menu: 2.10 START INSTALLATION MENU Before switching on the machine, make sure that the containers are empty, the stainless steel...
  • Page 6 ComBi-Line Display Menu item explanation Set the unit of the ground coffee dosing to ‘grams/litre’. This is necessary for the coffee calculator, which advises you about the amount (in grams) to be dispensed into the basket filter. COFFEE DOSING G/L - very coarse lightly roasted coffee: approximately 55-60 grams/ litre - coarse coffee: approximately 45-50 grams/litre - quick filter coffee: approximately 40-45 grams/litre...

  • Page 7: Principle Of Operation

    ComBi-Line PRINCIPLE OF OPERATION Item Description Item Description Swivel arm Hot water tap Level sensors brew system Drain hot water system Cold water reservoir lid Boil-dry protection hot water system Level sensors hot water system Inlet valve (cold water only) Cold water reservoir brew &...

  • Page 8: Water Management

    ComBi-Line WATER MANAGEMENT cold water cold water Swivel arm water reservoir reservoir boiler hot water boiler brew system Flow heater NTC sensor Water tap Inlet valve Water supply Flowmeter Main tap 3/4 “ Drain 3/8 “ brew system Drain hot Inlet valve water boiler Calcium &...

  • Page 9: Components

    ComBi-Line COMPONENTS Component Image Inlet valve [1006106] Opens and closes the water supply, 24 Vdc coil closure. Water flow is approximately 3 litres/min. Double inlet valve [1006107] Opens and closes the water supply, 24 Vdc coil closure. Boiler: left / water flow is approximately 1.5 litres/min. Coffee: right / water flow is approximately 3 litres/min. Flow heater Manufactured entirely from the material AISI 304. (excluding the boil-dry protection) Heating element CB5 H1 [03221] 3x230/400 V 3000 W Heating element CB10 H1 [03222] 3x230/400 V 6000 W...
  • Page 10 ComBi-Line Component Image Cold water reservoir [07971] + lid [12349] with level sensors for the brew system only (models CB) The left side is used for the cold water inlet for the coffee system. Cold water reservoir [07971] + lid [12348] with level sensors for the brew system and the hot water system (models CB W) The left side is used for the cold water inlet for the coffee system.

  • Page 11: Working Principle

    Switch on the machine with the on/off switch [11]. The display shows the Animo logo, shortly followed by the start screen: Press OK [6] to begin. The Animo Logo can be replaced by your own logo. See chapter 9.1 for detailed instructions.
  • Page 12 ComBi-Line Coffee volume control The amount of water that has flowed in is continuously measured by the flowmeter [G]. If the set amount of water is reached, the solenoid valve [G] stops refilling and the water level drops. After the minimum level sensor [B] is detached, the flow heater [E] is switched off and the drip-out time becomes active. Filter coffee process The coffee runs from the basket filter unit [J] through the coffee blender into the container, where it is kept hot by the heating element [N]. The amount of coffee can be measured using the gauge glass. The coffee can be poured into cups or jugs using the coffee tap [L]. Container heating [9 and 10] When a brew process is started, the correct wall socket will be switched on automatically.

  • Page 13: Hot Water System

    Cold water reservoir Steam escape ON/OFF Switch on the machine with the on/off switch [11]. The display shows the Animo logo, followed by the screen: Press OK [6] to begin. First-time fill-up Press the on/off button [7] of the hot water system. The inlet valve [H] opens and the water flows into the cold water reservoir [K].
  • Page 14 ComBi-Line Draining hot water The hot water can be drained using the hot water drainage tap [I]. The water reservoir is automatically refilled (in charges) and kept at the set temperature. The heating system works according to the so- called charge filling-and-heating system. This means that after drawing a large quantity of hot water, the boiler is not refilled with cold water in one go, but in smaller charges. The boiler fills for a maximum of 30 seconds with fresh water (approximately 0.75 litres). This water is first heated to the set temperature. The boiler repeats this 30-second filling-and-heating cycle until the boiler is completely full. This system enables the user to have some hot water again in a short time. Switching on the continuous heating function The temperature of the hot water can be changed in the settings menu.

  • Page 15: Control Panel

    ComBi-Line CONTROL PANEL The buttons have different functions during normal operation and during an activated operator menu or service menu. Button During normal operation During menu operation Brew volume selection Walk up / increase value Brew volume selection Walk down / decrease value Brew volume selection Brew volume selection Stop button...

  • Page 16: Construction Of The Control Panel

    ComBi-Line Construction of the control panel The control panel [1.3] is equipped with capacitive buttons. A mere touch of your finger on the button areas of the control panel leads to an action. This is called ‘capacitive sensing technology’ and is based upon the constant monitoring of the electrical capacity of the touch area, which can be changed by a human finger.

  • Page 17: Removing The Control Panel

    ComBi-Line Removing the control panel The control panel can be easily removed from the front part of the machine. If the interface board [1.1] (see previous page) must be replaced, the new board is already equipped with the latest software by the factory. After restarting the machine, the automatic ‘Installation menu’ starts.

  • Page 18: Flow Heater System

    ComBi-Line FLOW HEATER SYSTEM When a flow heater [1] is switched on, the water is heated until it has reached the boiling point (100 °C). The hot water automatically goes up into the swivel arm and makes way for fresh cold water from the cold water reservoir, which is connected to the inlet. The continuous flow water heater is activated. No temperature regulation is necessary. The water from the boiled water output (top) [1.1] is always at the boiling point.

  • Page 19: How Does The Boil-Dry Protection Work

    ComBi-Line How does the boil-dry protection work Scale Hot water The flow heater is protected against overheating and Cold water dry-boiling. The dry-boil protection bulb [2.1] is pushed Co ee in the pocked tube [1.2], which is located in the lower part of the flow heater (see previous page). Always connect the machine to a cold water ...
  • Page 20 ComBi-Line The effects of low water level Hot water Visual signs on the swivel arm outlet: Warm water Cold water • no water flow Co ee • high steam generation • dry boil protection is activated A low water level may occur when the flow heater does -2° not receive water anymore because the cold water ...

  • Page 21: How To Determine The Flow Speed

    ComBi-Line How to determine the flow speed Flow speed Each flow heater operates at its own flow speed (litres/min.). Model Art. no. Watt Flow speed Volume* Dispensing time 03221 3 kW appoximately 0.5 litres/min 5.3 litres appoximately 11 mins CB10 03222 6 kW appoximately 1.0 litres/min 10.8 litres appoximately 11 mins CB20 03223 9 kW...

  • Page 22: How To Get Access

    ComBi-Line How to get access? If the machine is switched on: Switch off the machine. Switch on the machine. When you see the ‘opening’ screen... Immediately tap the top selection button Immediately tap the top selection button on the right to access the operator menu on the left to access the service menu.

  • Page 23: The Operator Menu And The Service Menu

    ComBi-Line The operator menu and the service menu Operator menu and service menu Default Main item Subitem Range Description setting Operator menu Daily coffee counter: Counts the DAY COUNTER BREW xxxxx amount (in litres) of coffee made. COUNTERS SYSTEM RESET DAY COUNTER Service menu Reset the daily coffee counter.
  • Page 24 ComBi-Line Operator menu and service menu Default Main item Subitem Range Description setting Operator menu Check how many litres of coffee can DESCALE be made before the descaling signal COUNTER BREW SYSTEM xxxxx is activated. Service menu Reset the descaling counter signal DESCALE without running the descaling RESET COUNTER BREW...
  • Page 25 ComBi-Line Operator menu and service menu Default Main item Subitem Range Description setting Operator menu NEDERLANDS SYSTEM ENGLISH SETTINGS DEUTSCH Service menu FRANCAIS Select the language. English is the LANGUAGE SYSTEM factory language. SUOMI SETTINGS SVENSKA NORSK ITALIANO Time HH:MM Set the clock to the correct local time and date.
  • Page 26 ComBi-Line Operator and service menu Default Main item Subitem Range Description setting Set the brightness of the display Operator menu BACKLIGHT backlight when it is in the dim 20% - 100% DISPLAY SYSTEM mode. SETTINGS Set the time when the display must Display dim 10 - 360 s dim.
  • Page 27 ComBi-Line Operator and service menu Default Main item Subitem Range Description setting Operator menu This function can be used when SYSTEM the machine is in a showroom SETTINGS or at a trade fair. In these cases, the machine does not have to be DEMO MODE connected to a water supply.
  • Page 28 ComBi-Line Operator and service menu Default Main item Subitem Range Description setting Operator menu The flow heater dispenses extra water (depending on the model, BREW SETTINGS 6-10% extra) to compensate for the water that stays behind in the ground 4800 - 5800 ml 5300 WATER coffee.
  • Page 29 ComBi-Line Operator and service menu Default Main item Subitem Range Description setting Operator menu When a brewing process starts, the BREW container heating is automatically AUTOMATIC CONTAINER YES/NO SETTINGS switched on. The container heating HEATING can be switched off manually only. Service menu Set the amount of litres at which the BREW...
  • Page 30 ComBi-Line Operator and service menu Default Main item Subitem Range Description setting Set the filter dripping time: The Operator menu FILTER 240 S time after which the flow heater DRIPPING CB10 0-900 S 300 S BREW SETTINGS has stopped and the filter has TIME [S] 360 S CB20 stopped dripping. Activate this option to improve the Service menu taste and aroma extraction during ACTIVATION...
  • Page 31 ComBi-Line Operator and service menu Default Main item Subitem Range Description setting Operator menu Set the boiler unit to Fahrenheit or °F / °C °C Celsius. HOT WATER SETTINGS Set the boiler temperature. When 97.0+ °C is set, the boiler heats for an TEMPERATURE 60.0-97.0+ extra 50-80 seconds, depending on...
  • Page 32 ComBi-Line Operator and service menu Main item Subitem Range Description CONTAINER LEFT + RIGHT Operator menu CONTAINER RIGHT ONLY Select the model type of the LOADING MODEL TYPE machine. FACTORY CONTAINER LEFT ONLY DEFAULTS WITHOUT CONTAINER Operator menu Use the PIN CODE 4 3 2 3 3 to enter the service menu.
  • Page 33 ComBi-Line Operator and service menu Main item Subitem Model Model type Description CONTAINER LEFT + MODEL CB5 RIGHT Use this menu item to Service menu CONTAINER RIGHT MODEL CB10 ONLY select the exact model of LOADING YES/NO the machine. The software CONTAINER LEFT FACTORY MODEL CB20...

  • Page 34: Software

    JPEG File size: 64 Kb The uploaded image will overwrite the Animo logo. When the uploaded image is removed, the Animo logo becomes active again. 1. Prepare an image which complies with the specifications. Prepare a folder named LOGOS (in capital letters) and place your image in this folder.

  • Page 35: Upload Dealer Information

    ComBi-Line Upload dealer information It is possible to upload your dealer information with an SD card. This information appears when the machine shows an error. 1. Use Wordpad or Editor to write a sentence: Call [company] + [telephone number]. 2. Save the file as DEALER INFO.TXT. UPDATE IN PROGRESS 3.

  • Page 36: Software Installation

    • A non-standard language file will be overwritten by the standard language file NL/GB/DU/FR. Counts, log and operating hours will be preserved! UPDATE IN PROGRESS 1. Download the ComBi-Line software from the Animo extranet site. 2. Unpack the ZIP file and copy all files into an empty SD card. 3. Switch off the machine. 4. Open the rubber cover located below the on/off switch.

  • Page 37: Maintenance

    2 measuring cups of approximately 2 litres each. Preparation • Carefully read the caution notice and the directions for use on the sachet of Animo descaler. • Dissolve 2 sachets of 50-gram Animo descaler into 2 litres of warm water (max. 60 °C).

  • Page 38: Descaling The Brew System

    ComBi-Line 10.1 Descaling the brew system Enter the descaling menu via the service menu. An overview of all descaling instructions appears in the display. The descaling signal will automatically reset after the descaling program has ended. The water circuit below shows what happens inside the machine during the intake of the descaler liquid.

  • Page 39: Descaling The Hot Water System

    ComBi-Line 10.2 Descaling the hot water system Enter the descaling menu via the service menu. An overview of all descaling instructions appears in the display. The descaling signal will automatically reset after the descaling program has ended. The water circuit below shows what happens inside the machine during the intake of the descaler liquid.

  • Page 40: Transport And Storage

    ComBi-Line TRANSPORT AND STORAGE Please do the following before transporting and/or storing the machine. WARNING • The drain water can be HOT! 1. Switch off the device and remove the plug from the wall socket. 2. Close the water supply tap and disconnect the water connection tube. 3.

  • Page 41: Electronics Summary

    ComBi-Line ELECTRONICS SUMMARY WARNING During repairs or maintenance work, avoid electrostatic discharge (ESD) on the control unit. • Main PC board ...........9.1 • Interface/display ..........9.2 • Power supply 100-240 Vac / 24 Vdc 60 W ..9.3 12.1 Main PC board This main PC board is the main control unit of the device and it is accessible by removing the left side panel.

  • Page 42: Main Circuit Board Inputs

    ComBi-Line 12.1.1 Main circuit board inputs interface Connector CN100 board Sensor Colour Notes 1 - 8 signal Black all signals from front to main board Combi line control MAIN CN100 Connector K4 boiler sensors (level & temp.) boilers Sensor Colour Notes sensors min.

  • Page 43: Main Circuit Board Outputs

    ComBi-Line 12.1.2 Main circuit board outputs interface Connector K3 coffee sensors board Motor Colour Notes Combi line min coffee level Brown control MAIN CN100 min coffee level White co ee container sensor left Blue boilers sensors container sensor right Orange sensors swivel arm sensor left White...

  • Page 44: Interface And Display

    ComBi-Line 12.2 Interface and display The interface connects all the components located in and on the door and is connected to the main control by a cable. Interface and display Conn Notes Display connection Front key panel Main control Batt Back-up battery SD card slot Front interface + cappacitive panel...

  • Page 45: Power Supply

    ComBi-Line 12.3 Power supply The 24-Vdc supply consists of a switched power supply of 24 Vdc – 60 W and can be accessed by removing the back part of the machine. • During an overload, the power supply is switched off automatically.

  • Page 46: Fault Analysis

    ComBi-Line FAULT ANALYSIS WARNING • When carrying out repairs and cleaning the device, the plug should always be removed from the wall socket before the device is opened. Preface Before searching for the defect, check if all parts are in their correct positions. To do this, remove the backplate of the device and make sure that all printed circuit boards, connectors, wire beams and pipes are mounted correctly.

  • Page 47: Display And Button Signals During Use

    ComBi-Line 13.3 Display and button signals during use Signal Possible cause Solution The OK button blinks. The energy safe mode of the boiler Select OK to activate the boiler again. is activated. The boiler button blinks. Wait until the boiler has been refilled and The boiler is heating heated.

  • Page 48: Troubleshooting

    ComBi-Line 13.4 Troubleshooting Errors marked with  can hold extra dealer information about whom to call if an error pops up. See chapter 9.2 to see how to upload dealer information. The codes printed between clamps [..] are the old errors codes from the ComBi-Line model year 2005-2017.
  • Page 49 ComBi-Line Display Possible cause Solution The temperature protection 202 [B2] does not conduct all of the three BOILER HEAT-UP Check all three contacts for continuity. contacts controlling the neutral of TOO SLOW each heater element. Attention: The boiler heaters start alternately during start- up and when reaching the set temperature.
  • Page 50 ComBi-Line Display Possible cause Solution Check the silicon tube connection between the  204 [B7] cold water reservoir and the hot water reservoir BOILER MINIMUM for air bubbles or other obstructions. ELECTRODE FAULT After 10 minutes of trying to fill 205 [B8] during error 203 [B3], the inlet Press the X button to restart the machine.
  • Page 51 ComBi-Line Display Possible cause Solution interface board The temperature protection 206 [C2] Combi line does not conduct all of the three control MAIN BREW SYSTEM Check all three contacts for continuity. CN100 contacts controlling the neutral of HEAT-UP TOO SLOW each heater element.
  • Page 52 interface board ComBi-Line Combi line control MAIN CN100 boilers Display Possible cause Solution sensors Check if the red LED blinks when the water inlet valve (lower LED K1) is activated. boiler If no impulses arrive, check/replace the flow relays meter and the connection cable. There is a fault in the water flow meter signal. meter 211 [C9] The flow meter impulses do not...
  • Page 53 ComBi-Line 2017/05 Rev. 0.0...
  • Page 54 ComBi-Line 2017/05 Rev. 0.0...
  • Page 55 ComBi-Line 2017/05 Rev. 0.0...
  • Page 56 ComBi-Line Animo B.V. Dr. A.F. Philipsweg 47 9403 AD Assen The Netherlands Tel.: +31 (0) 592 376376 Fax: +31 (0) 592 341751 E-mail: info@animo.nl www.animo.eu Rev. 0.0 06/2017 Art.nr 1006856...
