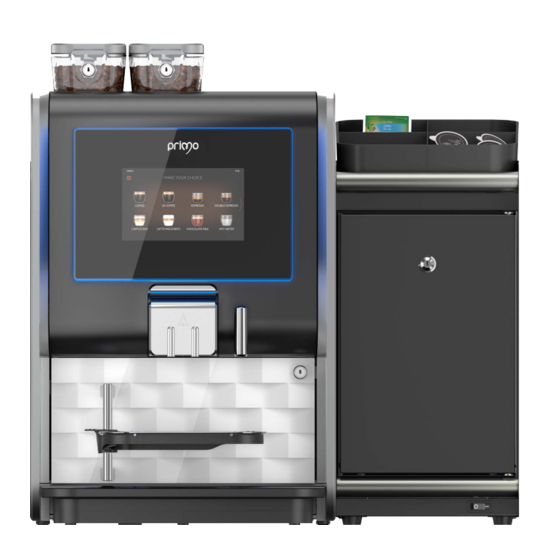

Animo primo compact Manual
  1. Manuals
  2. Brands
  3. Animo Manuals
  4. Coffee Maker
  5. primo compact
  6. Manual

Animo primo compact Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the primo compact and is the answer not in the manual?

Questions and answers

Related Manuals for Animo primo compact

Summary of Contents for Animo primo compact

  • Page 2 3..Safety Instructions & Environmental Information 9..Milk System 14..Principles of Operation 20..Software Installation 26..Technical Data 31..Troubleshooting and Errors...

  • Page 3: About This Manual

    Use of the appliance for any other or additional purposes is considered as in non‑conformity with the intended use of the appliance. Animo will not accept any liability for damage and/or injury arising from non‑conforming use of the appliance.

  • Page 4: Identification Plate

    Additional safety instructions may be required, depending on the local regulations in place where the appliance is installed. Animo is not responsible for any damages caused by improper or irrational use. Any other use than the intended use is inappropriate and/or dangerous.
  • Page 5 Unplug the appliance before cleaning and maintenance. Toxic substance hazard Do not use any Animo Appliances with liquids or substances that are unsafe or of unknown quality. Do not drink the liquids dispensed during the cleaning process. Storage and transportation When transporting the appliance: ...

  • Page 6: Before Installation

    All modifications to the mains power cable plug should be done by a qualified electrician. WARNING! The Animo appliance has to be fused, either in the plug or elsewhere in the circuit. CAUTION! Do not tilt the appliance more than 5° during transport or use.

  • Page 7: Before Use

    Before use, check the Animo appliances for completeness and damage. Damage must be repaired by Animo, its dealer or other qualified professionals. Using the appliance  The Animo appliances should not be used by the following persons, unless they are supervised or instructed on how to safely use the appliance: ‐ Children ‐...

  • Page 8: Cleaning The Appliance

    If your appliance uses fresh milk products, make sure that you:  Avoid contamination by working hygienically.  Use a sanitizing solution approved by Animo, according the cleaning instructions.  Wash your hands thoroughly before cleaning the appliance.  Wear safety gloves.
  • Page 9 Always use the original Animo components. Appliance recycling and disposal Packaging material Return the cardboard and polystyrene packaging material to your Animo dealer or inform at your local disposal authority how it should be disposed. Refrigerant Some of the Animo appliances contain refrigerant fluid. Refrigerant must not be disposed of with normal waste.
  • Page 10 Disposal Ensure disposal is compliant with local legislation, regulations, instructions and precautions concerning health, safety and environment. Make sure to dispose or recycle the following materials in an environmentally-friendly manner:  All plastic parts are marked with a recognizable code for recycling. ...

  • Page 11: Milk System

    Milk system • OptiMe with Fresh Milk option • Refrigerator Content 1. Basics 2. Milk variations 3. Calibration milk temperature 4. Calibration milk volumes 1. Basics Steam Cold Cold milk is transported from the refrigerator [7] by a water gear pump [5] to the milk frother [4]. The milk is heated with steam [1].
  • Page 12 2. Milk variations Steam Cold water Cold milk Cold milk is made by pumping [5] cold milk [7] from the refrigerator trough the milk frother [4] into the cup. Cold Milk Milk frother Milk pump Steam Cold Warm milk water Warm milk is made by puming [5] cold milk [7] from the refrigirator towards the milkfrother [4].
  • Page 13 3. Calibration milk temperatures By setting the milk pump speed you can set the perfect milk temperature from the warm milk and milk foam. Navigate to menu 2.00.01 in the service menu Button [A] starts and stops the milk dispensing- and heating process.
  • Page 14 Calibrate the milk foam temperature Tools needed: • Electronic thermometer with fast response sensor 1. Fix the fast response temperature sensor in the milk outlet. 2. Place a collection tray under the outlet. 3. Select the milk foam button [B]. 4.
  • Page 15 4. Calibrate milk volumes We advice to calibrate the milk volumes from the warm milk and milk foam. The service menu 2.00.02 helps you to calibrate all the ingredients used; coffee, instant ingredients and fresh milk. Below instructions only apply the milk volume calibration.

  • Page 16: Principles Of Operation

    Principles of Operation • OptiMe • OptiMe with Fresh Milk option Content Basics Water circuit coffee system 3D Water circuit coffee system 2D Water circuit coffee system+ Fresh milk system 3D Water circuit coffee system+ Fresh milk system 2D 1. Basics The water circuit drawings in this document shows you through which components the fresh water is transported from the inlet to the fi...
  • Page 17 2. Water circuit coffee system 3D Item Description Item Description Inlet valve Reduction hot water 0,7mm Air break Hot water outlet Flow meter Brewer valve Pump Drain valve (NO) H2-3 Pressure boiler Espresso group (reversed) Mixer valve Coffee outlet Mixer system Pressure relief valve 14 bar Drink outlet Boiler drain...
  • Page 18 3. Water circuit coffee system 2D HOT WATER <95° Chocolate/ Coffee Hot water Topping Coffee Brewer NTC sensor H2/3 Reduction Ø 0,7mm 14 bar 2/2- way NO DN2,0 Drain boiler Overflow Airbreak Optional Drip tray Water supply Pump 1007359 Flowmeter Main tap Inlet valve Code...
  • Page 19 4. Water circuit coffee + Fresh milk system 3D bypass inlet outlet milk (optional) instant inlet outlet hot water outlet koffie outlet milk outlet to drip tray to drip tray to drip tray to drip tray to drip tray boiler drain boiler drain Item Description...
  • Page 20 Item Description Item Description OPV2 Pressure relief valve 4 bar Hot water outlet Steam boiler Fresh milk inlet /fl ush Overfl ow air break Milk pump Brewer valve Fresh milk outlet Brewer drain valve (NO) Air inlet valve Espresso group (reversed) Cold milk inlet Coffee outlet Steam valve 3 way...
  • Page 21 5. Water circuit coffee + Fresh milk system 2D HOT WATER <95° STEAM >100° Steam Chocolate/ Coffee Hot water STANDARD Optional: boiler Topping BY-PASS FRESH MILK Bypass Level sensor sensor Reduction sensor Coffee Ø 0,7mm Brewer outside machine Milk outside machine frother OPV1 14 bar...
  • Page 22 New software is available in the following ways: • www.animo.eu / MyAnimo (delaer login) animo. extranet • by e-mail from Animo Technical Support When loading new software, all the existing settings are automatically saved on the SD card or USB memory stick.
  • Page 23 Navigate to the automatic software update: SERVICE MENU 2.11 SD/USB MENU 2.11.00 LOAD DATA/SOFTWARE UPDATE 2.11.00.06 AUTOMATIC SOFTWARE UPDATE SERVICE MENU 2.11 SD/USB - MENU 2.11.00 LOAD DATA/SOFTWARE UPDATE 2.00 INGREDIENT MANAGEMENT 2.11.00 LOAD DATA / SOFTWARE UPDATE 2.11.00.00 PERSONAL SETTINGS 2.01 QUICK RECIPE PRO 2.11.01 SAVE DATA...
  • Page 24 Press OK to start the automatic software update. Press CANCEL if you do not want to start the automatic software update. The machine will start up again. The AHX fi le is being uploaded to the main PC board which is positioned behind the right-side panel.
  • Page 25 Select Standard (37mm brewer) or XL standard (44mm brewer) and if there is a Freshmilk option is available in our machine and press the LOAD button. The machine model fi les, media fi les and recipe fi les are copied to the internal storage. CHOOSE FOLDER PRESS LOAD TO START PRESS LOAD TO START...
  • Page 26 10. Select the OptiMe model of your choice. OptiMe Canister confi guration 37mm 44mm 37mm + 44mm + Fresh milk Fresh milk 1x coffee 3M 1A 3M 1B 3M 1M 3M 1N 1x coffee / Topping 3M 2A 3M 2B 3M 2M 3M 2N 1x coffee / Chocolate...
  • Page 27 2. LOAD BACK-UP DATA Load the personal settings and the recipe settings, of which you made a back-up on the SD/USB memory before the software update was started, back into the machine. Navigate to the automatic software update: 2.11 SD/USB MENU 2.11.00 LOAD DATA/SOFTWARE UPDATE 2.11.00.00 PERSONAL SETTINGS 2.11.00.02 RECIPE...

  • Page 28: Technical Data

    Technical data • OptiMe with Fresh Milk option • Refrigerator • Cup heater Content OptiMe Refrigerator Cup heater OptiMe Dimensions, volumes, weight Width without side machines 380 mm Width with refrigerator or cup heater 610 mm Width with refrigerator and cup heater 840 mm Height with bean hopper 602 mm...
  • Page 29 Electrical system The appliance must be earthed. The electrical installation must be carried out in accordance with IEC 364 (DIN VDE 0100). In the interests of greater safety, an earth leakage circuit breaker with a 30 mA rated leakage current (EN 61008) must be connected to the device. Nominal Power 2200W Voltage supply...

  • Page 30: Ambient Conditions

    Power consumption (according to EVA - EMP standard) Reaching operating temperature (HU) 107 Wh Operating mode without dispensing 28.4 Wh/Litre (IM) Energy saving mode (ESM) 6.6 Wh Heat up from stand-by (HU-ESM) 81.5 Wh Lighting LED Class 1 Ambient conditions Do not install or use the machine outdoors.
  • Page 31 Water drainage line (optional) DN20 1,5 mtr. art. no.1007650 Type plate A: Model number B: Article number C: Supply voltage [V] D: Machine number E: Water pressure [MPa] F: Power [W] G: Frequency [Hz] MILK FRIDGE Technical data Machine dimensions WxDxH 230x420x465 Capacity milk container 4 Litre...
  • Page 32 CUP HEATER Technical data Machine dimensions WxDxH 230x420x465 witout cups Capacity abt. 60 coffee cups / 144 espresso cups Empty weight Nominal Power 120W Voltage supply 220-230V / 50-60Cy (1/N/PE) Degree of protection IP X0 ? Protection class Electrical system Nominal Power 105W Voltage supply...
  • Page 33 Troubleshooting and errors • OptiMe with Fresh Milk option • Refrigerator • Cup heater Content Basics OptiMe errors codes OptiMe general problems (under construction) Refrigerator Cup heater 1. Basics WARNING • When there are defects and/or (cleaning) activities in the machine, the plug must be removed from the wall socket before the machine is opened.
  • Page 34 2. Troubleshooting errors codes Display Possible cause Solution Check the mechanical operation of the fl oat mechanism from the air break. Minimum water level switch does not detect water but the Maximum water level switch does detect water. Check the operation of the level switches in Inlet vale shuts.
  • Page 35 Display Possible cause Solution Check whether mixer is contaminated or incorrectly mounted. Clean and/or check whether the rotor turns Mixer motor stalled. freely. Mixer motor outputs overloaded Check the motor current in the service menu MIXER ERROR The motor current is over 3Amp. 2.07 Hardware test / outputs / The control has disabled the output.

  • Page 36: Brewer Motor

    Display Possible cause Solution Ingredient motor / valve / fan output Ingredient motor / valve / fan output (FET) remains activated. defective. Replace control. OUTPUT FET ERROR Check the water supply for air. Check the log menu. If E6 boiler temperature error occurs, the boiler has boiled dry.
  • Page 37 Display Possible cause Solution Check after which recipe the error occurs The espresso pump [KW2] is activated and check if the following dispensing valve and takes water from the air break,but the functions are involved with the recipe: DV1 fl ow meter [FL1] does not register water FLOW METER ERROR brewer, DV2 mixer, DV4 hot water recipe.
  • Page 38 Display Possible cause Solution Check the log menu. If E33 steam boiler overheated as registered, the steam boiler has boiled dry. Check the NTC sensor and wiring/connection and check the relays. Steam boiler does not heat up to the STEAM BOILER set temperature within 6 minutes during Check the boil-dry protection on top of the TIME OUT...
  • Page 39 Display Possible cause Solution Steam boiler does not heat up to the set Check whether the boil-dry protection was STEAM BOILER temperature within 120 seconds during activated. Reset if necessary. TIME OUT normal use. 3. OptiMe general problems (under construction) Display Possible cause Solution...
  • Page 40 4. Refrigerator (under construction) Display Possible cause Solution Make sure the power plug is correctly plugged into the power sockets. Make sure the main power switch is on ‘I’ position. Power supply Make sure the power socket is working. The refrigerator will not start Make sure the power cord is not damaged and/or broken.
  • Page 41 5. Cup heater (under construction) Display Possible cause Solution Make sure the power plug is correctly plugged into the power sockets. Make sure the main power switch is on ‘I’ position. The cup hater does not heat Power supply Make sure the power socket is working. Make sure the power cord is not damaged and/or broken.
  • Page 42 Animo B.V. Dr. A. F. Philipsweg 47 9403 AD Assen The Netherlands Tel: +31 (0) 592 376376 Fax: +31 (0) 592 341751 E-mail: info@animo.nl www.animo.eu...
