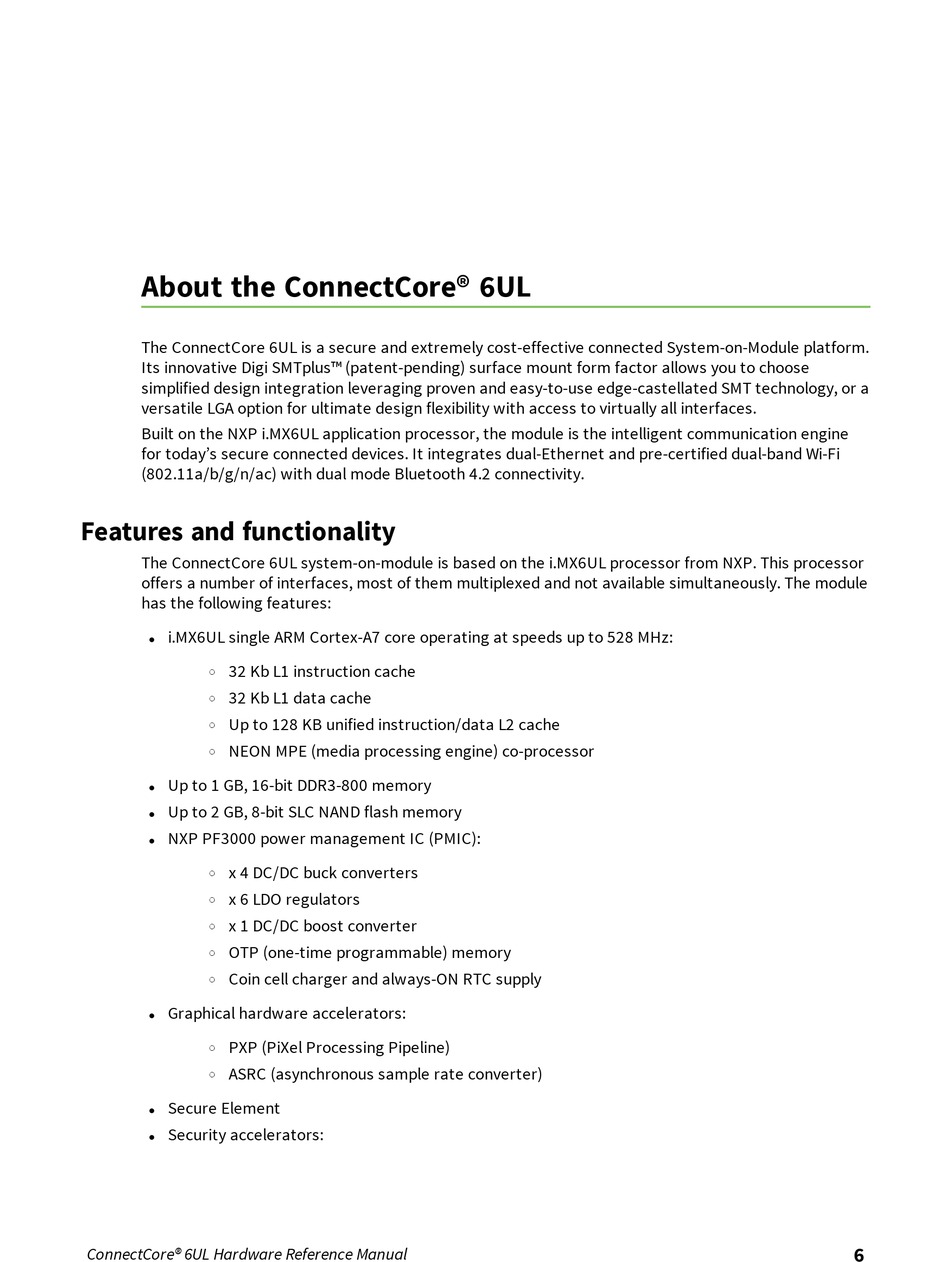

About the ConnectCore® 6UL
The ConnectCore 6UL is a secure and extremely cost-effective connected System-on-Module platform.
Its innovative Digi SMTplus™ (patent-pending) surface mount form factor allows you to choose
simplified design integration leveraging proven and easy-to-use edge-castellated SMT technology, or a
versatile LGA option for ultimate design flexibility with access to virtually all interfaces.
Built on the NXP i.MX6UL application processor, the module is the intelligent communication engine
for today's secure connected devices. It integrates dual-Ethernet and pre-certified dual-band Wi-Fi
(802.11a/b/g/n/ac) with dual mode Bluetooth 4.2 connectivity.

Features and functionality

The ConnectCore 6UL system-on-module is based on the i.MX6UL processor from NXP. This processor
offers a number of interfaces, most of them multiplexed and not available simultaneously. The module
has the following features:
i.MX6UL single ARM Cortex-A7 core operating at speeds up to 528 MHz:
l
32 Kb L1 instruction cache
o
32 Kb L1 data cache
o
Up to 128 KB unified instruction/data L2 cache
o
NEON MPE (media processing engine) co-processor
o
Up to 1 GB, 16-bit DDR3-800 memory
l
Up to 2 GB, 8-bit SLC NAND flash memory
l
NXP PF3000 power management IC (PMIC):
l
x 4 DC/DC buck converters
o
x 6 LDO regulators
o
x 1 DC/DC boost converter
o
OTP (one-time programmable) memory
o
Coin cell charger and always-ON RTC supply
o
Graphical hardware accelerators:
l
PXP (PiXel Processing Pipeline)
o
ASRC (asynchronous sample rate converter)
o
Secure Element
l
Security accelerators:
l
