Javad TRIUMPH-1 Configuration Example page 4

GSM Base & Rover Configuration Example
Base Station Configuration
3. Select the port receiver is connected to and click Connect (Figure 2-2).
4. Set the Radio and GSM parameters to OFF and click Apply.
5. Click Connect GSM button (Figure 2-3).
6. In the Master/Slave tab set the following parameters, and click Apply (Figure 2-4):
• Dial number: empty
• Send Time Out: 2
• Receive Time Out: 5
4

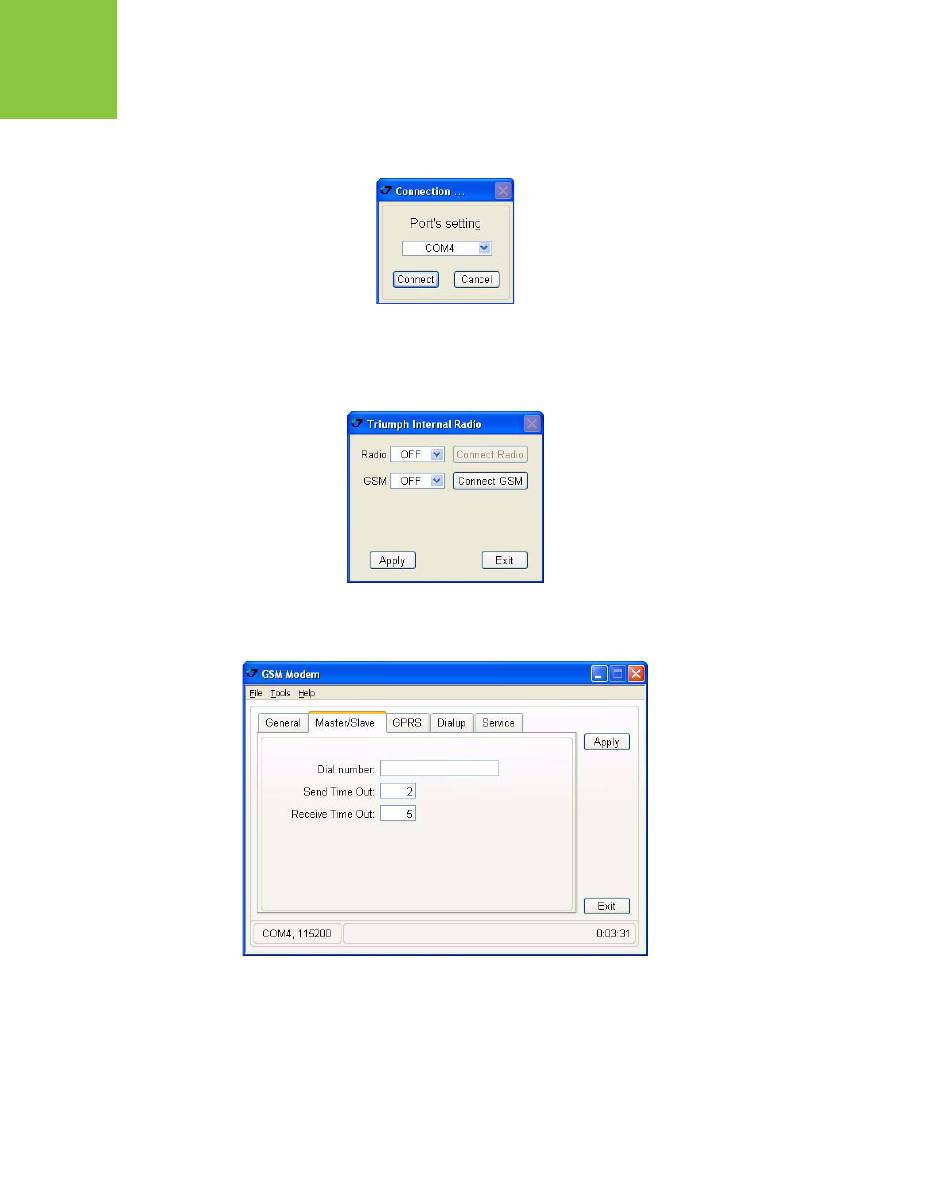

Figure 2-2. ModemVU. Connection
Figure 2-3. ModemVU ALPHA Internal Radio selection
Figure 2-4. Master/Slave tab settings
