Javad TRIUMPH-1 Configuration Example page 9

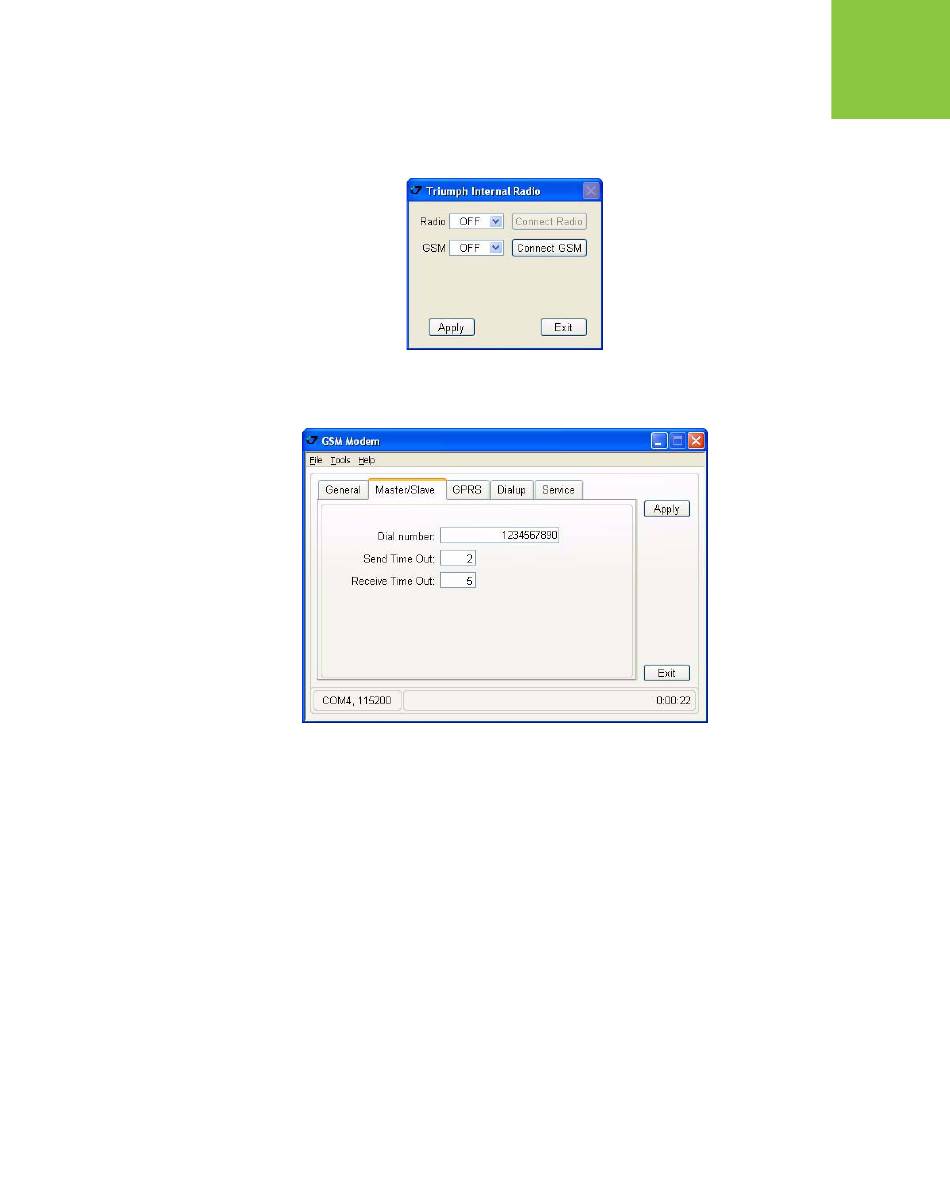

5. Click Connect GSM button (Figure 2-12).
Figure 2-12. ModemVU TRIUMPH Internal Radio selection
6. In the Master/Slave tab set the following parameters, and click Apply (Figure 2-4):
• Dial number: phone number of the Base station's SIM card.
• Send Time Out: 2
• Receive Time Out: 5
www.javad.com
Figure 2-13. Master/Slave tab settings
GSM Base & Rover Configuration Example
Rover Configuration
9
