Javad TRIUMPH-1 Configuration Example page 5

7. In the General tab insert your SIM card PIN code (if needed), then set the mode to Slave,
and click Apply.
8. Wait until the modem will establish connection with net. The Modem status will be
ready (at first detecting, registration, than ready).
9. Quit ModemVU by clicking Exit button.
www.javad.com

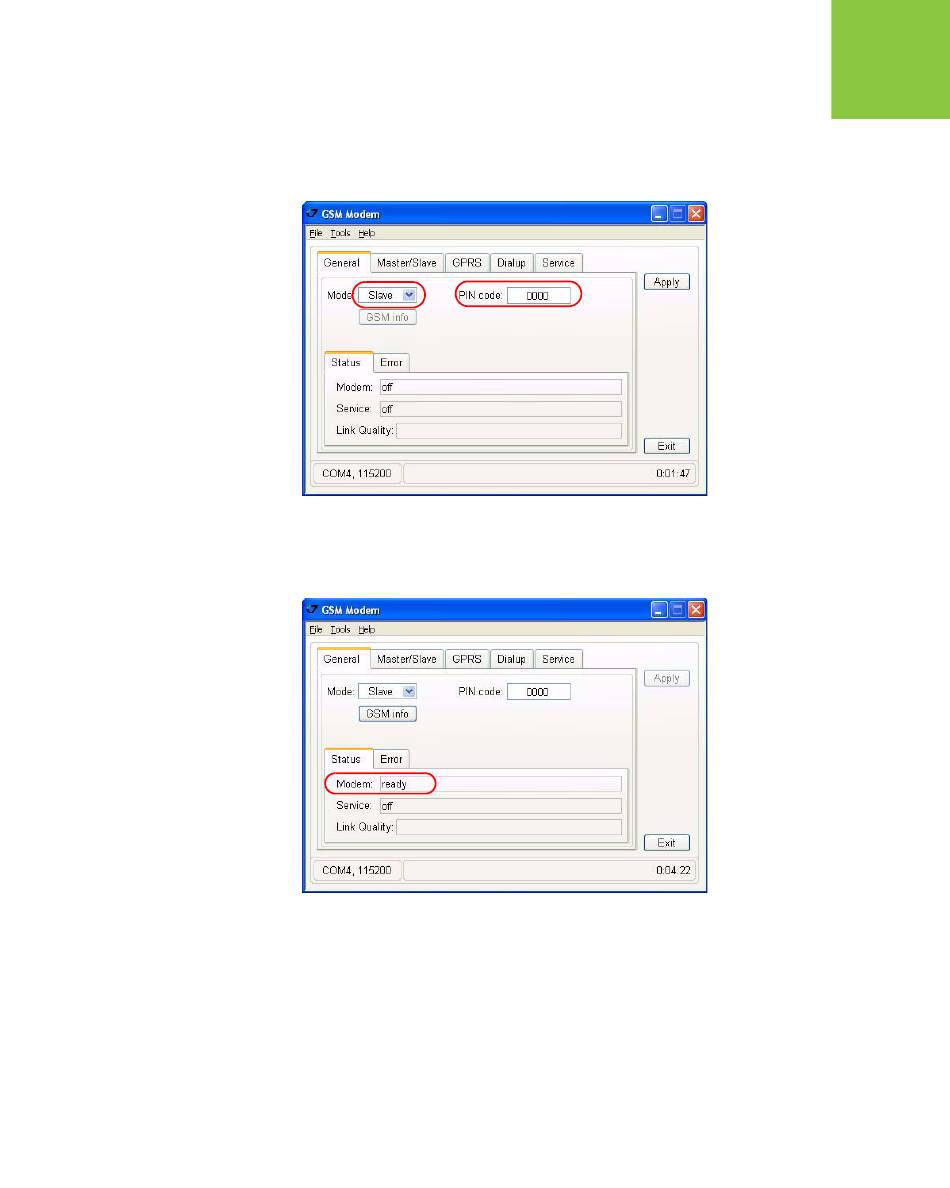

Figure 2-5. General tab settings
Figure 2-6. Modem status "ready"
GSM Base & Rover Configuration Example
Base Station Configuration
5
