Javad TRIUMPH-1 Configuration Example page 12

GSM Base & Rover Configuration Example
Rover Configuration
13. In the Rover tab set RTK fixed mode (Figure 2-18), then click Apply:
14. In the Ports tab Serial subtab set the Input mode for port C to CMR, then click Apply and
OK (Figure 2-19).
12

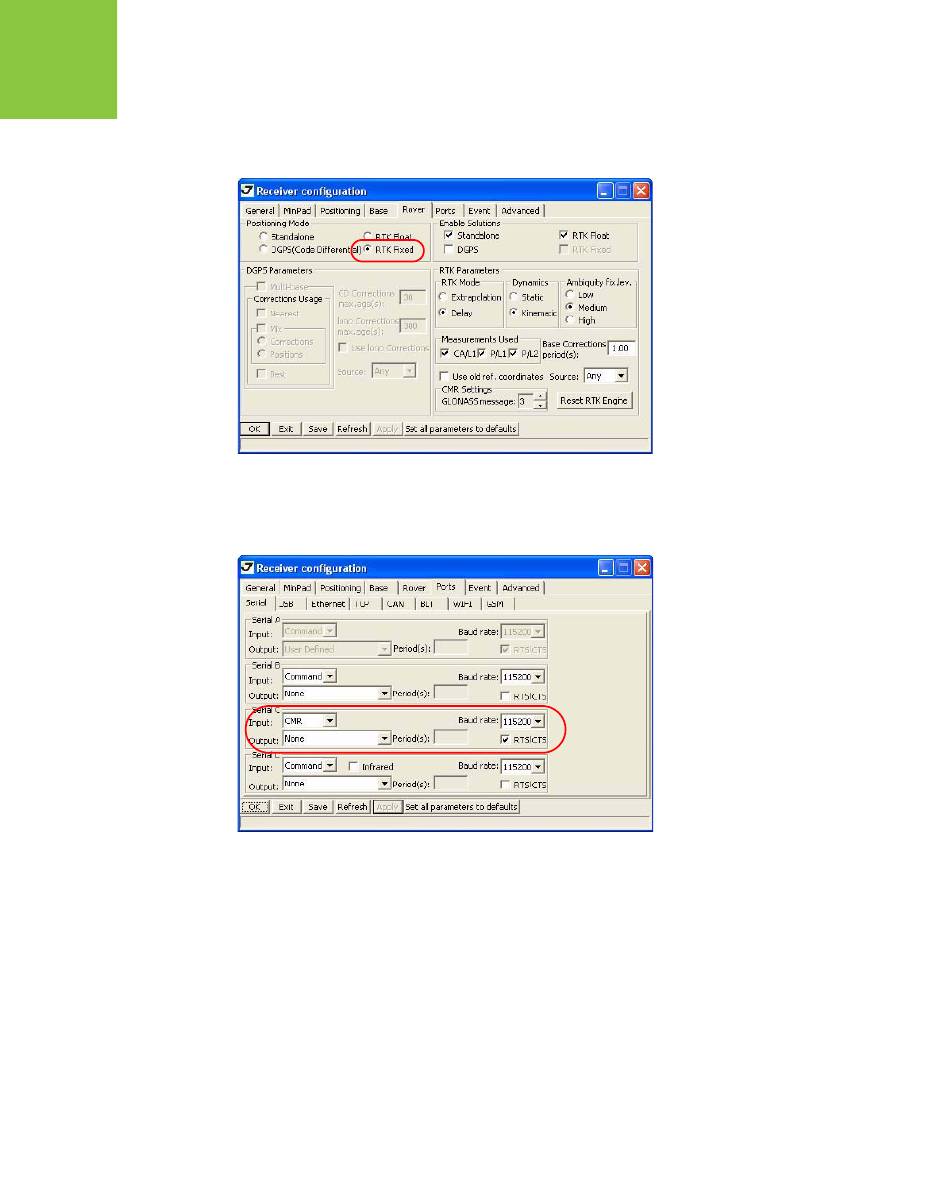

Figure 2-18. Rover tab
Figure 2-19. Ports tab
