Javad TRIUMPH-1 Configuration Example page 6

GSM Base & Rover Configuration Example
Base Station Configuration
10. Start TriVU. Select port the receiver is connected to and click OK (Figure 2-7).
11. Click Configuration Receiver.
12. In the Base tab click the Get from receiver button. Reference geodetic coordinates appear.
Click Apply (Figure 2-8).
6

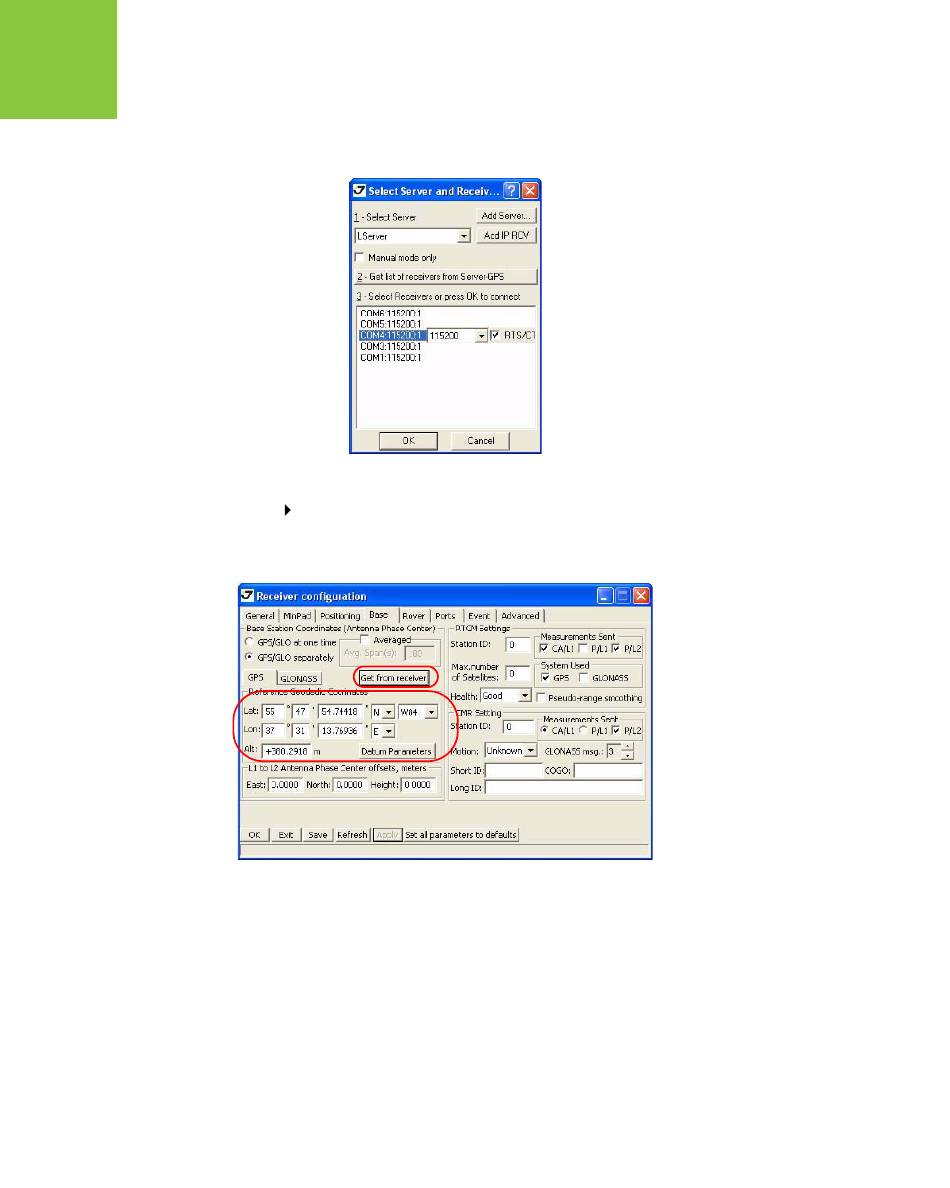

Figure 2-7. TriVU. Selecting port
Figure 2-8. Base tab
