Power Panel Components

Socket Opener Pressure
Regulator
Programmer Power only
Serial Number
Main Pressure Regulator
ïThe Big Picture, page 1
PSV7000 Operator's Manual
■ PSV7000 Machine Components ◘ Power Panel Components
Power Switch

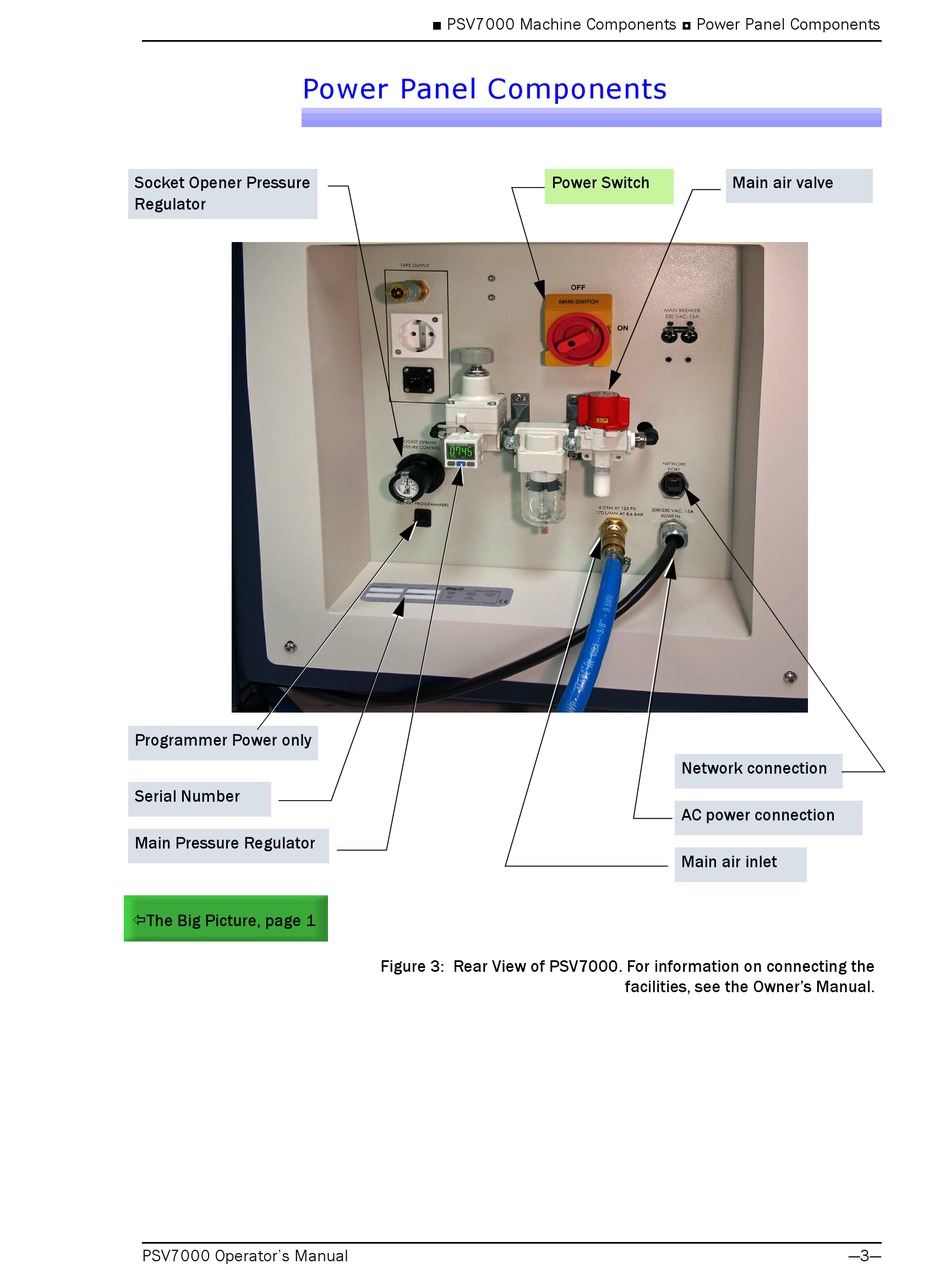

Figure 3: Rear View of PSV7000. For information on connecting the
Main air valve
Network connection
AC power connection
Main air inlet
facilities, see the Owner's Manual.
