Operation ■ Running a Job on PSV7000
11» Setting Media and Options—the
If
For rotor tips, see
Laser Mark-
ing—Installing the
Correct Rotor Tips
on
page 46.
For Enhanced Yield
option settings, you may
want to confer with
your administrator.
—54—
Setup Window
For these steps refer to the
1. On the AH700 Main window, click Start.
2. On the Options tab of the Setup window, select the desired Input,
Output, and Reject media.
3. (Optional) For laser marking devices, click the Laser Marking
switch to ON (green). Ensure the correct laser rotor tips are
installed.
4. (Optional) For 3D-Lead inspection (coplanarity) click the 3D
Inspection System to ON (green).

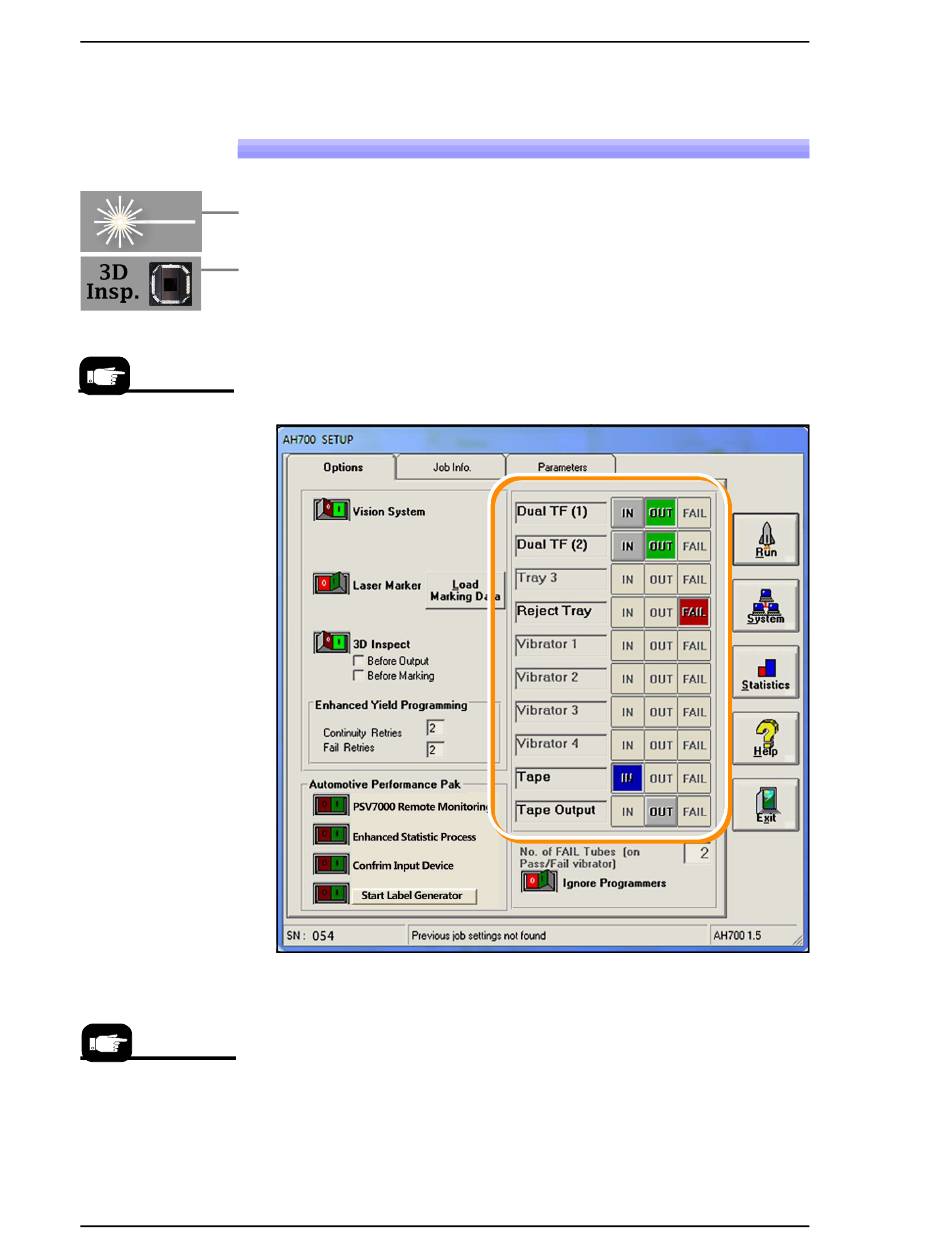

Figure 38: The SETUP window requires selections for input, output,
and reject media (boxed here) on the Options tab.
Only options set in the WinAH400.ini file will display. Common setups
will not display all the optional features shown here. Talk to your
Administrator regarding desired options that are not displayed.
This image shows Dual Tray Feeder media rather than static trays.
5. Set Enhanced Yield Options:
Figure 37 on page 53 and
Data I/O • 096-0461-001G
Figure 38 below.
