Data I/O PSV7000 Operator's Manual page 23

Your system administrator
generally has informa-
tion on pin 1 orientation
for tray and tape input.
Reject Tray
Reject Bin
If the PNP head is not in
the Park position, A)
Refer to Turning
PSV7000 System Power
ON on page 48, and
B) then refer to the
on-screen Help.
To remove or install tray
mounts, see the
PSV7000 Owner's Man-
ual.
PSV7000 Operator's Manual
■ Running a Job on PSV7000 ◘ Installing Input/Output Media
Standard Static Tray Orientation
FOR TRAYS ORIENTED with the long side parallel to the Y-axis
(standard configuration), orient the input and output trays with the
beveled corner to the near right.
• The input tray goes on the mount closest
to machine center.
• The output tray installs on the far right
mount.
• If a reject tray is used, install it on the far
left mount.

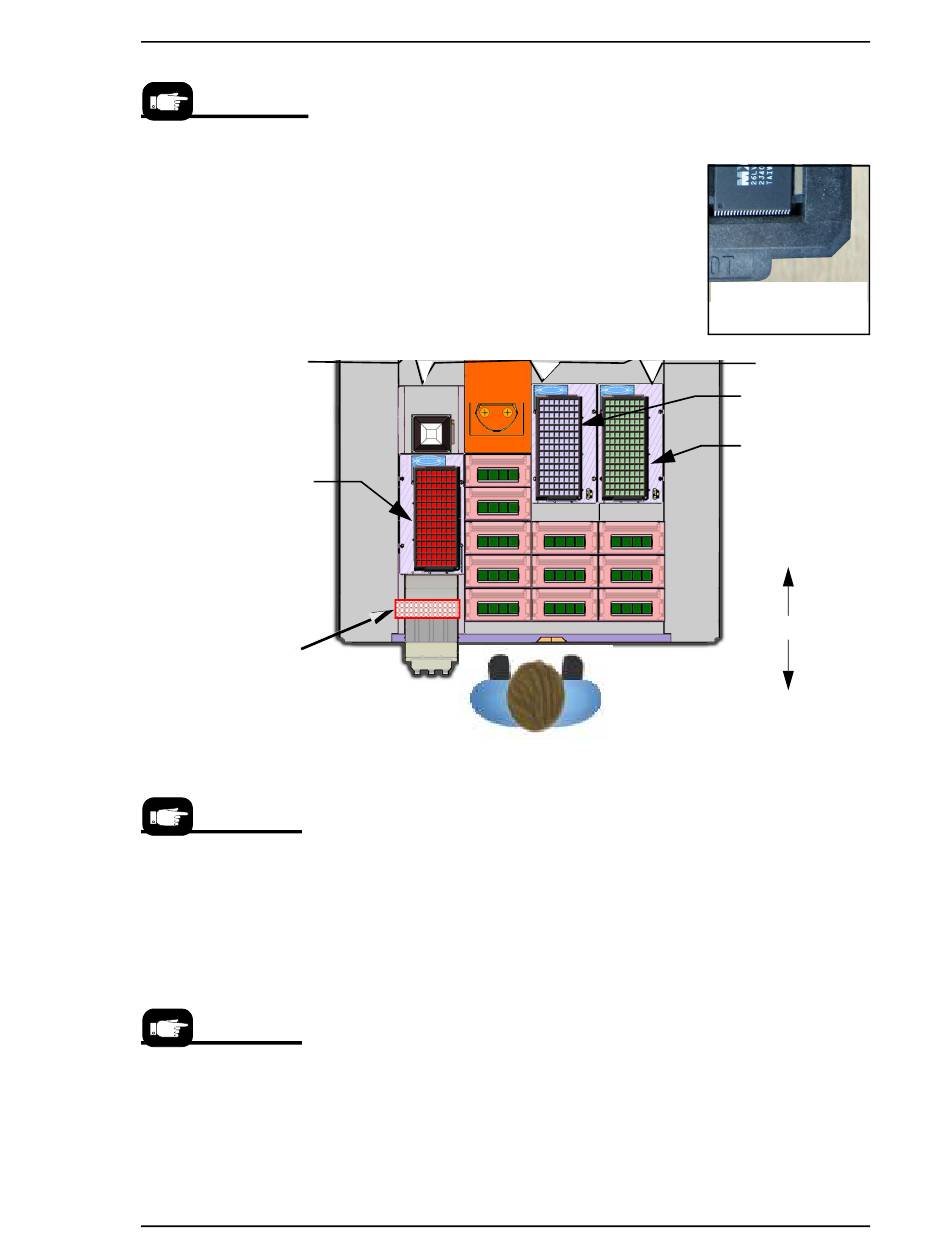

Figure 6: Common static tray locations—the long side is parallel with
the Y-axis. A reject bin may be used instead of a tray.
FOR STATIC TRAYS ORIENTED with the long side parallel to the
X-axis (less common):
• The input tray goes nearest to the operator. Trays can be oriented
with the beveled corner on the left or right.
Standard Static Tray Installation
When static trays are used, typically there are three tray mounts on
the workspace—input, output, and reject (far left).
To set up the static trays for input and output (refer to Figure 6):
1. From the front, with the safety door open, set the input tray onto
the mounting plate closest to the center of the machine. The
chamfered corner should be next to the sensor.
2. Push the tray snug against the locating pins on two sides and
place the magnet at the corner opposite the tray sensor.
Orientation of the tray
bevel.
Input Tray
Output Tray
Y-axis
—19—
