Installing the Tape Take-up Module Option

Install the Tape Take-up Module onto the front panel below the Tape
Feeder Module as shown in the figure below.
1. Fasten the Take-up frame to the front panel.
2. Plug in the communications cable.
3. Install the correct size take-up reel.

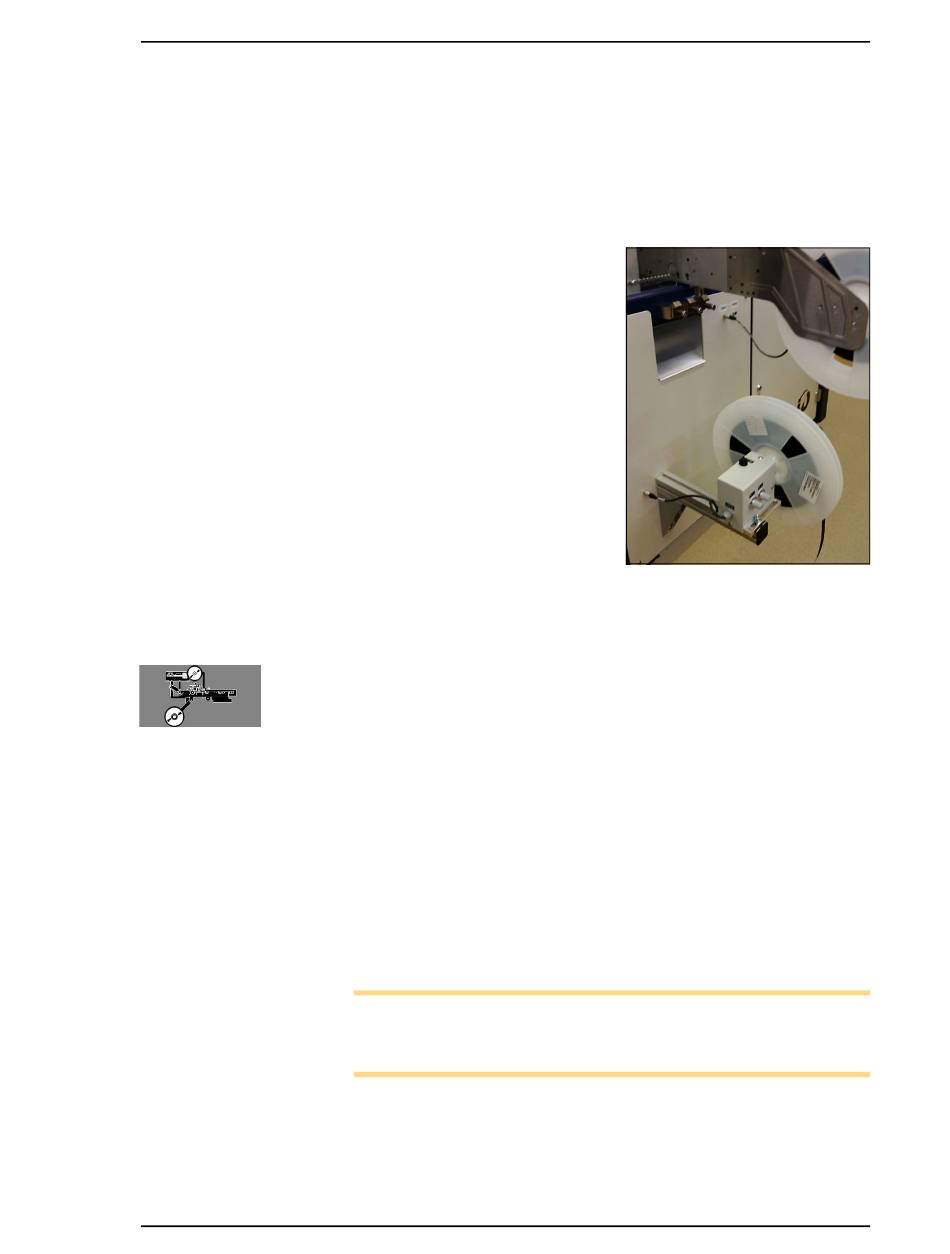

Figure 12: The Tape Take-up Module is installed.

Checking the Tape Output Option

Set up of the TM-50 Tape Output is described in the PSV7000 Owner's
Manual.
When starting a job that uses Tape Output:
1. Ensure there is an empty take-up reel on the take-up reel spin-
dle.
2. Ensure that the TM-50 is ready: set up for heat seal or pressure
seal, Seal test and Peel Force test have been done, EPD Sensor is
ON or OFF, leader and trailer lengths determined.
3. At the TM-50, pull the red E-Stop/On button to start it.
4. Run out enough sealed empty pockets to make the trailer that is
required for the current job.
5. Check tape alignment.
Note: Use the counter on the TM-50 if desired. However, we rec-
ommend setting this counter to zero and using the pass quantity
on the PSV7000 System to monitor quantity.
When the PSV7000 job is run, devices are placed by the Tape-Out at
the Tape-Out pick point.
