Installing the Disk Drive Unit
!
1. Face the rear of the SCSI tray, and insert the disk drive unit into the tray.
See Figure 2-4.

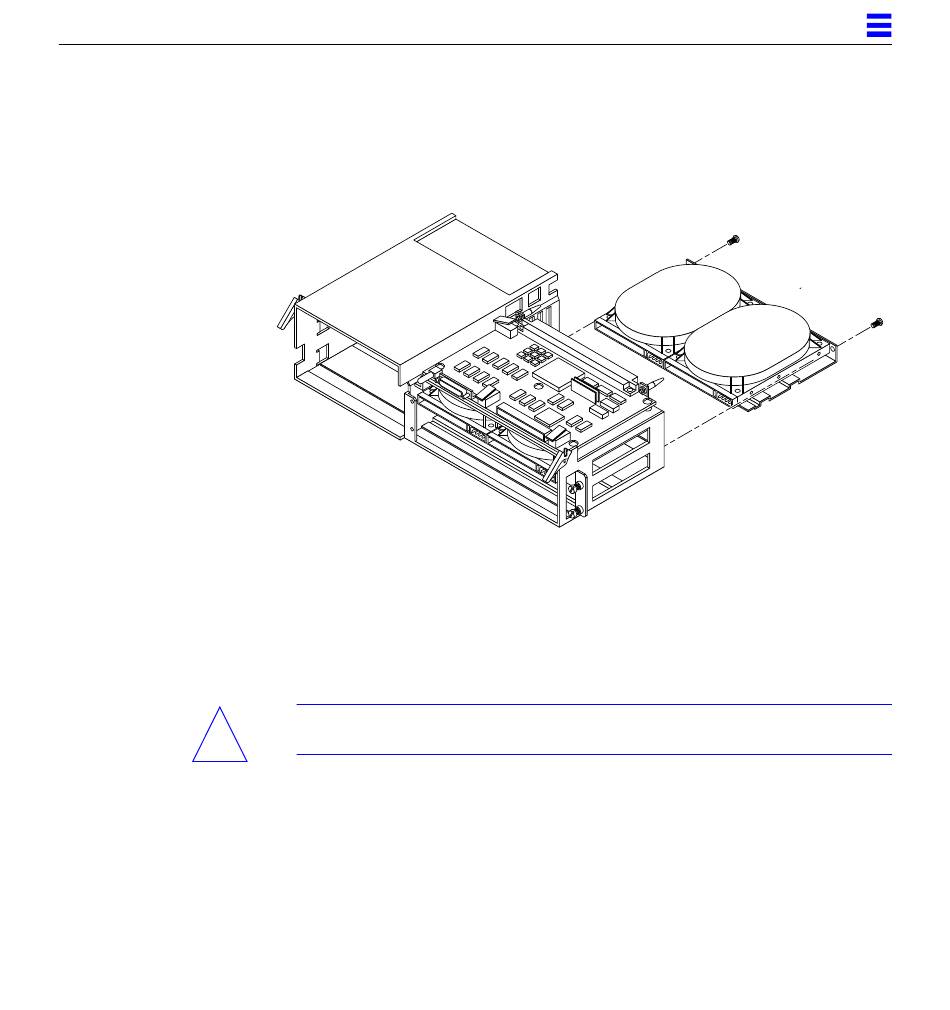

Figure 2-4
Inserting the Disk Drive Unit into the Rear of the SCSI Tray
2. Secure the disk drive unit to the tray.
Use the two #2 Phillips screws that came with the unit. See Figure 2-4.
3. Attach the power and data connectors to the two disk drives.
See Figure 2-5.
Caution – Do not force the cable connectors into the connectors on the
drive—you may damage them.
Installing Drives in the SCSI Tray
2
2-5
