Setting SCSI Target Addresses on the Drives

The disk drive unit is installed in the SCSI tray of the SPARCserver 1000
system. The SCSI tray supports up to six SCSI devices: one CD-ROM drive, one
tape drive, and up to four disk drives. See Figure 1-3.
Tape drive
CD-ROM drive
Disk drives

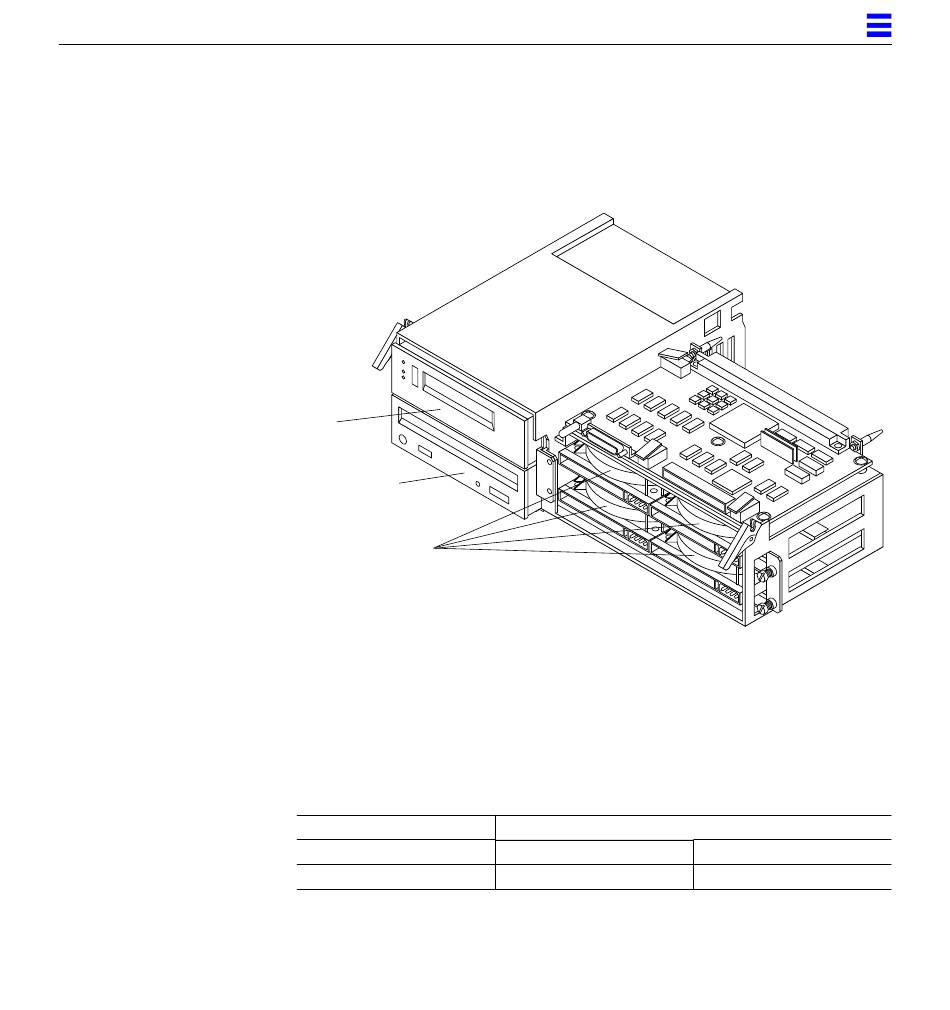

Figure 1-3 SCSI Tray of the SPARCserver 1000 system
Table 1-2 shows the physical arrangement of the SCSI tray and the target
addresses of each drive as you view the tray from the front. Note that each
disk drive has a unique SCSI target address.
Table 1-2 Device Addressing for the SCSI Tray
SCSI Device (Address)
Tape Drive (5)
CD-ROM (6)
Preparing for Installation
SCSI Device (Address)
Disk Drive (1)
Disk Drive (3)
1
Disk Drive (0)
Disk Drive (2)
