Reassembling the System

Installing the SCSI Tray

!
2-6

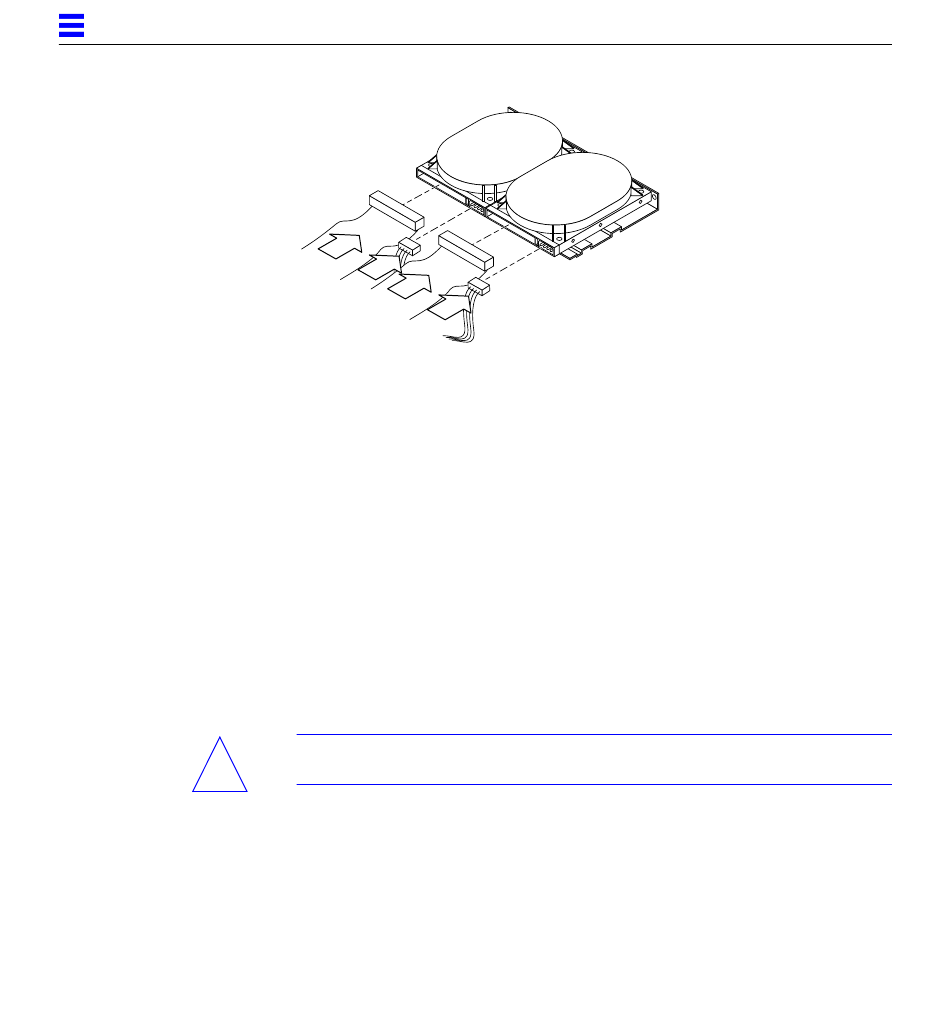

Figure 2-5 Power and Data Cable Connections
1. Grasp the tray on either side, lift it, and place it in the opening to the
SPARCserver 1000 system.
2. Slide the SCSI tray into the SPARCserver 1000 system.
Keep the ejector tabs up until their hooks slide into place. See Figure 2-3.
3. Place your thumbs on the ejector tabs and use equal pressure when you
close the ejector tabs.
As you close the ejector tabs, you will feel a slight resistance as the
backplane connector seats in the SCSI tray connector.
Caution – Do not force the SCSI tray into the backplane — you may damage the
backplane connectors.
4. Tighten the four captive screws to secure the SCSI tray to the
SPARCserver 1000 system.
