Removing the SCSI Tray
!
2-4
1. Loosen the four captive screws that secure the SCSI tray to the
SPARCserver 1000 system.
SCSI tray
ejectors

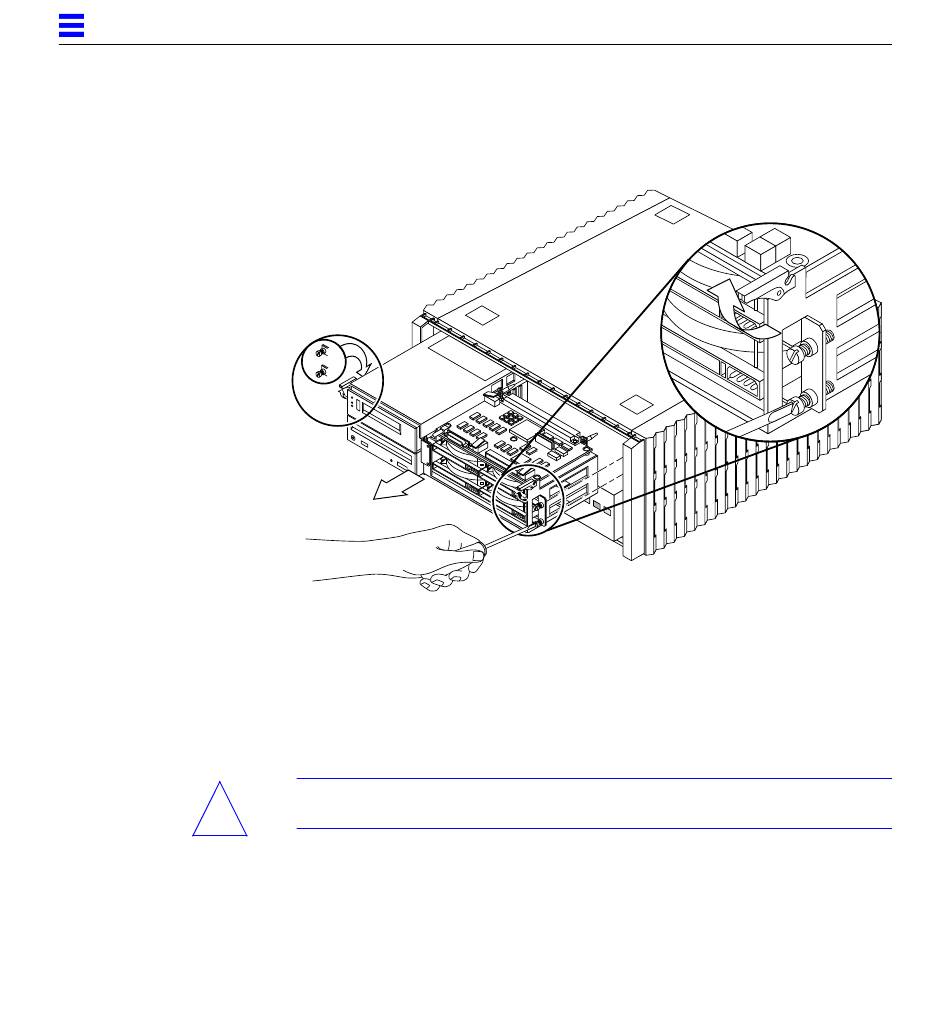

Figure 2-3
Removing the SCSI Tray
2. Release the SCSI tray from the SPARCserver 1000 system. See Figure 2-3.
a. Rotate the ejectors towards you until you feel the SCSI tray connector
disconnect from the backplane connector.
b. Place your hands under the SCSI tray, and slide it out carefully.
Warning – The SCSI tray is heavy. Be sure you have a good grip on the tray
before removing it from the SPARCserver 1000 system card cage.
3. Place the SCSI tray on the ESD mat.
SPARCserver 1000 System Disk Drive Installation Manual—July 1995
