UM1956
6

Hardware layout and configuration

The Nucleo-32 board is based on a 32-pin STM32 microcontroller in LQFP or UFQFPN
package.
Figure 2
push button, LED, and Arduino Nano connectors).
Figure 3: Top layout view of the Nucleo-32 board
Nucleo-32 board
illustrates the connections between the STM32 and its peripherals (ST-LINK/V2-1,
show the location of these features on the Nucleo-32 board.

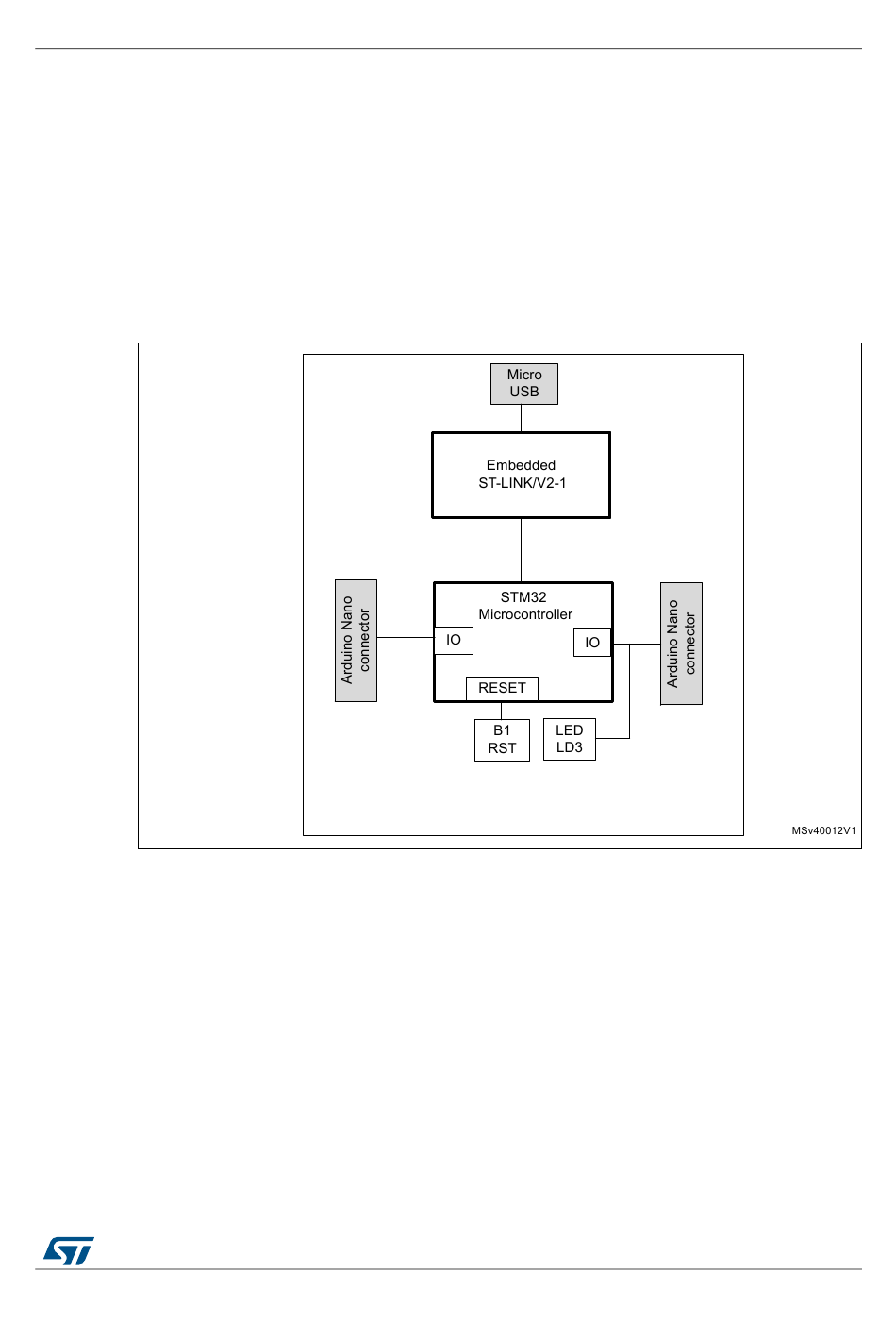

Figure 2. Hardware block diagram

DocID028406 Rev 1
Hardware layout and configuration
and Figure 4: Bottom layout view of the
11/31
30
