File Gateway Server Panel
Letter Component
D Four green network activity
LEDs
E Red System error LED
F System Drive activity LED
G System ID button
H Power button

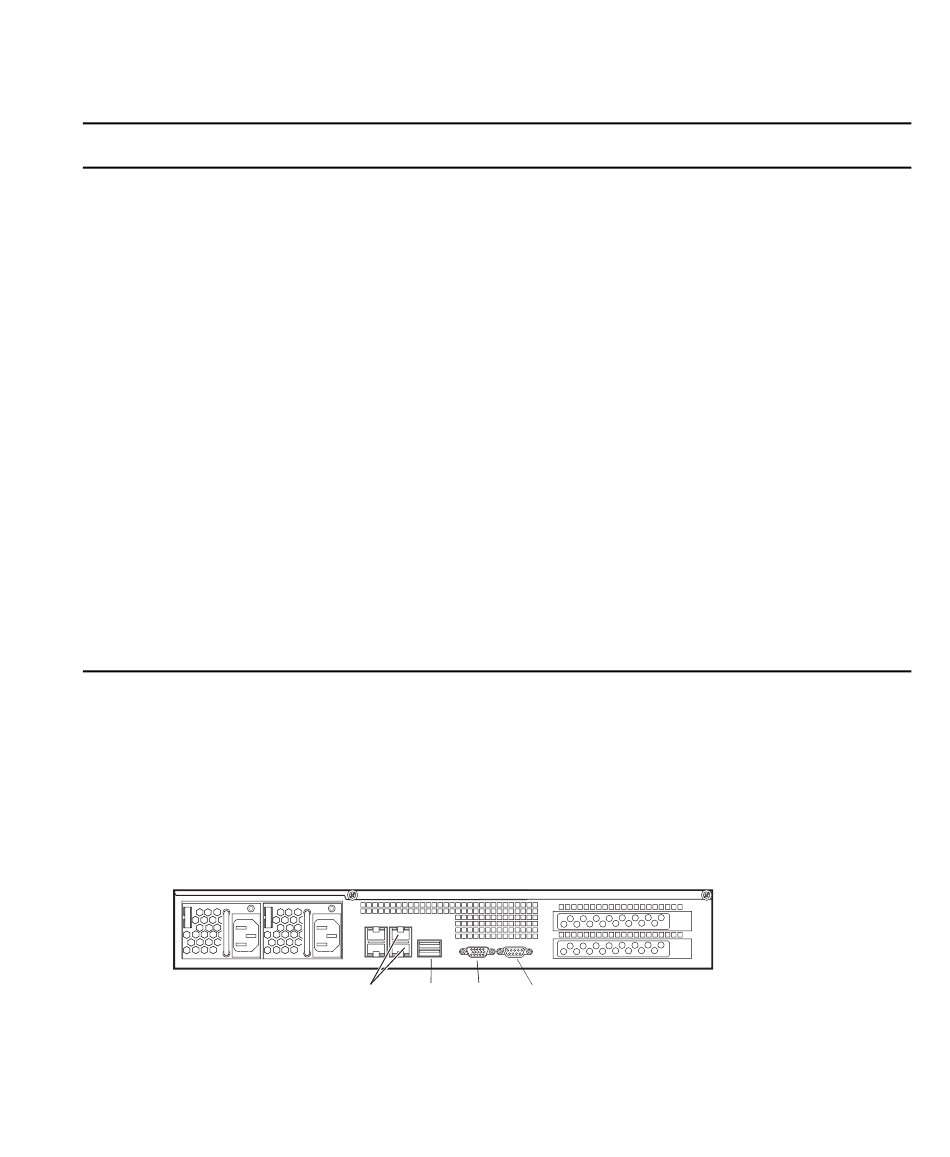

File Gateway Server Rear Connections

The following figure shows the rear panel of the File Gateway server and the function of
each connection.
File Gateway Server Rear View
Power supplies
Intel Pro Ethernet ports
Description
Illuminates green when a good network connection is established and
blinks when there is network activity on the four built-in 1-GB
network ports.
The number beside the LED corresponds with the number beside the
network port on the rear of the enclosure. For example, Connector 1
is LED 1 on the front. See
on page 17.
Illuminates red when an error is detected with the system (fan, power
supply, temperature, voltage).
Indicates drive activity from the onboard SATA controller and blinks
when either of the system drives is being accessed.
When pressed it illuminates (blinks) blue and also illuminates an
LED on the rear of the enclosure. The rear LED is also blue and is
visible on the lower left-hand side of the Ethernet ports inside of the
enclosure. It is used to identify a system for servicing when it is
installed in a high-density rack/cabinet populated with several other
similar systems.
Press to power on the enclosure. Power button illuminates green
when the power is on.
USB Video Serial
File Gateway Server
"File Gateway Server Rear Connections"
Slots not used
17
