ISIS 5000 Configurations

The ISIS 5000 configuration consists a 10 Gb connection from the Engine to an ISIS switch
providing support for ISIS, CIFS, and FTP clients. Two Ethernet ports on the File Gateway
server connect to 1-Gb ports on the switch. CIFS and FTP clients can use 1-Gb, 10BaseT, or
100BaseT connections to the ISIS switch or corporate network switch.

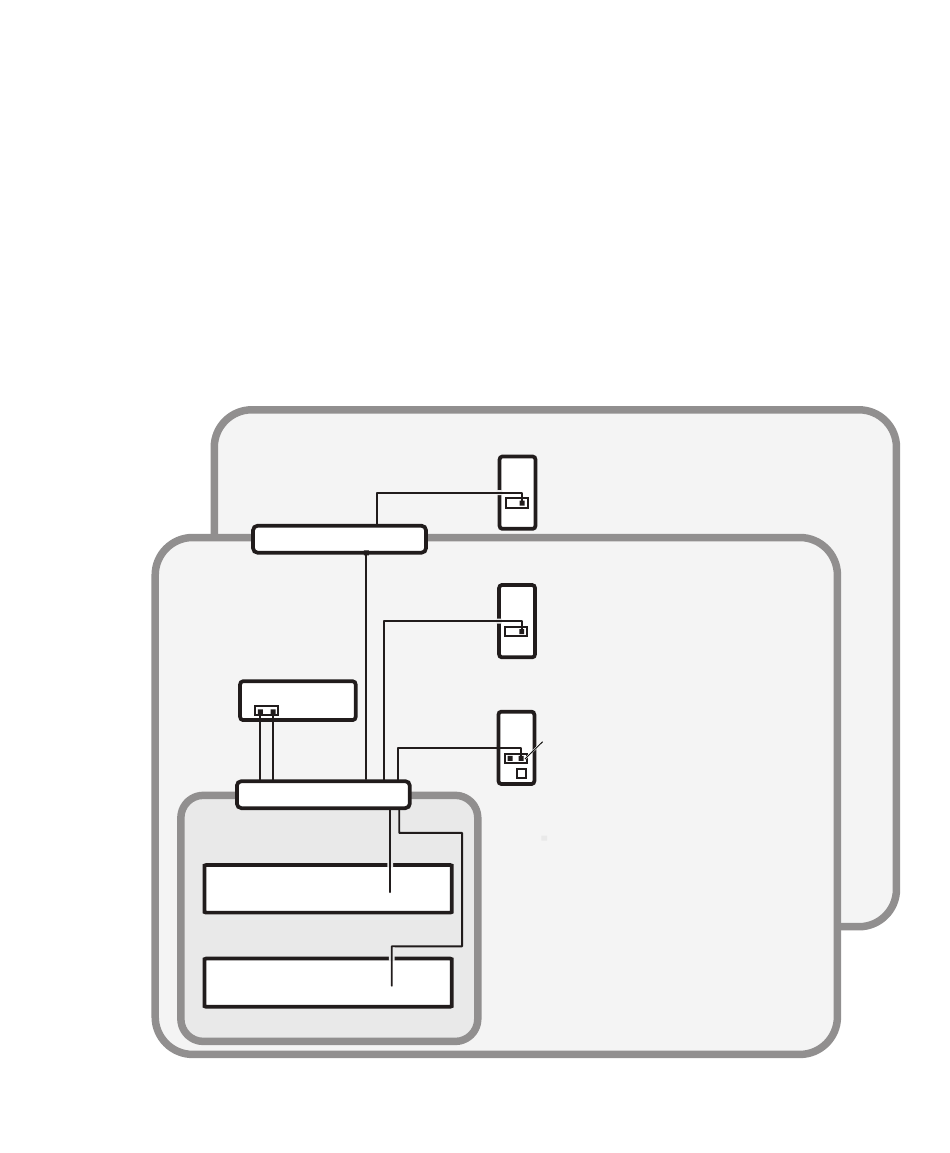

The following is an ISIS 5000 zone configuration diagram showing CIFS and FTP clients in
Zone 1 and the Corporate Network. Avid recommends you do not connect CIFS or FTP
clients in Zone 1, as they would unnecessarily utilize bandwidth that the ISIS clients would
need.
Avid ISIS 5000 File Gateway Network Configuration
File Gateway Server
10 GB Ethernet
Ethernet
House Uplink Switch
Ethernet
1 GB Ethernet
1 GB Ethernet
Switch
Engine
Engine
CIFS or FTP client
CIFS or FTP client
ISIS client
Intel Pro 1000
board
Network Connection
Corporate
Network
Zone 1
