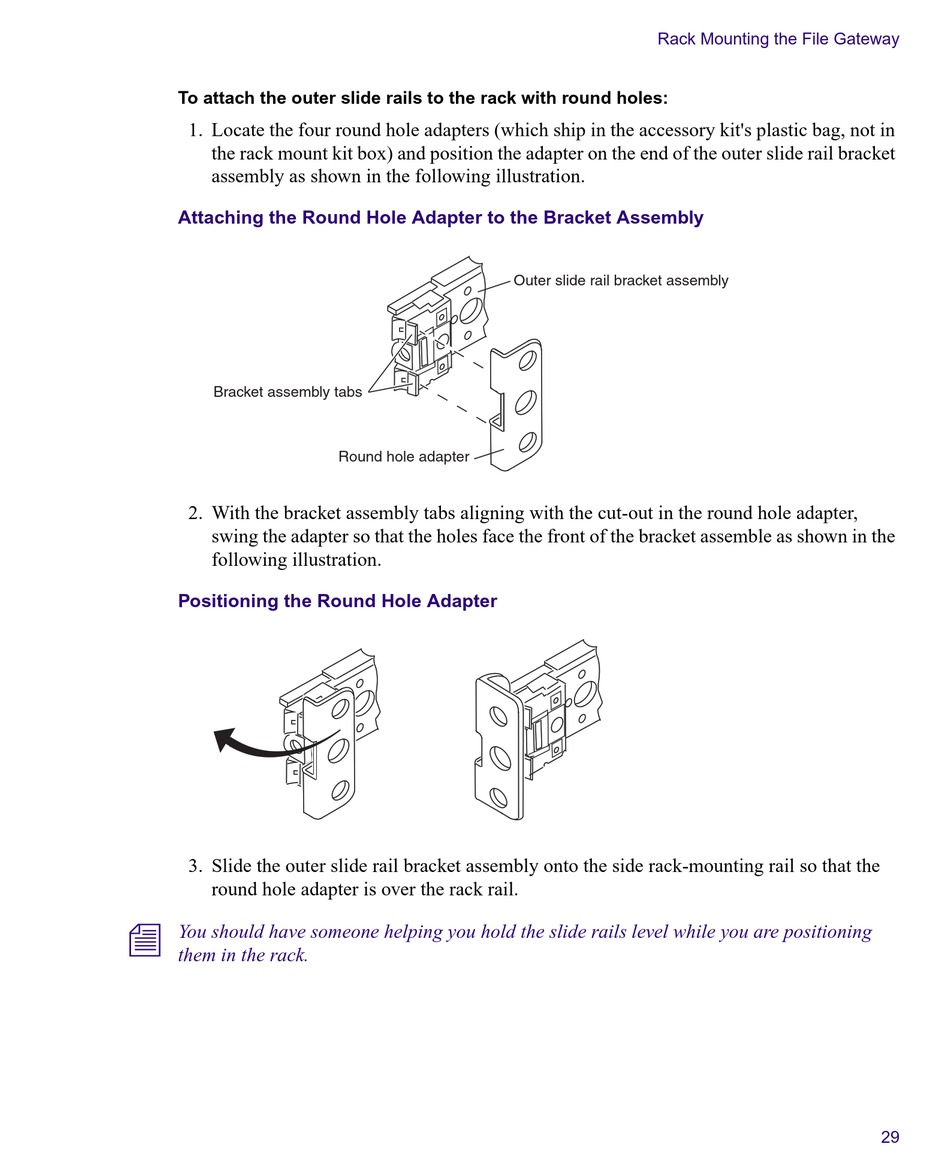

To attach the outer slide rails to the rack with round holes:
1. Locate the four round hole adapters (which ship in the accessory kit's plastic bag, not in
the rack mount kit box) and position the adapter on the end of the outer slide rail bracket
assembly as shown in the following illustration.
Attaching the Round Hole Adapter to the Bracket Assembly
Bracket assembly tabs
2. With the bracket assembly tabs aligning with the cut-out in the round hole adapter,
swing the adapter so that the holes face the front of the bracket assemble as shown in the
following illustration.
Positioning the Round Hole Adapter
3. Slide the outer slide rail bracket assembly onto the side rack-mounting rail so that the
round hole adapter is over the rack rail.
n
You should have someone helping you hold the slide rails level while you are positioning
them in the rack.
Outer slide rail bracket assembly
Round hole adapter
Rack Mounting the File Gateway
