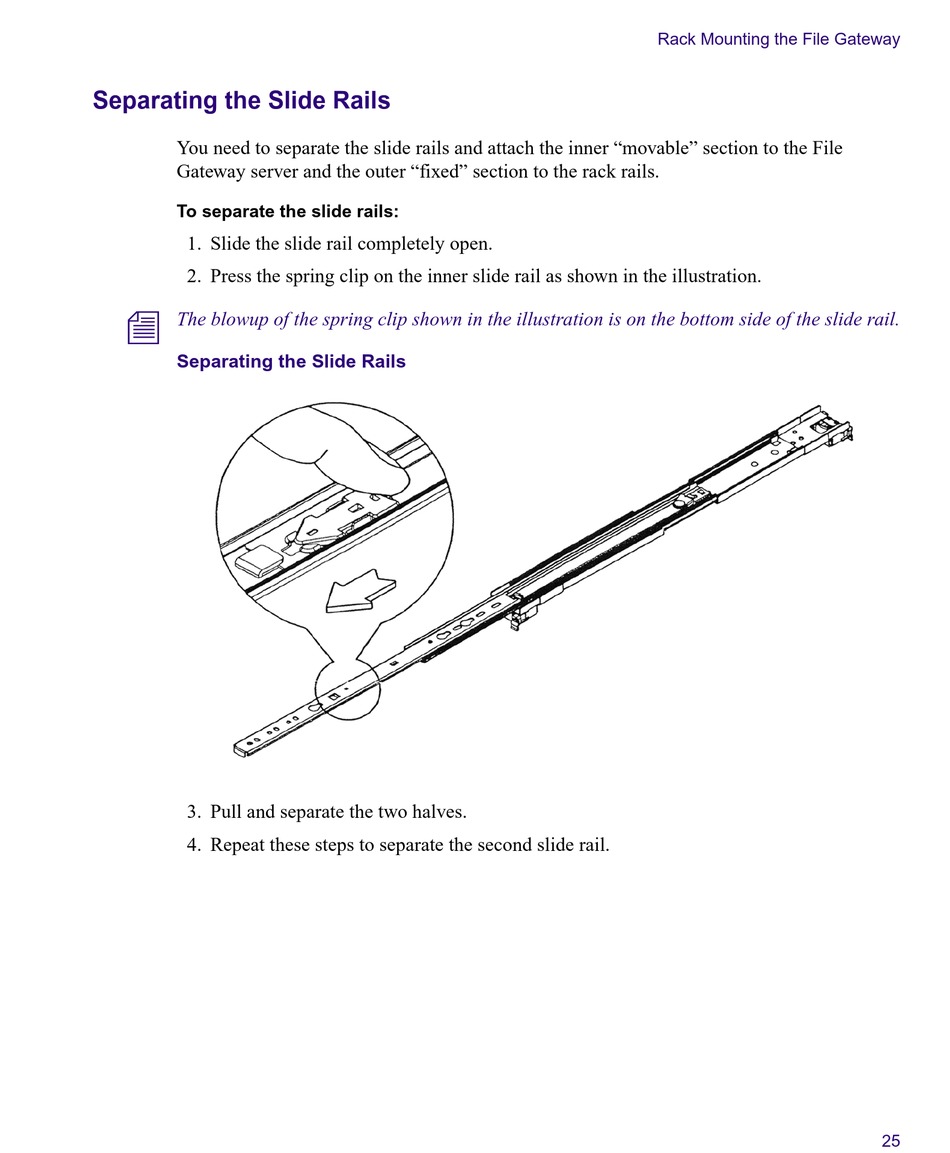

Separating the Slide Rails

You need to separate the slide rails and attach the inner "movable" section to the File
Gateway server and the outer "fixed" section to the rack rails.
To separate the slide rails:
1. Slide the slide rail completely open.
2. Press the spring clip on the inner slide rail as shown in the illustration.
n
The blowup of the spring clip shown in the illustration is on the bottom side of the slide rail.
Separating the Slide Rails
3. Pull and separate the two halves.
4. Repeat these steps to separate the second slide rail.
