1 Avid ISIS Gateway Server Overview

File Gateway Server Front Panel

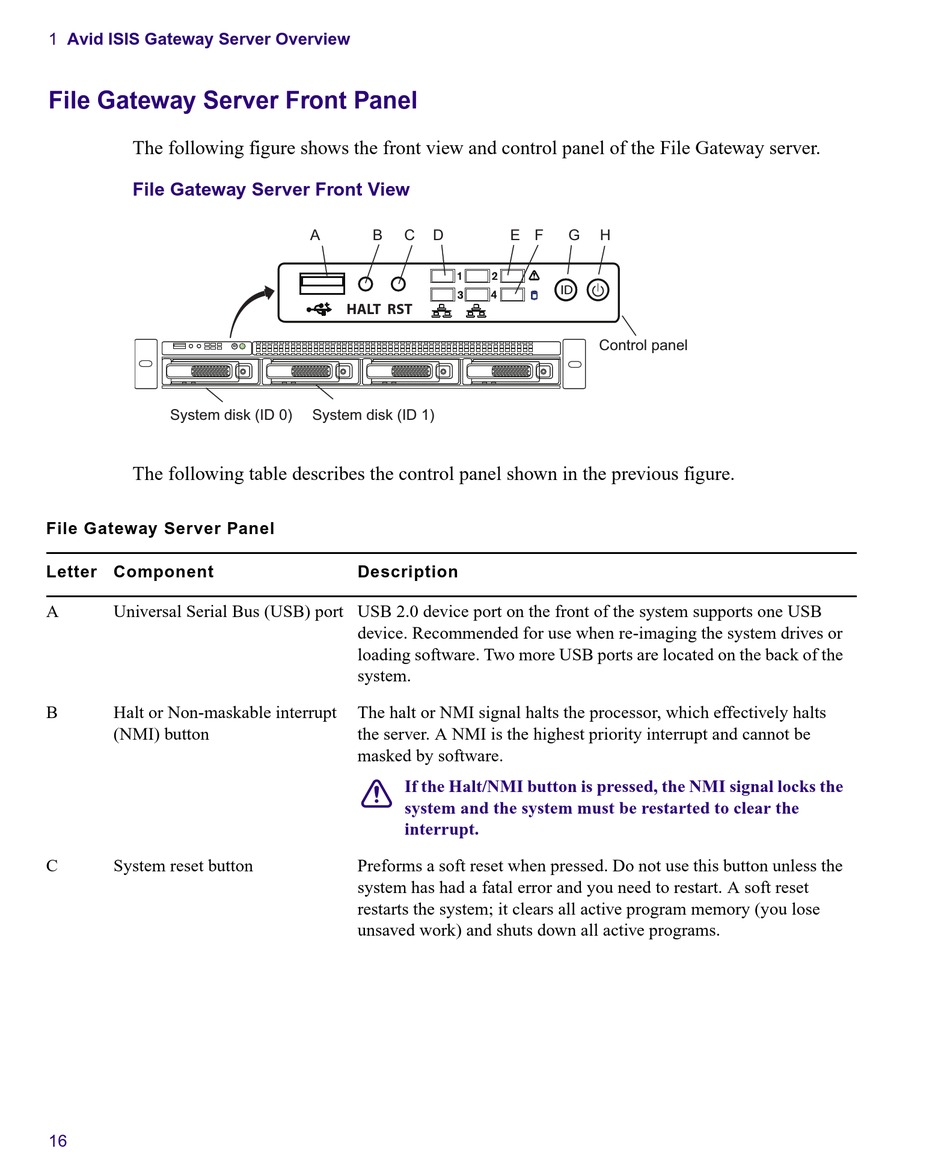

The following figure shows the front view and control panel of the File Gateway server.
File Gateway Server Front View
System disk (ID 0)
The following table describes the control panel shown in the previous figure.
File Gateway Server Panel
Letter Component
A Universal Serial Bus (USB) port USB 2.0 device port on the front of the system supports one USB
B Halt or Non-maskable interrupt
(NMI) button
C System reset button
16
A B C
HALT RST
ID
System disk (ID 1)
Description
device. Recommended for use when re-imaging the system drives or
loading software. Two more USB ports are located on the back of the
system.
The halt or NMI signal halts the processor, which effectively halts
the server. A NMI is the highest priority interrupt and cannot be
masked by software.
c
If the Halt/NMI button is pressed, the NMI signal locks the
system and the system must be restarted to clear the
interrupt.
Preforms a soft reset when pressed. Do not use this button unless the
system has had a fatal error and you need to restart. A soft reset
restarts the system; it clears all active program memory (you lose
unsaved work) and shuts down all active programs.
