APDSMW Manual.qxp_Layout 1 29/01/2016 13:01 Page 3

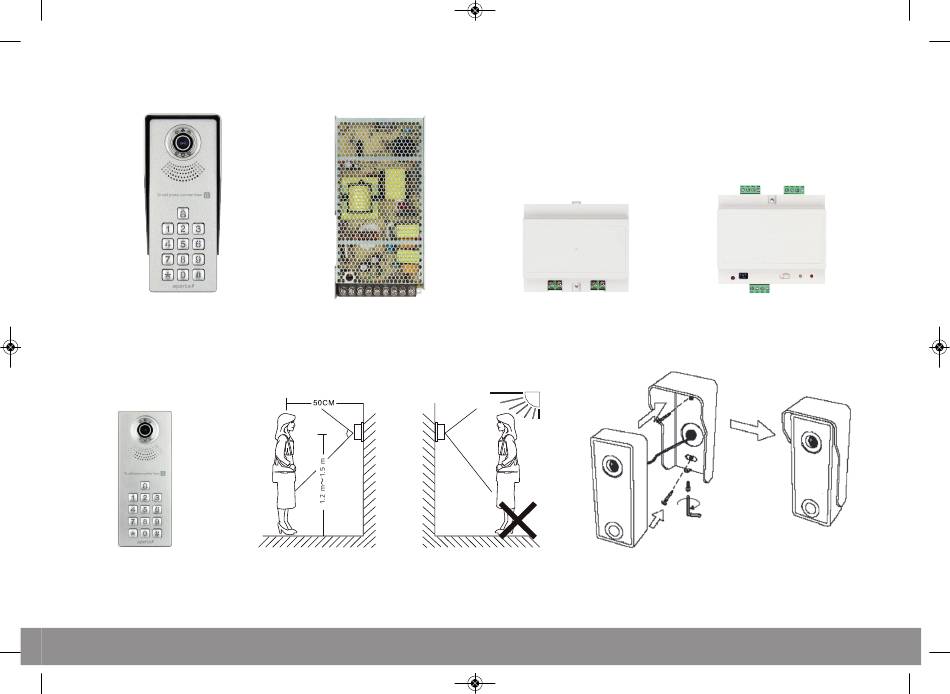

System Components
APDSMW
APPOWMW
APSEPMW
APBC4MW
Multi-Way Door Station
System Power Supply Unit
Power Supply Seperator
System Branch Controller
Installation
90 。
Site the door station a
The camera needs to point in
Avoid areas of
Surface mount the sunshield of the door station and
recommended 1.5 meters from
the direction of where a visitor
high sunlight and
connect the system cabling. Mount the camera to the
the ground, or to suit application.
will stand during operation.
noise levels.
sunshield by fixing with the supplied hex screw.
3
